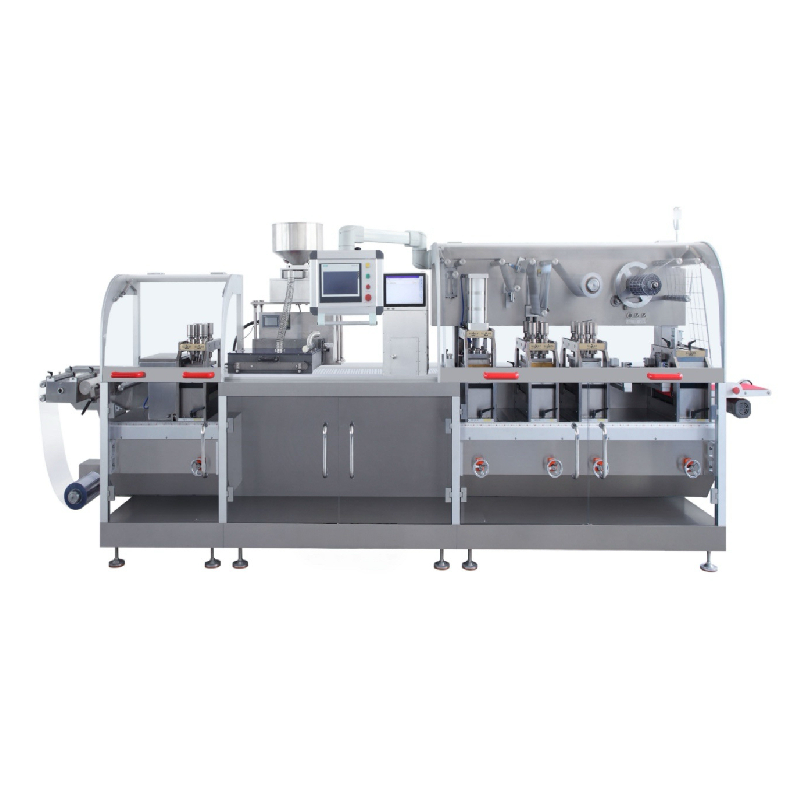

Capsule/Tablet Blister Packing Machine
Capsule/Tablet Blister Packing Machine
Specifications
Model Number :
DPP260
Packing material :
ALU-PVC/ALU-ALU
Payment Terms :
T/T
Power :
2.2KW
Packaging Details :
Fumigation-free plywood
Delivery Time :
20 business days
Features :
Pharmaceutical Capsule/Tablet Blister Packing Machine
Certification :
CE
Capacity :
About 120 blisters/minute
Customizationoptions :
Available based on product and packaging requirements
Powersupply :
220V/380V, 50Hz/60Hz
Industry :
Pharmaceutical,food,nutrition
Maintenance :
Easy maintenance with modular design
Afrer sale service :
24hours in 7 days online support
Place of Origin :
Shanghai,China
Traction Stroke :
Standard 20—120mm
Brand Name :
TIWIN INDUSTRY
Material :
SUS316 stainless steel
Userinterface :
Touchscreen HMI
Description
Capsule/Tablet Blister Packing Machine

Automated packaging system designed for nutrition applications, providing efficient and reliable blister packaging solutions for capsules and tablets.

Working Process
  1. PVC/PVDC/PET/PS/cold-forming aluminum foil unwinding
  2. Material preheating station
  3. Blister forming
  4. Vibration rail-type feeder
  5. Missing-material detection (vision system) - optional
  6. Heat sealing mechanism (with print registration function)
  7. Batch number embossing mechanism (independent)
  8. Tear-line perforation/creasing station (independent)
  9. Servo-driven web indexing (with aluminum alloy guide rails)
  10. Punching/cutting
  11. Finished product conveyor
  12. Waste packing material collection
Technical Specifications
Model DPP280
Blanking Frequency 10-35 times/minute
Max. Capacity 4 pcs each time
Capacity Approximately 120 blisters/minute
Forming Area Max. 260x120mm
Traction Stroke Standard 20-120mm (Customized up to 160mm)
Blister Size 58x110mm
Each Blister Product Quantity Customized
Packing Material PVC: 0.15-0.5mm × 280mm
ALU Foil: 0.02-0.035mm × 280mm
Dialysis paper: 50-100g × 280mm
Inner Diameter of Roll 70 to 76mm
Heating Consumption Forming heating: 1.5KW / Sealing heating: 1.5KW
Main Motor Power 2.2KW
Air Pump Capacity >0.2m³ (Self-provided) pressure: 0.4-0.6Mpa
Mold Cooling Tap water or circulating water: 30L/h
Countertop Length 1500mm
Machine Dimension 4500x850x1800mm (L×W×H)
Net Weight 3000kg
Key Features
  • PLC with HMI interface for easy operation and monitoring
  • Equipped with safety guarding device - forming, heat sealing, and punching workstations feature upward-opening safety covers
  • Main drive section features German-brand PLC system with durable splined main shaft design (8-groove, 45mm diameter) for smooth operation and long service life
  • Traction section utilizes ABB servo motor for smooth, precise material feeding with intelligent stroke adjustment and automatic print registration
  • PVC and aluminum foil conveying systems controlled by proximity sensors with dedicated motors for accurate synchronization
  • Aluminum foil supply shaft employs air-expanding design for convenient operation
  • Precision-machined cantilevered worktable from single block of aluminum alloy
  • SUS304 stainless steel exterior compliant with GMP standards
  • Quick-release guide-rail mounting mechanism for fast mold changes
  • Rear-mounted main motor and drive components for reduced operational noise and clean front appearance
Frequently Asked Questions
1. What is a blister packing machine?
A blister packing machine is an automated packaging system used to seal products inside preformed plastic cavities (blisters) with backing materials such as aluminum foil, paperboard, or plastic film. It is commonly used in pharmaceutical, food, cosmetic, and consumer goods industries.
2. What products can be packed with a blister packing machine?
Blister packing machines can package a wide range of products, including tablets and capsules, medical devices, food products, batteries, electronic accessories, cosmetics, and small consumer goods.
3. What types of blister packaging are supported?
Common blister packaging types include PVC/Aluminum blister packs and Alu-Alu blister packs.
4. What is the production capacity of the machine?
Production capacity depends on the machine model, product size, and packaging format. Typical output ranges from 100 to 120 pieces per minute.
5. Can the machine handle different product sizes?
Yes. Most blister packing machines support multiple formats and can be adjusted or equipped with change parts to accommodate different product dimensions.
6. How long does format changeover take?
Format changeover typically takes 15-60 minutes, depending on machine design and operator experience.
7. Does the machine support custom packaging designs?
Yes. Customized blister dimensions, cavity shapes, printing layouts, and tooling are commonly available.
8. What utilities are required for installation?
Typical requirements include electrical power supply, compressed air, and optional cooling water system. Actual requirements depend on machine specifications.
9. Is operator training provided?
Most manufacturers provide installation guidance, operator training, maintenance instructions, and technical support.
10. What maintenance is required?
Regular maintenance includes cleaning forming and sealing areas, lubricating moving parts, checking heaters and sensors, and replacing wear parts as needed.
11. Does the machine comply with GMP or CE standards?
Many pharmaceutical-grade machines are designed to comply with GMP, CE, or other regional certification requirements.
12. How can I choose the right blister packing machine?
Consider product type and dimensions, required output capacity, packaging material, automation level, available factory space, and regulatory requirements.
