50L Powder Jar Filling Machine SUS304 SUS316 Jar Packaging Machine
50L Powder Jar Filling Machine SUS304 SUS316 Jar Packaging Machine
Specifications
Capacity :
15-30 bottles per minute
Model Number :
TW-Q1-D160
Delivery Time :
20 business days
Material :
SUS304 stainless steel (SUS316 optional)
Userinterface :
Touchscreen HMI
Maintenance :
Easy maintenance with modular design
Afrer sale service :
24hours in 7 days online support
Optional :
Screw feeder for automatic hopper loading, dust extraction system
MOQ :
1 Set
Application :
Protein powder filling (whey, casein, plant-based)
Certification :
CE
Payment Terms :
T/T
Supply Ability :
50 Sets per Month
Customizationoptions :
Available based on product and packaging requirements
Powersupply :
220V/380V, 50Hz/60Hz
Dosing range :
10-5000g
Packaging Details :
Export-grade plywood case with vacuum-sealed moisture barrier and foam protection
Brand Name :
TIWIN INDUSTRY
Accuracy :
≤±1%
Place of Origin :
Shanghai,China
Industry :
Pharmaceutical,food,nutrition
Description

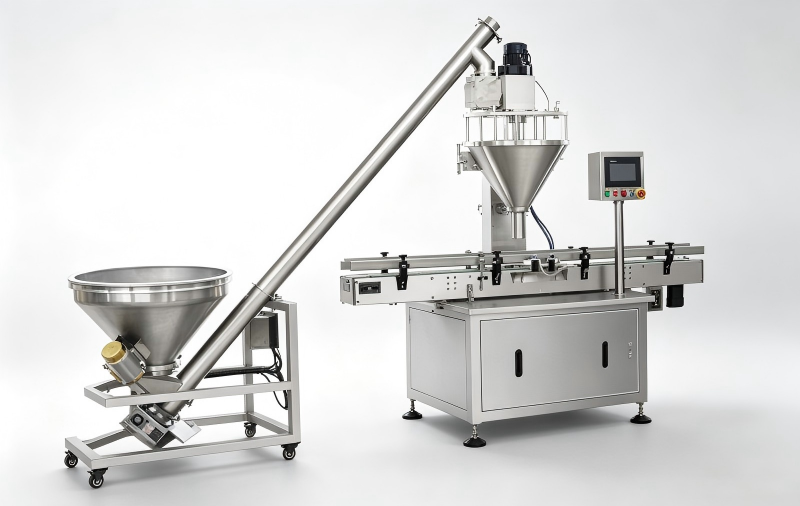

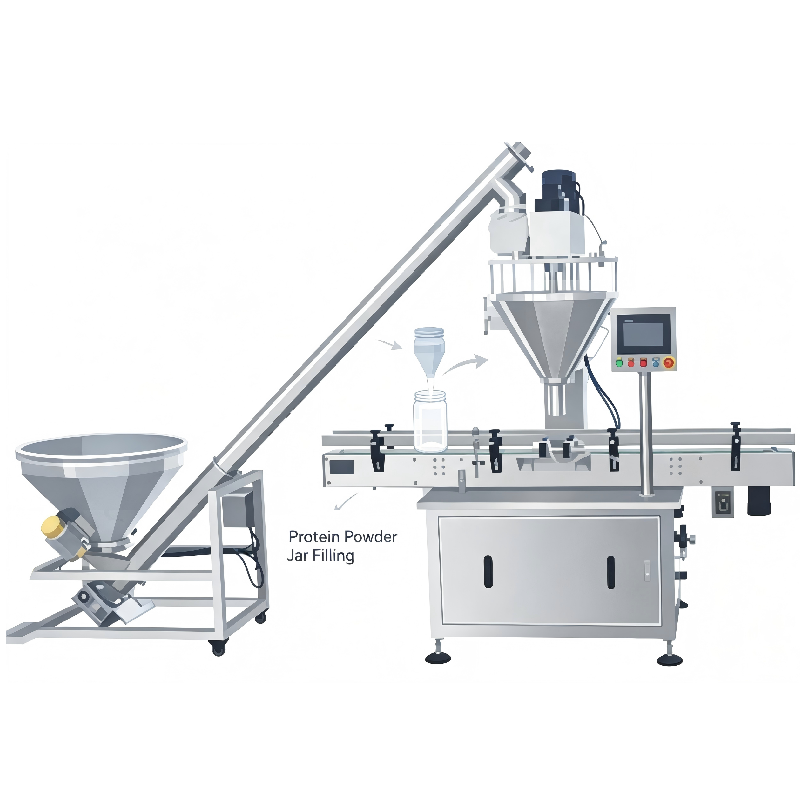

TW-Q1-D160 Automatic Auger Protein Powder Jar Filling Machine
TW-Q1-D160 Automatic Auger Protein Powder Jar Filling Machine SUS304 15-30 Bottles/Min 50L Hopper

This automatic protein powder jar filling machine is purpose-built for high-accuracy dosing of whey protein, casein, plant-based protein, and other nutritional protein powders. Designed with an auger filling system and PLC-controlled servo drive, it delivers consistent fill weights across a wide range of container sizes with minimal product waste.

The machine features a 50L stainless steel hopper, enclosed filling station with optional dust extraction, and a motorized chain conveyor for seamless integration into your packaging line. Ideal applications include whey protein concentrate, soy protein isolate, pea protein, collagen peptides, mass gainer blends, and BCAA powder formulations.

The SUS304 contact surfaces ensure compliance with food-grade hygiene standards, making it the preferred choice for sports nutrition manufacturers, contract packagers, and private label supplement brands worldwide.

Technical Specifications
Model TW-Q1-D160
Application Protein powder (whey, casein, plant-based, blends)
Dosing Mode Direct dosing by auger
Suitable Bottle/Jar Size Φ50-130mm, Bottle height 50-250mm
Hopper Capacity 50L
Filling Weight Range 10-5000g
Filling Accuracy ≤100g: ≤±2%; 100-500g: ≤±1%; ≥500g: ≤±0.5%
Filling Speed 15-30 bottles/minute
Voltage 380V/3P 50Hz
Total Power 1.5kw
Total Weight 500kg
Overall Dimensions 2000*800*2100mm
Construction Material SUS304 stainless steel (SUS316 optional)
Control System PLC with 7-inch HMI touchscreen
Key Features
  • Auger dosing system for high-precision protein powder filling
  • SUS304 stainless steel construction with sanitary-grade surface finish
  • PLC control with intuitive 7-inch touchscreen HMI
  • Automatic container positioning via independent motorized chain conveyor
  • Enclosed filling station with optional dust collection system for clean operation
  • Tool-free disassembly of hopper and auger for rapid sanitation between batches
  • Adjustable filling parameters for whey, casein, plant protein, and blended formulations
  • Compatible with plastic jars, glass jars, PET bottles, and metal cans
  • Quick-change auger tooling for different fill weight ranges
Frequently Asked Questions
Q1: What types of protein powder can this machine handle?
The TW-Q1-D160 is optimized for whey protein concentrate, whey isolate, casein, soy protein, pea protein, collagen peptides, mass gainer blends, BCAA powders, and creatine monohydrate. The auger parameters can be adjusted for different powder flow characteristics.
Q2: How does the auger system ensure filling accuracy for sticky protein powders?
The servo-driven auger with precision motor control compensates for variations in powder density and flowability. Agitator blades inside the hopper prevent bridging and ensure consistent powder feed to the auger, achieving ±1% accuracy on most protein formulations.
Q3: Is the machine suitable for food-grade production?
Yes. All product contact parts are made of SUS304 stainless steel with sanitary welds and polished surfaces. The design meets GMP and HACCP requirements for food supplement manufacturing facilities.
Q4: Can this machine be integrated into an existing production line?
Absolutely. The motorized chain conveyor is designed for seamless connection with upstream bottle unscramblers and downstream capping machines, induction sealers, labeling machines, and checkweighers to form a fully automatic protein powder packaging line.
Q5: What container types are compatible?
The machine handles plastic HDPE/PET jars, glass jars, composite cans, and metal tins ranging from Φ50mm to Φ130mm in diameter and 50mm to 250mm in height.
Q6: How quickly can I change between different protein powder products?
Recipe parameters (fill weight, auger speed, conveyor speed) are stored in the PLC and can be recalled via the touchscreen in seconds. Physical changeover of the auger and hopper cleaning takes approximately 15-20 minutes.
Q7: Do you provide installation and after-sales support?
Yes. We provide remote installation guidance, operation training videos, technical support, spare parts catalog, and online after-sales service. On-site overseas installation and commissioning is available upon request.
Q8: What about dust control during protein powder filling?
An optional dust extraction hood with HEPA filtration is available to capture airborne protein powder particles at the filling station, maintaining a clean production environment and minimizing product loss.
