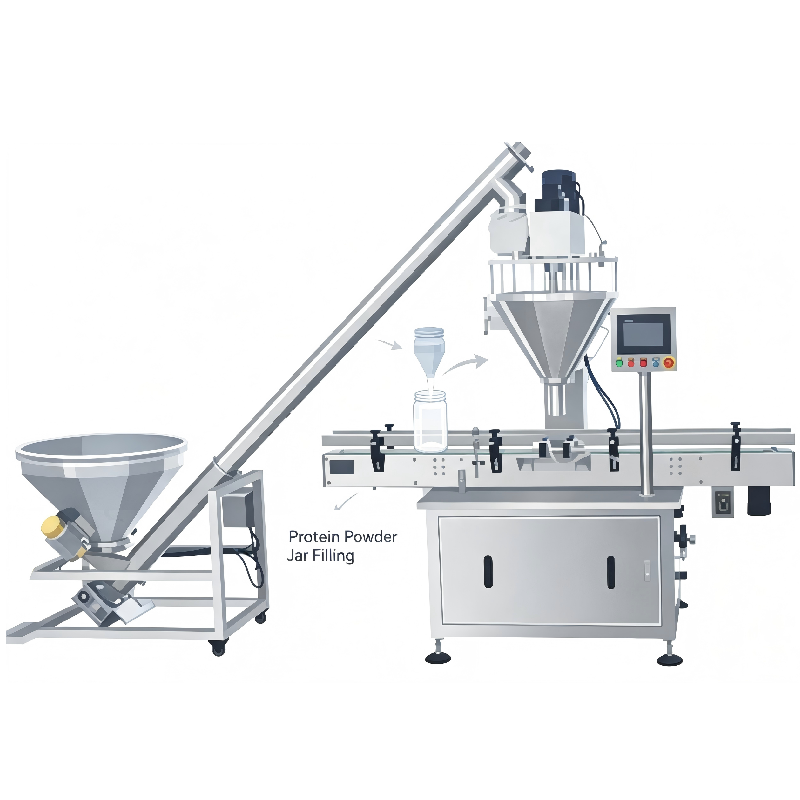

Auger Powder Jar Filling Machine 15Bottles/Min - 30 Bottles/Min Nutrition Filling Machine
Auger Powder Jar Filling Machine 15Bottles/Min - 30 Bottles/Min Nutrition Filling Machine
Specifications
Supply Ability :
50 Sets per Month
Capacity :
15-30 bottles per minute
Brand Name :
TIWIN INDUSTRY
Certification :
CE
Maintenance :
Easy maintenance with modular design
Afrer sale service :
24hours in 7 days online support
Optional :
Screw feeder for automatic hopper loading, CIP cleaning nozzles
MOQ :
1 Set
Material :
SUS304 stainless steel (SUS316 optional)
Userinterface :
Touchscreen HMI
Customizationoptions :
Available based on product and packaging requirements
Powersupply :
220V/380V, 50Hz/60Hz
Payment Terms :
T/T
Packaging Details :
Export-grade plywood case with vacuum-sealed moisture barrier and foam protection
Application :
Nutrition powder filling (vitamin blends, meal replacements, superfoods)
Place of Origin :
Shanghai,China
Delivery Time :
20 business days
Accuracy :
≤±1%
Model Number :
TW-Q1-D160
Industry :
Pharmaceutical,food,nutrition
Dosing range :
10-5000g
Description
TW-Q1-D160 Automatic Auger Nutrition Powder Jar Filling Machine
TW-Q1-D160 Automatic Auger Nutrition Powder Jar Filling Machine SUS304 15-30 Bottles/Min 50L Hopper
This automatic nutrition powder jar filling machine delivers precision dosing for a diverse range of dietary supplement powders, including vitamin-mineral premixes, meal replacement powders, green superfood blends, fiber supplements, electrolyte powders, and infant formula. Engineered with a servo-driven auger metering system and PLC control, it ensures consistent fill accuracy across varying powder densities while minimizing segregation and dust generation.
The machine features a 50L stainless steel hopper with integrated agitator, enclosed filling station, and independent motorized chain conveyor. Its sanitary SUS304 construction meets GMP and FSSC 22000 requirements, making it ideal for nutraceutical manufacturers, dietary supplement contract packagers, and health food brands targeting global markets.
Technical Specifications
Model TW-Q1-D160
Application Nutrition powder (vitamin blends, meal replacements, superfoods, fiber, electrolytes)
Dosing Mode Direct dosing by auger
Suitable Bottle/Jar Size Φ50-130mm, Bottle height 50-250mm
Hopper Capacity 50L
Filling Weight Range 10-5000g
Filling Accuracy ≤100g: ≤±2%; 100-500g: ≤±1%; ≥500g: ≤±0.5%
Filling Speed 15-30 bottles/minute
Voltage 380V/3P 50Hz
Total Power 1.5kw
Total Weight 500kg
Overall Dimensions 2000*800*2100mm
Construction Material SUS304 stainless steel (SUS316 optional)
Control System PLC with 7-inch HMI touchscreen
Key Features
  • Auger dosing with closed-loop weight feedback for nutrition powder accuracy
  • SUS304 stainless steel construction with sanitary finish for GMP-compliant production
  • PLC touchscreen control with multi-recipe storage for quick product changeovers
  • Integrated agitator prevents powder bridging and ensures uniform density feed
  • Enclosed filling station with dust extraction port for operator safety and cleanliness
  • Independent motorized chain conveyor for smooth container transport and positioning
  • Compatible with a wide range of powders: vitamin blends, meal replacements, green superfoods, fiber, and electrolyte formulations
  • Tool-free hopper and auger disassembly for rapid sanitation between production runs
  • Optional screw feeder for automatic hopper refill from bulk powder bins
Frequently Asked Questions
What nutrition powder types can this machine fill?
The TW-Q1-D160 handles vitamin-mineral premixes, meal replacement powders, green superfood blends, spirulina, chlorella, fiber supplements (psyllium husk, inulin), electrolyte powders, collagen peptides, pre-workout formulas, and infant formula base powders. Parameters are adjustable for each formulation's unique flow characteristics.
Is the machine compliant with GMP and food safety standards?
Yes. The machine is built with SUS304 stainless steel contact surfaces, sanitary welds, and polished finishes. The design supports GMP, HACCP, and FSSC 22000 compliance for dietary supplement manufacturing. SUS316 upgrade is available for enhanced corrosion resistance.
How does the machine handle powders with poor flowability?
The integrated hopper agitator and auger design actively prevent bridging and rat-holing of cohesive powders. For extremely challenging materials, custom auger geometries and vibration-assisted hoppers can be configured to maintain consistent flow.
What container sizes are compatible?
The machine handles jars and bottles from Φ50mm to Φ130mm in diameter and 50mm to 250mm in height. Change parts are available for unusual container shapes and sizes.
How do you control cross-contamination between batches?
The hopper, auger, and product contact parts are designed for tool-free disassembly and can be fully removed for washdown cleaning. Optional CIP (Clean-in-Place) nozzles can be integrated for automated cleaning cycles.
Is operator training provided?
Yes. We provide comprehensive operation and maintenance manuals, video training materials, and remote technical support. On-site installation, commissioning, and operator training by our engineers is available worldwide.
Can the machine connect to upstream and downstream equipment?
Absolutely. Standard I/O interfaces allow connection with bottle unscramblers, capping machines, induction sealers, labeling machines, checkweighers, and cartoning machines for a fully automated nutrition powder packaging line.
