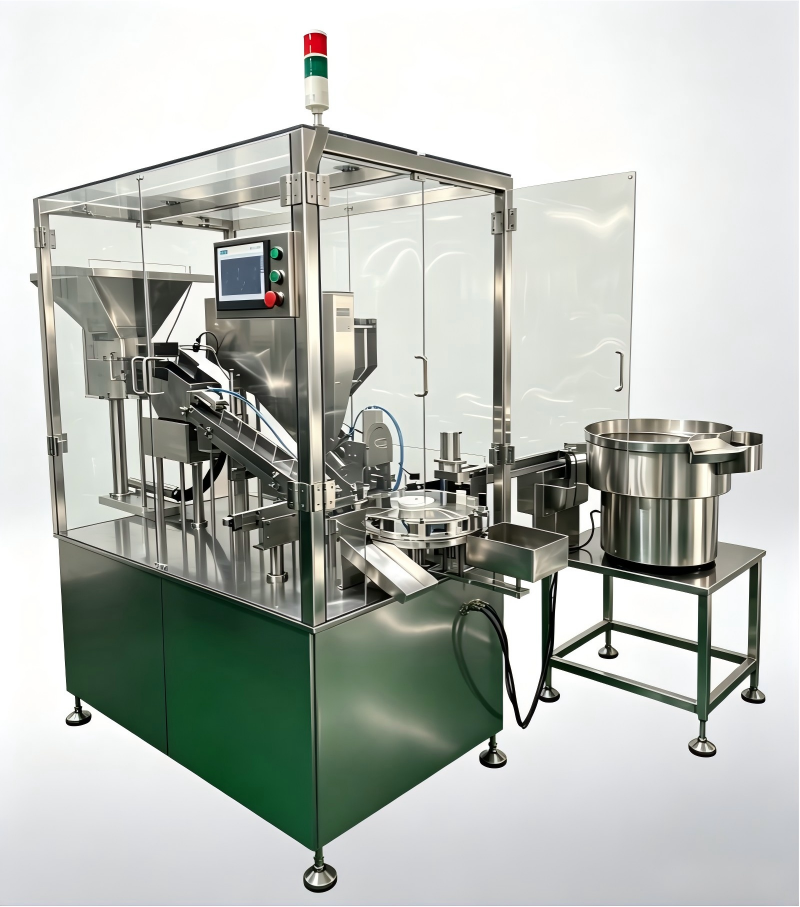

Automatic Effervescent Tablet Tube Filling Machine 2kW CE Filling And Labeling Machine
Automatic Effervescent Tablet Tube Filling Machine 2kW CE Filling And Labeling Machine
Specifications
Tube Diameter :
15-30mm
MOQ :
1 Set
Power :
2 kW
Userinterface :
Touchscreen HMI
Afrer sale service :
24hours in 7 days online support
Brand Name :
TIWIN INDUSTRY
Delivery Time :
20 business days
Voltage :
380V/3P 50Hz
Industry :
Pharmaceutical,food,nutrition
Payment Terms :
T/T
Powersupply :
220V/380V, 50Hz/60Hz
Certification :
CE
Label Type :
Wrap-around self-adhesive label
Material :
SUS304 frame, SUS316 tablet-contact parts
Place of Origin :
Shanghai,China
Weight :
620 kg
Customizationoptions :
Available based on product and packaging requirements
Supply Ability :
18 Sets per Month
Tube Length :
80-150mm
Filling Quantity :
10-15 pcs per tube
Maintenance :
Easy maintenance with modular design
Packaging Details :
Fumigation-free plywood case with moisture-barrier wrapping and custom foam inserts for labeling module protection
Model Number :
TWL-40A
Capacity :
30-35 tubes per minute
Description
TWL-40A Automatic Effervescent Tablet Tube Filling and Labeling Machine
TWL-40A Automatic Effervescent Tablet Tube Filling and Labeling Machine 35 Tubes/min 2kW CE
The TWL-40A is an integrated effervescent tablet tube filling and labeling machine that combines automatic tablet counting, tube filling, capping, and wrap-around label application into a single synchronized system. Designed for manufacturers seeking retail-ready tube packaging without separate labeling equipment, the TWL-40A delivers complete packaged tubes at 30-35 tubes per minute.
Featuring a synchronized labeling station with precision label positioning and wrinkle-free application, the TWL-40A eliminates the need for off-line labeling operations. The PLC control system coordinates all stations with automatic alarm functions for empty tablet, tube, cap, or label conditions, ensuring consistent quality output.
Technical Specifications
Model TWL-40A
Tube Diameter 15-30mm
Tube Length 80-150mm
Maximum Capacity 30-35 tubes/minute
Filling Quantity 10-15 pcs per tube
Label Type Wrap-around self-adhesive label
Compressed Air 0.5-0.6MPa
Voltage 380V/3P 50Hz
Power 2 kW
Weight 620 kg
Key Features
  • Integrated Labeling Station: Built-in wrap-around label applicator with servo-driven label feed, optical label gap sensor, and precision roller application system delivers wrinkle-free label placement synchronized with tube output speed.
  • Single-System Operation: Combines counting, filling, capping, and labeling into one machine, eliminating the cost and floor space of separate labeling equipment while reducing product handling between operations.
  • Synchronized PLC Control: Central PLC coordinates tablet counting, tube indexing, cap placement, and label application timing for smooth product flow without jams or misfeeds across all stations.
  • Automatic Label Detection: Optical sensor monitors label presence and position with automatic machine pause on label absence or misalignment, preventing unlabeled or incorrectly labeled product from reaching the output conveyor.
  • GMP-Compliant Construction: SUS316 stainless steel on all tablet-contact surfaces with SUS304 frame, fully enclosed labeling area with transparent safety guarding, and tool-free access for label roll changeover and cleaning.
Frequently Asked Questions
What label sizes does the TWL-40A support?
The labeling station accommodates wrap-around self-adhesive labels with widths from 30-140mm and lengths from 40-200mm, covering standard effervescent tablet tube label formats. Custom label guide assemblies are available for non-standard sizes.
Can the labeling function be bypassed for plain tube production?
Yes, the labeling station can be deactivated via the PLC touchscreen for production of plain tubes. The machine continues counting, filling, and capping operations while bypassing the label application station without any mechanical changes.
What after-sales support is available?
We provide complete installation and commissioning, operator training for both filling and labeling operations, spare parts including label sensors and feed rollers, remote support, and on-site service as required.
