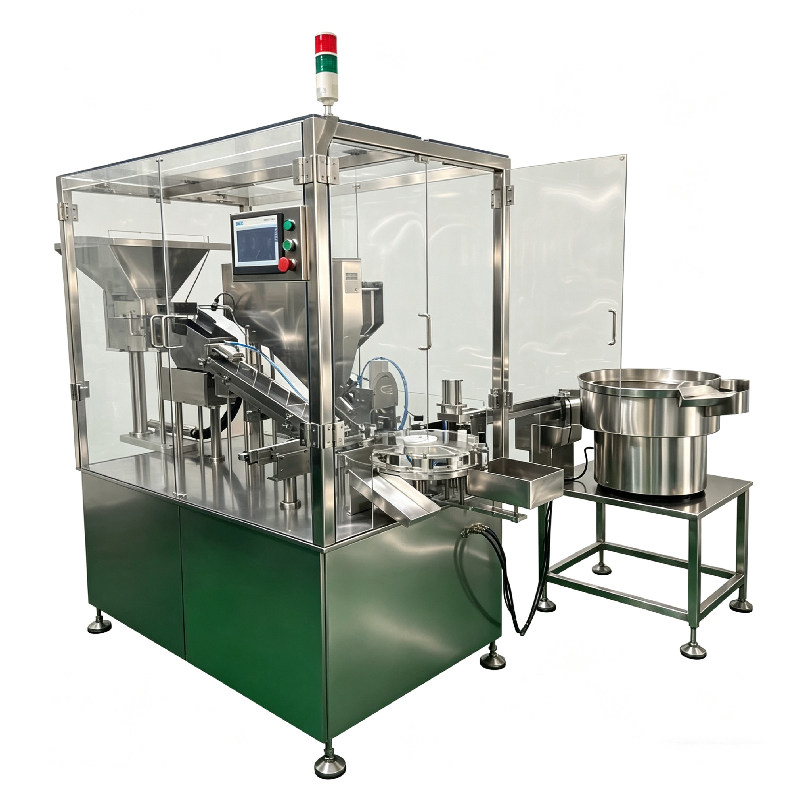

1.5kW Effervescent Tablet Tube Filling Machine 0.5MP - 0.6MP Filling And Capping Machine
1.5kW Effervescent Tablet Tube Filling Machine 0.5MP - 0.6MP Filling And Capping Machine
Specifications
Customizationoptions :
Available based on product and packaging requirements
Powersupply :
220V/380V, 50Hz/60Hz
Model Number :
TWL-40A
Capacity :
30-40 tubes per minute
Payment Terms :
T/T
Opitonal :
Tube labeling machine
Userinterface :
Touchscreen HMI
Packaging Details :
Fumigation-free plywood
Maintenance :
Easy maintenance with modular design
Afrer sale service :
24hours in 7 days online support
Delivery Time :
20 business days
Features :
Effervescent Tablet Tube Filling and Capping
Certification :
CE
Filling quntity :
10/15 pcs
Brand Name :
TIWIN INDUSTRY
Material :
SUS304 stainless steel
Place of Origin :
Shanghai,China
Tablet and tube filling method :
Automatic
Industry :
Pharmaceutical,food,nutrition
Description
Effervescent Tablet Tube Filling and Capping Machine
The TWL-40A Tablet Tube Filling and Capping Machine is designed for packaging larger, thinner tablets that are fed into tubes in a single overlapping row. The system utilizes PLC centralized control with fiber and photoelectric detection for stable performance and reliable automated operation. It features automatic alarm and shutdown functions for empty tablet, bottle, or cap conditions. All tablet-contact components are constructed from superior 316 stainless steel, meeting GMP requirements.
Technical Specifications
Model TWL-40A
Tube Diameter 15-30mm
Tube Length 80-145mm
Maximum Capacity 35-40 tubes/minute
Maximum Loading Tablets 10-20pcs per tube
Compressed Air 0.5-0.6MP
Air Consumption 0.28 m³/minute
Voltage 380V/3P 50Hz
Power 1.5kW
Overall Dimensions 2400*1600*1800 mm
Weight 480kg
Key Features
  • Cap Vibrating System: Manual cap loading to hopper with automatic cap arrangement and plugging via vibrating system
  • Tablet Feeding System: Manual tablet loading to hopper with automatic vibrating and channel feeding for packing preparation
  • Tube Feeding Unit: Manual tube loading to hopper with automatic shaking system for tube delivery (manual tube direction verification required)
  • Cap Pushing Unit: Automatic cap pushing and tube closing after tablet loading with safety features (no tablet/no tube = no capping)
  • Electronic Control Section: PLC-controlled operation with cylinder and stepper motor integration, featuring automatic multi-function alarm system
Frequently Asked Questions
What is an effervescent tablet tube filling machine?
An effervescent tablet tube filling machine is an automated packaging system designed to count, stack, and fill effervescent tablets into tubes, followed by capping and discharge for storage and transportation.
What products can be handled by the machine?
The machine is suitable for:
  • Effervescent tablets
  • Vitamin tablets
  • Nutritional supplement tablets
What tube materials are compatible?
The machine typically supports:
  • Plastic tubes (PP, PE)
  • Composite tubes
  • Customized packaging tubes
Compatibility depends on machine configuration.
What tube sizes can the machine process?
Most machines support various tube diameters and lengths through change parts or adjustable settings. Customized formats are usually available.
Does the machine include tablet counting and feeding?
Yes. The machine is generally equipped with an automatic tablet feeding, counting, and filling system to ensure accurate loading.
How does the machine prevent tablet breakage?
The machine is designed with controlled feeding and gentle conveying mechanisms to minimize tablet damage and maintain product integrity.
Does the machine support automatic tube feeding and capping?
Yes. Fully automatic models usually integrate:
  • Tube feeding
  • Tablet counting
  • Tube filling
  • Cap feeding
  • Capping
  • Finished product discharge
Can the machine be customized?
Yes. Customization options may include:
  • Tube dimensions
  • Tablet specifications
  • Production speed
  • Feeding systems
  • Integration with labeling or cartoning lines
How do I choose the right effervescent tablet tube filling machine?
Consider the following:
  • Tablet size and shape
  • Tablets per tube
  • Required production capacity
  • Tube specifications
  • Automation level
  • Compliance requirements
