Automatic Liquid Sachet Packaging Machine 20-60 Bags/Min 380V
Automatic Liquid Sachet Packaging Machine 20-60 Bags/Min 380V
Specifications
Brand Name :
SED Pharma
Model Number :
SED-200YGD-G
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T,L/C,MoneyGram,Cash
Supply Ability :
30 Sets per month
Delivery Time :
35 Days after receiving the deposit
Packaging Details :
Wooden Case
Name :
Sachet Packaging Machine
Dimension(L*W*H) :
L2000 * W1570 * H1600mm
Power :
380V 50HZ 3.5kw
Weight :
1500kg
Key word :
Honey Sachet Packaging Machine, Bag Packaging Machine, Liquid Bag Packaging Machine
Description
Product Description
This equipment uses pre-made packaging bags, featuring attractive packaging patterns and excellent sealing quality. The machine is designed with
waterproofing, making cleaning and sanitization more convenient. It is equipped with an adjustable bag warehouse, which can automatically adjust
the width of the machine clamp with one click according to the production and packaging specifications. Adopting vertical bag feeding and an internal
cam lever mode, it has a 304 stainless steel cam piece design that replaces the old-style cam, ensuring more stable operation of the turntable, longer
service life, and good waterproof performance. The gear opening and closing angle controls the size of the machine clamp, and the display screen enables
automatic one-click adjustment, making the operation more convenient and simple.

Key Features

1. According to the requirements of the production materials, it is recommended to use the SED-200YGD-G bag-feeding packaging machine. This model has a bag width of 60-200mm and a bag length of 100-350mm, which can meet the requirements.
2. Bag warehouse: An adjustable bag warehouse, which can automatically adjust the width of the machine clamp with one click according to the production and packaging specifications.
3. Bag feeding: Vertical bag feeding with an internal cam lever mode.
4. Turntable: Designed with 304 stainless steel cam pieces, replacing the old-style cam, the turntable operates more stably, has a longer service life and good waterproof performance.
5. Machine clamp: The gear opening and closing angle controls the size of the machine clamp, and the display screen enables automatic one-click adjustment, making the operation more convenient and simple.
6. Heat sealing: Straight pattern + mesh pattern, with two sealing processes, resulting in an attractive sealing effect.


Technical Specifications
Model

SED-200YGD-G
Speed 20-60 bag/min
Power

380V 50HZ 3.5kw
Suitable air compressor 0.3m³/min
Weight 1500kg
Dimensions (L*W*H)

L2000 * W1570 * H1600mm

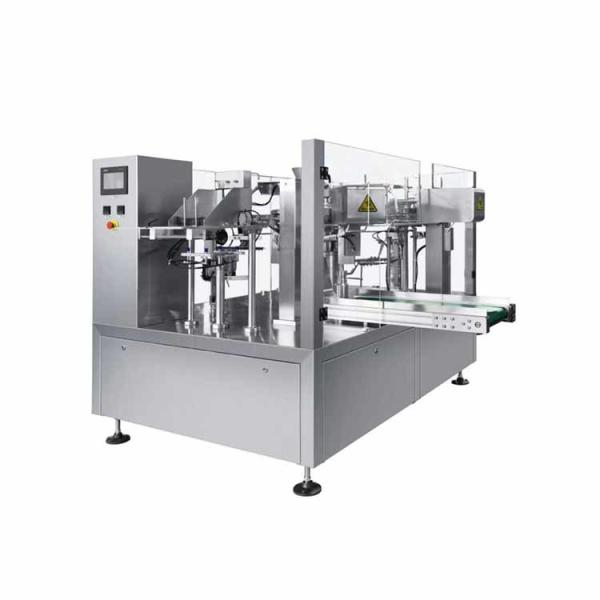

Product Images
