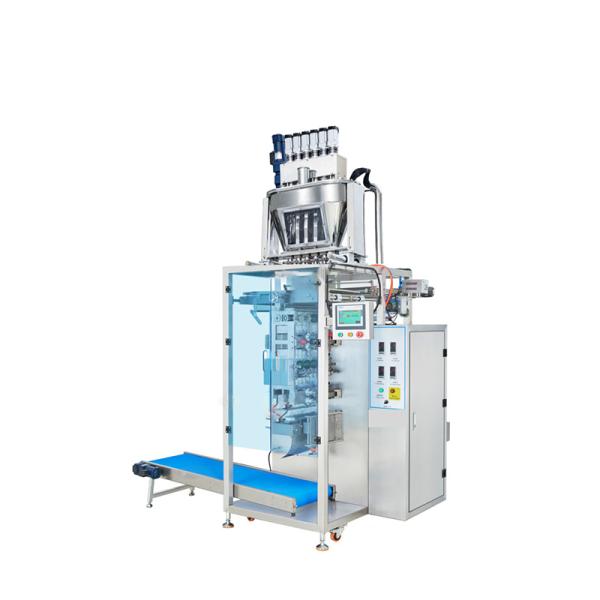

7 Row Back Sealing Packaging Machine 1400x1500x2750mm 1500KG
7 Row Back Sealing Packaging Machine 1400x1500x2750mm 1500KG
Specifications
Brand Name :
SED Pharma
Model Number :
SED-1300-7FDB-X
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T,L/C,MoneyGram,Cash
Supply Ability :
30 Sets per month
Delivery Time :
35 Days after receiving the deposit
Packaging Details :
Wooden Case
Name :
Back Sealing Packaging Machine
Overall dimension :
1400*1500*2750mm
Power :
380V/50Hz 220V/50-60Hz
Weight :
1500KG
Key word :
Back Sealing Packaging Machine, Pouch Packing Machine, Multi Row Packaging Machine
Description
Automatic 7 Row Back Sealing Packaging Machine for Power Materials Packaging
This high-performance packaging machine is specifically designed for food applications, featuring advanced automation and durable construction for reliable operation.
Product Specifications
Attribute Value
Name Back Sealing Packaging Machine
Overall dimension 1400*1500*2750mm
Power 380V/50Hz 220V/50-60Hz
Weight 1500KG
Product Overview
The multi-lane screw metering heads of this device work alongside multi-lane vertical packaging machines, allowing for accurate execution of processes like measuring and filling. It is well-suited for measuring powdery and granular substances that are hard to flow or have extremely low fluidity—such as milk powder, rice flour, protein powder, powdery and granular additives, glucose, dyes, essences, spices, and more.
It utilizes a servo motor combined with a planetary reducer to power the long screw for measuring purposes. This setup comes with benefits including precise measuring accuracy, exact positioning, the ability to adjust measuring independently for each lane, and reliable performance. A height-adjusting handwheel is fitted to the device, making it easy to adjust the overall machine height; for materials that generate high levels of dust, a dust suction port is included, which supports the installation of a dust suction device to eliminate reverse dust.
The cutting die used for punching and shaping small bags after filling is equipped with automatic guiding, enabling straightforward adjustment. The device employs PLC and touchscreen control, guaranteeing easy operation and strong stability. The Chinese-English touchscreen clearly shows various working conditions, operation guidelines, fault conditions, production data, and other relevant information.
This device is compatible with packaging materials like composite films.

7 Row Back Sealing Packaging Machine 1400x1500x2750mm 1500KG

Keywords: Back Sealing Packaging Machine, Pouch Packing Machine, Multi Row Packaging Machine
