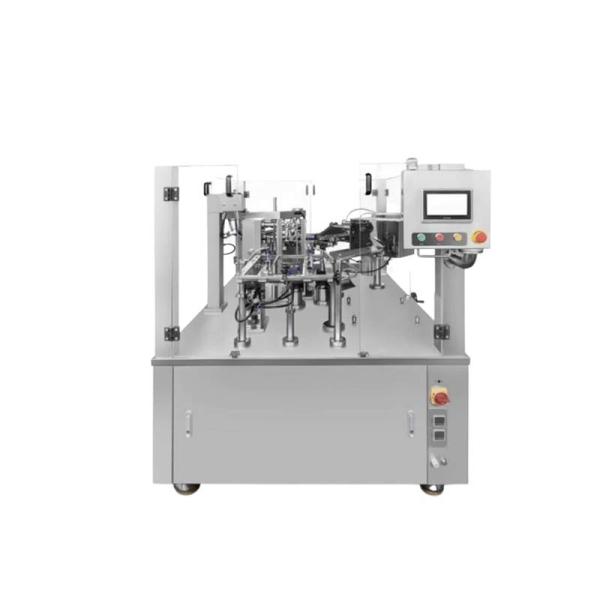

Automatic Sugar Sachet Packing Machine 60 Bags/Min
Automatic Sugar Sachet Packing Machine 60 Bags/Min
Specifications
Brand Name :
SED Pharma
Model Number :
SED-300FGD-J
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T,L/C,MoneyGram,Cash
Supply Ability :
30 Sets per month
Delivery Time :
35 Days after receiving the deposit
Packaging Details :
Wooden Case
Name :
Sachet Packaging Machine
Packing speed :
60 bags/min
Weight :
1000 kg
Air consumption :
≤0.4m³/min
Key word :
Sachet Packing Machine for Powder , Sugar Sachet Packing Machine,Pre-made Bag Packaging Machine
Description
Product Description

The equipment uses mechanical bag opening, with cam curve controlling the feedback time of the bag opening signal. The entire cantilever is made of

stainless steel sheet metal, which is easy to clean, lightweight, and has good stability, being less prone to vibration. The structure is reinforced to make

the machine clamp more sturdy and less likely to deform, thus more durable. This avoids the phenomenon of sealing wrinkles caused by the machine

clamp's deformation that fails to hold the product. The copper sleeves of the opening clamp are replaced with deep groove ball bearings, making the

structure more stable and durable. It adopts horizontal heat sealing, which facilitates the hygiene cleaning after filling powdery and liquid materials

without any hygiene dead corners. When used for outer packaging, it can achieve a longer sealing distance, which is convenient to avoid theairplane

holes at the sealing part of the bag. With a dual-axis transmission design, the main motor is driven by a reduction motor. The mounted framemeets the

processing technology requirements, with small overall deformation and higher precision.


Technical Specifications
Model

SED-300FGD-J
Bags size W:100-300 mm;L: 150-450 mm
Filling Volume 1500g
Dimensions 1724 mm*1486 mm*1600mm
Driving Power Source 380V3 phaseSlines50HZ ( other power supply can be customized)
Total powver 2.62 kw
Product Images

Automatic Sugar Sachet Packing Machine 60 Bags/Min
