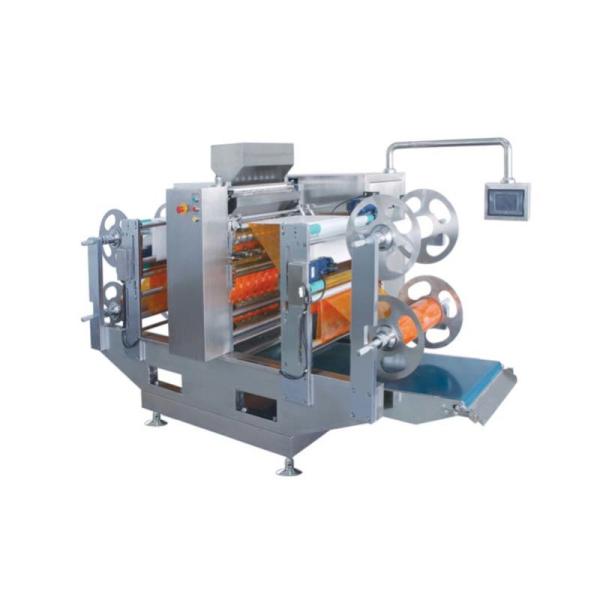

Back Sealing Packaging Machine 18000mm 5.5KW Automatic Packing
Back Sealing Packaging Machine 18000mm 5.5KW Automatic Packing
Specifications
Brand Name :
SED Pharma
Model Number :
SED-450-8KDB-A
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T,L/C,,Cash
Supply Ability :
30 Sets per month
Delivery Time :
35 Days after receiving the deposit
Packaging Details :
Wooden Case
Name :
Back Sealing Packaging Machine
Overall dimension :
1400mm*1500mm*2200mm
Power :
380V/50HZ
Weight :
1500KG
Key word :
Back Sealing Packaging Machine,Pouch Packing Machine ,Particle Stick Packing Machine
Description
Automatic Small Particle Bag Back Sachet Sealing Packaging Machine
Technical Specifications
Attribute Value
Name Back Sealing Packaging Machine
Overall dimension 1400mm*1500mm*2200mm
Power 380V/50HZ
Weight 1500KG
Keywords: Back Sealing Packaging Machine, Pouch Packing Machine, Particle Stick Packing Machine
Product Overview

The SED-450-8KDB-A is a fully servo-driven packaging machine featuring PLC control, stepless speed regulation, and intuitive human-machine interface operation. Designed for low noise and user-friendly performance.

  • Advanced Motor System: Five independent servo motors power each station including vertical sealing, horizontal sealing with easy-tear notch, secondary horizontal sealing with batch number printing, dotted-line cutter, and cutting knife
  • Precision Alignment: Imported Banner components ensure accurate alignment with deviation range of 0.5mm to 1mm
  • Quick Adjustment: Bag length can be adjusted via touchscreen in under 1 minute with automatic station alignment
  • Batch Number Printing: Independent servo-driven system delivers clear, accurately positioned batch numbers
  • Temperature Control: Omron intelligent controllers maintain sealing temperature with ±1°C accuracy
  • Precision Metering: Triangular measuring cups ensure high accuracy with adjustable volume settings
  • Automatic Correction: Optical sensor system maintains film alignment with 0.5mm to 1mm accuracy
  • GMP Compliance: All material-contact parts use 316L stainless steel; other components use 304 stainless steel or anti-corrosion treatment

This equipment can be integrated into automated production lines for complete packaging solutions including feeding, bag making, printing, cutting, and cartoning operations.

Ideal Applications: Packaging of loose, non-sticky powdery and granular materials in pharmaceutical, food, pesticide, and daily chemical industries. Suitable for products like small pills, sugar, salt, cereal, seeds, and Chinese medicine granules.
