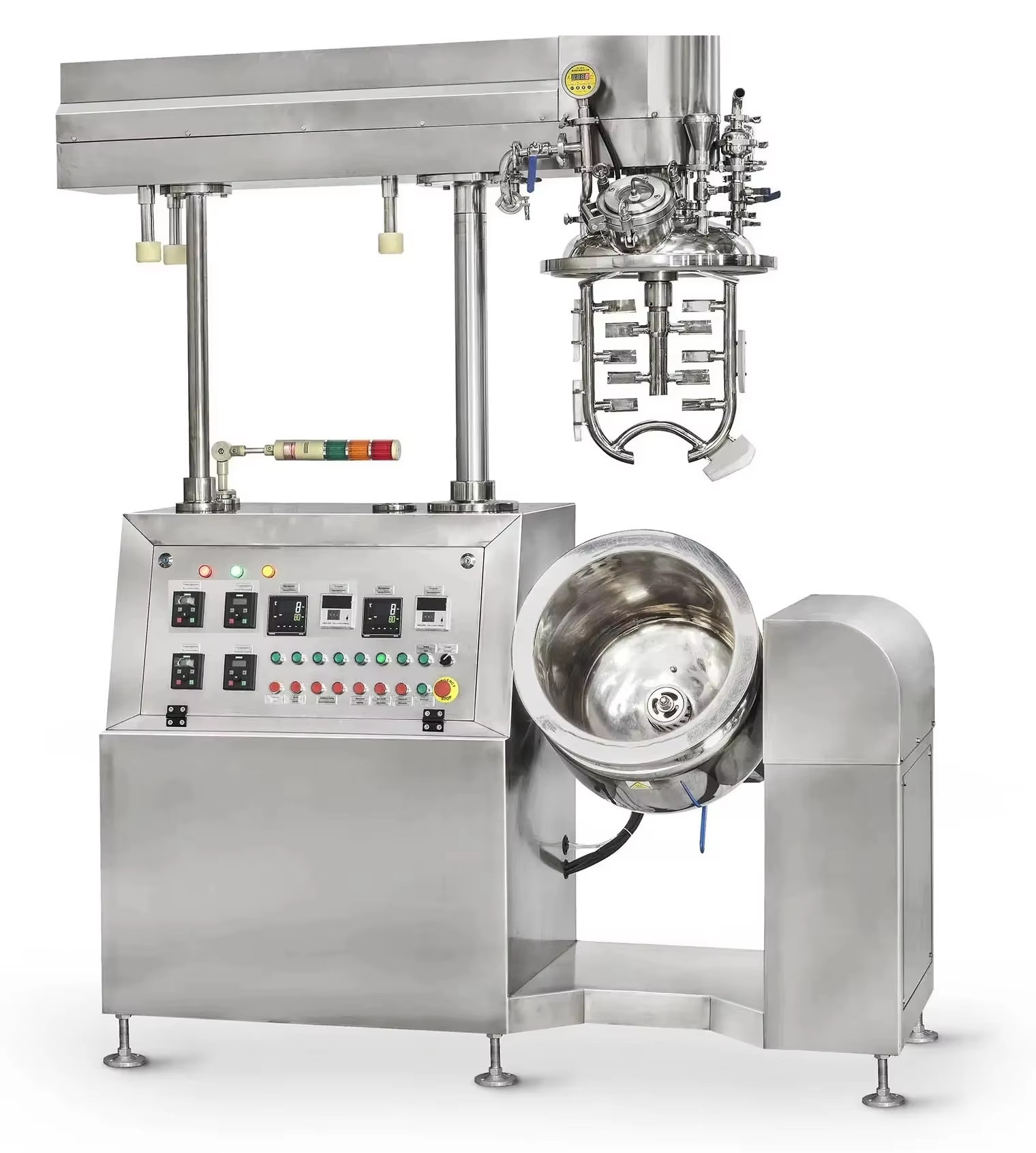

Industrial 100L-1000L Stainless Steel Electric Steam Mixing Tank Homogenizing Emulsifier Machine
Industrial 100L-1000L Stainless Steel Electric Steam Mixing Tank Homogenizing Emulsifier Machine
Industrial 100L-1000L Stainless Steel Electric Steam Mixing Tank Homogenizing Emulsifier Machine
Industrial 100L-1000L Stainless Steel Electric Steam Mixing Tank Homogenizing Emulsifier Machine
Industrial 100L-1000L Stainless Steel Electric Steam Mixing Tank Homogenizing Emulsifier Machine
Industrial 100L-1000L Stainless Steel Electric Steam Mixing Tank Homogenizing Emulsifier Machine
Industrial 100L-1000L Stainless Steel Electric Steam Mixing Tank Homogenizing Emulsifier Machine
Industrial 100L-1000L Stainless Steel Electric Steam Mixing Tank Homogenizing Emulsifier Machine
Specifications
Brand Name :
LTPM CHINA
Model Number :
LTRZ-Series
Certification :
CE,SGS
Place of Origin :
China
MOQ :
1Set
Payment Terms :
T/T, L/C, D/P, Cash, Credit Card, Paypal
Supply Ability :
25sets/month
Delivery Time :
25days
Packaging Details :
Export Standard Wooden Case
Mixer Type :
Homogenizer
Application :
Viscous Fluid, Medicine Processing, Chemicals Processing
Voltage :
380V 50HZ
Contact Part Material :
SUS316
Using life :
More than 15 years
Pot Working Pressure :
-0.090 Mpa
Jacket Working Pressure :
0.2Mpa
Spare parts :
One year spare parts and tools
Description
DESCRIPTION
1. Top wall scraping mixing adopts the fre-quency converter for speed adjustment, so thathigh quality products of differentprocesses can be met according to customerrequirements.
2.Bottom high-speed homogenizer canpowerfully mix solid and liquid raw materials andcan rapidly dissolve manyindissoluble materialssuch as AÉS , AESA , LSA , etc, during the liquiddetergent production process so as to saveenergy consumpion and shorten productionperiod.
3. The pot body is welded by three-layerstainless steel plate.The tank body and the pipesadopt mirror polishing, which fully conforms toGMP requirements.
4.According to customer requirement, thetank can heat and cool materials. The heatingway including steam heating and electric heating.5.Easy discharge, bottom direct dischargeor by transfer pump
Industrial 100L-1000L Stainless Steel Electric Steam Mixing Tank Homogenizing Emulsifier Machine
Cover with mixing system
Material contact 316L, with Teflon scraper, with height limit, more safe. with LED light, sight mirror, CIP cleaning ball, vacuum gauge, safty valve, aiar filter, essence inlet, product inlet
Heating
Can choose steam heating or electric heating or no heating
Have fuel oil steam generator, nature gas steam generator and electric steam generator
Electric control box SS304
With english and Chinese Language, can do other lanuages according to customers demands.French Schneider or Delixi eletric parts, Omron temperature display
Hydraulic dumping for main tank, with water and oil tanks
With hydraulic dumping, can discharge product quickly.Water and oil tanks are option, customer can choose with water tank with oil tank or no water oil tanks, material contact 316L other SS304
Main tank bottom homogenizer
With bottom high speed homogenizer, 0-3500rpm.USA ABB motor or Germany Siemens motor, Taiwan Delta inverter. Homogenizer cooled by tap water, durable, long time using.
Water oil tanks bottom dispenser
Material contact 316L other SS304, high speed 1440rpm,With baffle plate,USA ABB motor or Germany Siemens motor.
