Automatic Toothpaste Cream Shampoo Detergent Vacuum Ultrasonic Emulsifier Machine
Automatic Toothpaste Cream Shampoo Detergent Vacuum Ultrasonic Emulsifier Machine
Automatic Toothpaste Cream Shampoo Detergent Vacuum Ultrasonic Emulsifier Machine
Automatic Toothpaste Cream Shampoo Detergent Vacuum Ultrasonic Emulsifier Machine
Specifications
Brand Name :
LTPM CHINA
Model Number :
LTRZ-Series
Certification :
CE,SGS
Place of Origin :
China
MOQ :
1Set
Payment Terms :
T/T, L/C, D/P, Cash, Credit Card, Paypal
Supply Ability :
25sets/month
Delivery Time :
25days
Packaging Details :
Export Standard Wooden Case
Mixer Type :
Homogenizer
Application :
Viscous Fluid, Medicine Processing, Chemicals Processing
Voltage :
380V 50HZ
Contact Part Material :
SUS316
Using life :
More than 15 years
Pot Working Pressure :
-0.090 Mpa
Jacket Working Pressure :
0.2Mpa
Spare parts :
One year spare parts and tools
Description
DESCRIPTION

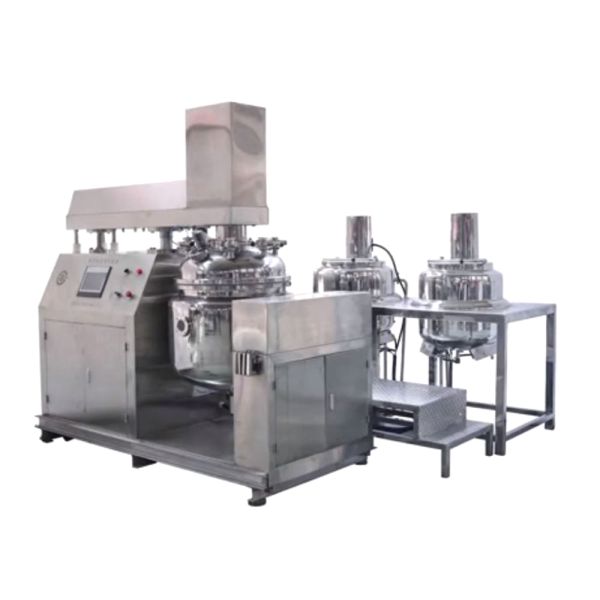

stainless steel vacuum cream &ointment suppository emulsifying tank machine for cosmetic is a complete vacuum mixer system for the manufacturing of ointment and cream in the cosmetic, natural plant, food and chemical industries.

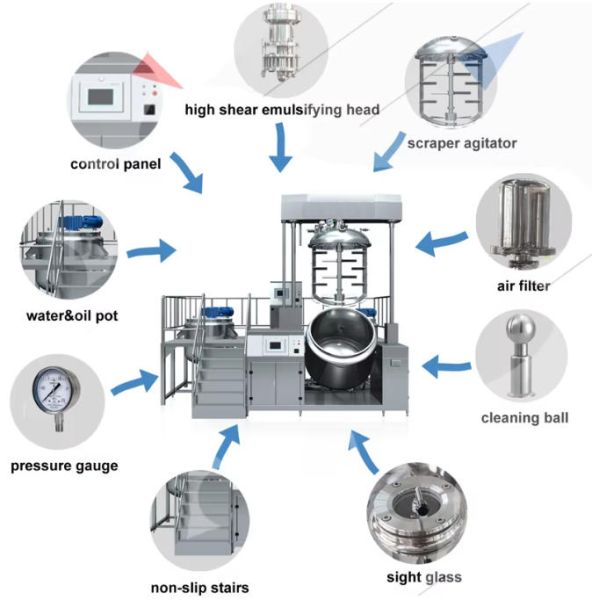

The machine including vacuum emulsifying mixer tank,water phase tank ,oil phase tank, vacuum pump, hydraulic system, tilting system, pipeline and electric control system.
1. The main strcture and technology specification for the stainless steel vacuum cream &ointment suppository emulsifying tank machine for and cosmetic: The whole equipment of this system is composed of parts below: emulsifying mixer tank ,oil phase tank ,water phase tank , vacuum system, hydraulic system, electric control system etc.
1.1 Emulsify mixer tank:
Structure: With three-layer structure, upper and lower end sockets. The upper end socket is connected to the tank body with flange between them.In the mixer tank, there are 3 mixers:
1.1.1 Cutting and vortex emulsify mixer: 1150-3500 rpm (frequency control)
1.1.2 Low-speed frame type scraping mixer: 10-40 rpm (frequency control)
1.1.3 Low-speed converse mixer, electric motor is the same as low-speed frame type scraping mixer's 10-40 rpm.
1.1.4 Attached units of the tank: Liquid feed inlet with stainless steel pipe filter, solid adding material inlet, vacuum inlet,
commpressed air inlet, breaking vacuum inlet, sight glass, temperature sensor, CIP cleaning head, dustproof asepsis respiratory device.
1.2 Pretreatment tank:
1. oil phase tank and water phase tank
2. Structure: open (half-open) type, with three feet and mixer.
1.3 Vacuum system
Adopting water ring type vacuum pump
1.4 Hydraulic system
Composed of oil cylinder, solenoid valve, over-fall valve, oil box, and pressure- keeping valve.
1.5 Electric control system (PLC control)
stainless steel vacuum cream &ointment suppository emulsifying tank machine for pharmaceutical and cosmetic have different options by client :
1) material can be SS304 or SS316L .
2) heating can be by electrical or steam.
3)PLC/HMI control or common button control .
