Aluminum Blister Packing Machine High Speed Servo Motor Tabalet And Capsule
Aluminum Blister Packing Machine High Speed Servo Motor Tabalet And Capsule
Aluminum Blister Packing Machine High Speed Servo Motor Tabalet And Capsule
Aluminum Blister Packing Machine High Speed Servo Motor Tabalet And Capsule
Aluminum Blister Packing Machine High Speed Servo Motor Tabalet And Capsule
Aluminum Blister Packing Machine High Speed Servo Motor Tabalet And Capsule
Aluminum Blister Packing Machine High Speed Servo Motor Tabalet And Capsule
Aluminum Blister Packing Machine High Speed Servo Motor Tabalet And Capsule
Specifications
Brand Name :
LTPM CHINA
Model Number :
DPP-Series
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
25 SETS Per month
Delivery Time :
25days
Packaging Details :
wrapped with strech film packed into Export Standard Wooden case, this package afford long time sea shipment and anti moisture.
Overall Dimension :
3100x670x1650mm
Max. Forming depth :
18-25mm
PVC hard Film :
0.15-0.5*110 (mm)
Air Pressure(Mpa) :
0.6-0.8MPa
Total Power :
5.5KW
Capacity :
75-140 thousand grains/hour
Production capacity(pcs/h) :
2400-9600
Weight(kg) :
1800Kg
Description

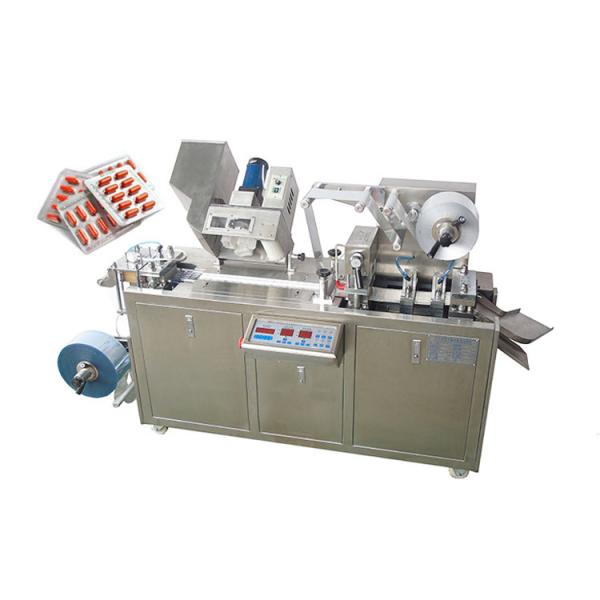

The Blister packing machine is of flat-plate structure, with pressing, molding, meshes heat-sealing, adjustable travel range, for small size of body and ease of operation. It is applied to Al-Al, Al-PVC, Al-plastic packaging for capsule, table, candy, healthcare, small hardware etc. It is widely used in small pharmacy factory, preparation-room of hospital institute laboratory, mini-motor test workshop. The machine reaches advanced level in China.

Aluminum Blister Packing Machine High Speed Servo Motor Tabalet And Capsule

Technical Data

Punch frequency AL/PVC 20-50 (times/min)
AL/AL 15-320 (times/min)
Capacity AL/PVC 140 thousand grains/hour
AL/AL 75 thousand grains/hour
Max. Forming depth AL/PVC 25mm
AL/AL 18mm
Selectable feed stroke 30-140mm
Max. forming area 240X130mm
Finished standard sheet size 80X57X4mm
Total power 5.5KW
Weight 1800kg
Overall dimensions 3100x670x1650mm

Aluminum Blister Packing Machine High Speed Servo Motor Tabalet And Capsule

Aluminum Blister Packing Machine High Speed Servo Motor Tabalet And Capsule

Aluminum Blister Packing Machine High Speed Servo Motor Tabalet And Capsule

Company Profile
Our Company
- Since year 1996, LTPM CHINA had started manufacturing Pharmaceutical and food packaging machines such as Capsule Filling Machine, Ampoule Filling and Sealing Machine, Blister Packaging Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc. - LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models. - LTPM CHINA's machinery = high automation + high precision + more energy saving + satisfactory warranty and after-sales service + trusted brand
Our Workshop
FAQ
Q: What is the warranty period for your machine?
A: 5 years free warranty.

Q: Are you a real factory/manufacturer?
A: Of course. Our factory is inspected by third party. We much welcome you to visit us and free to pick you up form hotel. You don't have time? We can use live video and you can visit us on line.

Q: Is engineer available to serve oversea?
A: Yes, we can send engineers to your factory but all the fee will be on buyers. In order to save your cost, we will send you a video of full details machine installation and assist you till the end.

Q: How can we make sure about the machine quality after placing the order?
A: Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you sastisfy. We will setting all the parameters well. And also you can arrange for quality checking by yourself or by your contacts in China.

Q: We are afraid you won't send us the machine after we send you the money?
A: We have our business license and certificate. And it is available for us to use alibaba trade assurance service, protect your money, machine qulaity and delivery are guaranted.
