Specifications
Brand Name :
HUALIAN PHARMD
Model Number :
FD-FL
Certification :
ISO,GMP
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
80
Delivery Time :
50 DAYS
Packaging Details :
standard wooden case
Model No :
FD-FL
Type :
fludized granulator
Voltage :
380V/220V
Dimension(LxWxH) :
1600*1100*2500
Weight（kg） :
1000kg
Application :
Chemical,food,pharmacutical industy
Material :
Stainless Steel
Capacity :
15-45kg
Description

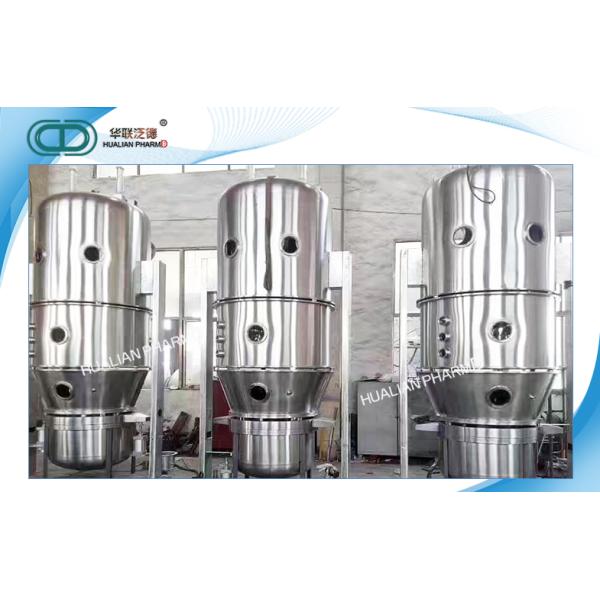

FL Series Stainless Steel Material Fluidized Bed Granulator for Coffee and Juice

Introduction:

The powder granule in the container(fluidization ) appear in the state of fluidization . It is Pre-heated and mixed with clean and hot air, At the same time, the solution of adhesive is fogged and sprayed into the container . The particle clumped into granules containing adhesive, Under the continuous drying of hot air , Moisture in the granulation is evaporated and the adhesive solidified. The continuously repeated movements formed the ideal size uniform, Micro-porous spherical particles

Application​:

1. Phamaceutical industry: tablet, capsule, low sugar or no sugar granule ofchinese medicine.
2. Foodstuff; cocoa, coffee, milkpowder, juice of granulate, flavoring and so on.
3. Other industries: peticide, feed chemical fertilizer, pigment, dyestuff and so on.
4. Pharmaceutical industry: power or granule material.
5. Coating: Granule, protecting coat of pellet, spare color, slow release film, bowel-dissolve coating, ect
Fluidized Bed Pharmaceutical Granulation Equipments For Coffee And Juice FD-FL
Fluidized Bed Pharmaceutical Granulation Equipments For Coffee And Juice FD-FL

Fluidized Bed Pharmaceutical Granulation Equipments For Coffee And Juice FD-FL

Technical characters:

· Through powder Granulation, the fluidity is improved and the dust is reduced;
· Through powder Granulation, its solving property is improved;
· The mixing, Granulation and drying can be completed in one step inside themachine;
· The operation of equipment is safe because the anti static filtering cloth isadapted;
· The operating personnel can not be damaged if explosion take place becausethere is releasing hole;
· The equipment has no dead corner. Therefore the loading and unloading arequick and light and clean. It can meet the requirements of GMP.
Fluidized Bed Pharmaceutical Granulation Equipments For Coffee And Juice FD-FL
Fluidized Bed Pharmaceutical Granulation Equipments For Coffee And Juice FD-FL

Main Technical Parameter:

ltem Uni Type
3 5 15 30 60 120 200 300 500
Container Volume L 12 22 45 100 220 420 670 1000 1500
Diameter mm 300 400 550 700 1000 1200 1400 1600 1800
Capability Min Kg 1.5 4 10 15 30 80 100 150 250
Max Kg 4.5 6 20 45 90 160 300 450 750
Fan Capacity m³/h 1000 1200 1400 1800 3000 4500 6000 7000 8000
Pressure mmH₂O 375 375 480 480 950 950 950 950 950
Power Kg 3 4 5.5 7.5 11 18.5 22 30 45
Steam expenditure Kg/h 15 2.3 42 70 140 211 282 366 451
Compressed air expenditure m³/min 0.9 0.9 0.9 0.9 0.1 1.0 1.1 1.5 1.5
Weight of the main body Kg 500 700 900 1000 1100 1300 1500 1800 2000
Steam pressure Мра 0.3~0.6
Temperature ℃ adjustable at the range from room temperature to 120°C
Working time​ min decided in accordance with the proplerties of raw materials
Fіеld​ % ≥99
Noise dB(A) When installation,main machine is separated from fan
Size(LxWxH) m

1.0x0.6

x2.1

1.2x0.7

x2.1

1.25x0.9

x2.5

1.6x1.1

x2.5

1.25x0.9

x2.5

2.2x1.65

x3.3

2.34x1.7

x3.8

2.8x2.0

x4.0

3x2.25

x4.4

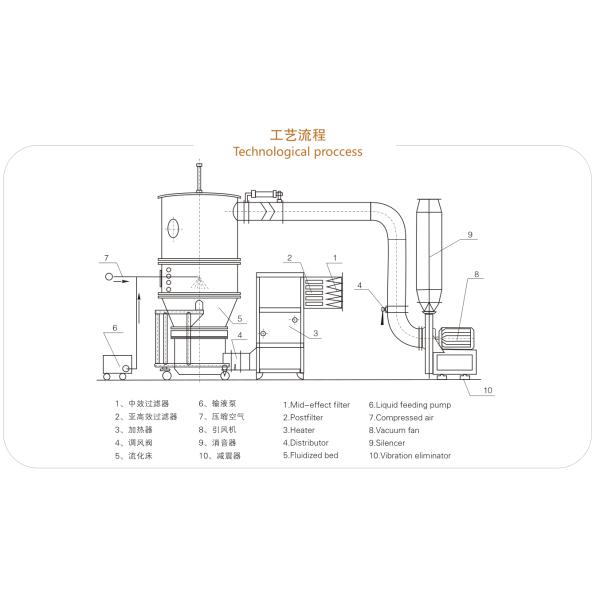

Schematic of installation:​
