Precision Calibration PET Strapping Band Machine with Continuous Running and Low Wear Loss for Packaging
Precision Calibration PET Strapping Band Machine with Continuous Running and Low Wear Loss for Packaging
Specifications
Price :
7000 - 14000USD 1 set
Maximum winding diameter :
1201MM
Maximum operating pressure of the system :
0.8MPa
Delivery Time :
30days
Rewind-up range :
9MM-31MM
Model Number :
PETSA-350
voltage :
380V
Minimum operating pressure of the system :
0.5MPa
Packaging Details :
Wooden Case
Length of paper tube :
180MM-300MM
Input power :
380V
Brand Name :
United Win
Product name :
PET Strapping Band Machine
Place of Origin :
china
dimension(l*w*h) :
2100mm*200mm*900mm
MOQ :
1 set
Weight (KG) :
1180
Description

Precision Calibration PET Strap Processing Machine with Continuous Running Property Low Wear Loss for Packaging Band Fabrication

Precision Calibration PET Strap Processing Machine is a high-end industrial processing equipment designed for high-standard packaging band fabrication, featuring precise dimensional calibration, stable continuous running and low wear loss performance. This machine adopts advanced closed-loop constant-temperature plasticizing technology and balanced flow extrusion craftsmanship. Equipped with precision sensor calibration system and optimized alloy screw extrusion structure, it achieves uniform PET material melting and accurate flow control. Real-time dimensional correction technology effectively eliminates molding errors and size deviation, while upgraded anti-wear transmission structure reduces mechanical friction during long-cycle operation to maintain consistent production accuracy.
This industrial PET strap processing machine supports flexible parameter calibration for various packaging band width and thickness specifications. It maintains stable extrusion pressure, uniform molding effect and ultra-low wear consumption during long-hour continuous operation, compatible with virgin PET pellets and recycled PET flakes. Strict full-process quality control is implemented including precision calibration testing, wear resistance verification, 24-hour continuous aging operation and finished product quality sampling. Every device is fully debugged and calibrated before delivery to ensure stable mechanical performance and consistent product quality for industrial mass production.
The machine delivers excellent core functions for modern strap manufacturing. Precision calibration capability ensures accurate dimensional tolerance and uniform surface flatness of finished packaging bands, significantly reducing defective products and material waste. Reliable continuous running property supports non-stop batch production, effectively improving production output and shortening manufacturing cycles. Low wear loss structural design minimizes component aging and mechanical loss, lowering daily maintenance frequency and long-term operational costs for production lines.
Widely used in packaging material manufacturing, plastic processing and industrial strapping industries, this high-precision processing equipment perfectly meets large-scale and high-precision packaging band fabrication demands. Integrating precise calibration performance, stable continuous running and low wear loss advantages, this PET strap processing machine provides reliable, durable and cost-effective industrial production solutions, helping enterprises stabilize product quality and enhance overall market competitiveness.
Specification Value
Appearance and Dimensions 2100mm × 2050mm × 910mm
Machine Weight Approximately 1200KG
Input Power 380V
Maximum Power 4KW
Maximum System Operating Pressure 0.8MPa
Minimum System Operating Pressure 0.6MPa
Maximum Winding Diameter 1200MM
Rewind-up Range 8MM-32MM
Length of Paper Tube 190MM-300MM
Equipment Model PETSA-350
Precision Calibration PET Strapping Band Machine with Continuous Running and Low Wear Loss for Packaging

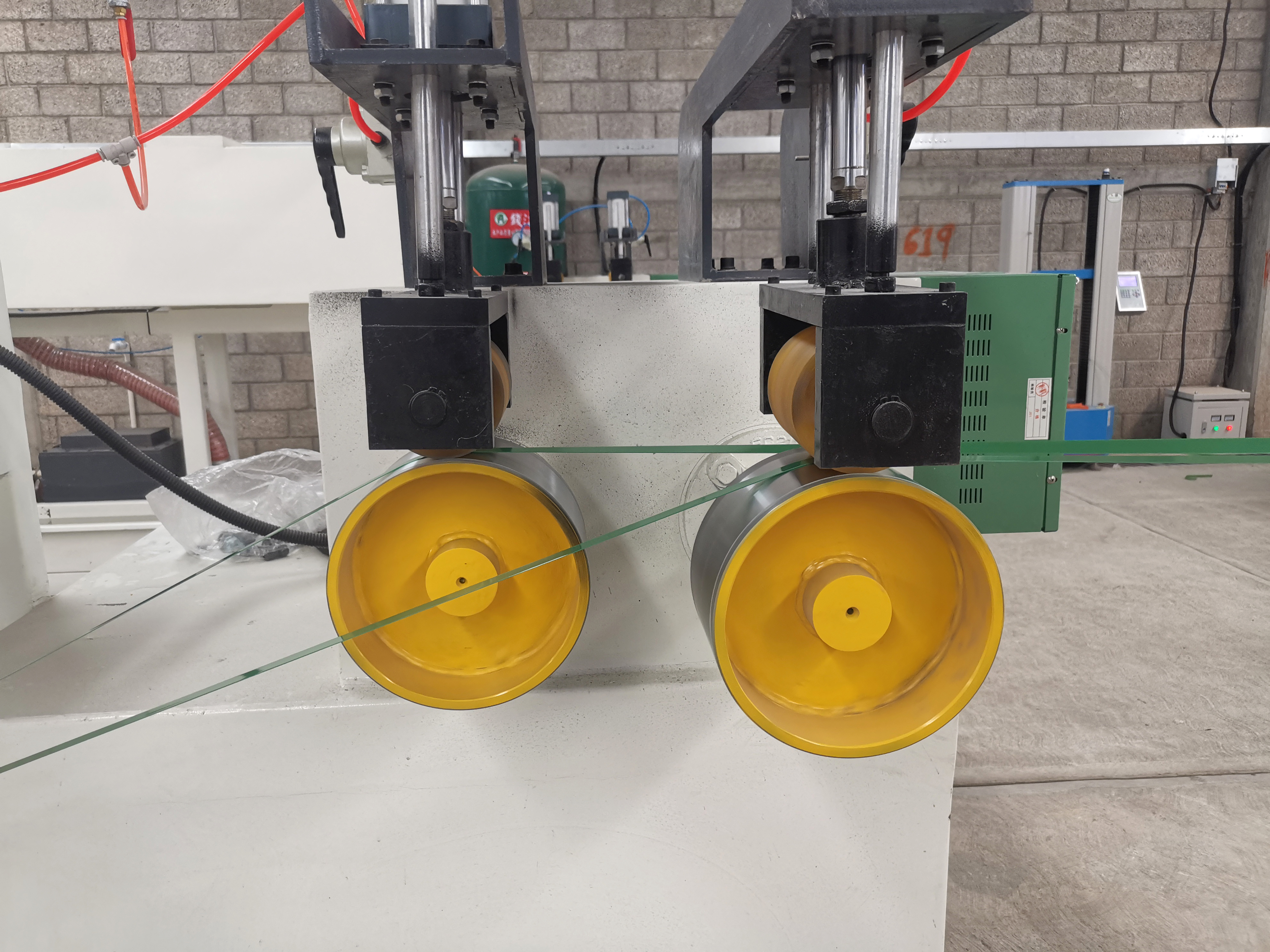

Operational view showing winding mechanism and control components
Precision Calibration PET Strapping Band Machine with Continuous Running and Low Wear Loss for Packaging
Technical diagram illustrating dimensions and component layout
