Accurate Thickness Control PET Strapping Band Machine with High Consistency and Easy Operation for Plastic Band Manufacturing
Accurate Thickness Control PET Strapping Band Machine with High Consistency and Easy Operation for Plastic Band Manufacturing
Specifications
Price :
7000 - 14000USD 1 set
voltage :
380V
Maximum operating pressure of the system :
0.8MPa
Packaging Details :
Wooden Case
Maximum winding diameter :
1200MM
Input power :
380V
Model Number :
PETSA-350
Minimum operating pressure of the system :
0.5MPa
Brand Name :
United Win
dimension(l*w*h) :
2100.10mm*2050mm*905mm
Delivery Time :
30days
Rewind-up range :
9MM-31.95MM
Product name :
PET Strapping Band Machine
Weight (KG) :
1190
Length of paper tube :
190MM-300.95MM
Place of Origin :
china
MOQ :
1 set
Description
Accurate Thickness Control PET Strap Extruding Machine High Consistency Easy Operation For Plastic Band Manufacturing


Accurate Thickness Control PET Strap Extruding Machine with high consistency and easy operation is a professional automated processing device designed for standardized plastic band manufacturing. Adopting advanced PLC intelligent precision control technology and balanced melt extrusion craftsmanship, the machine features optimized screw plasticizing system and high-precision die molding structure. It realizes uniform PET material melting and stable flow output, while real-time thickness sensing and automatic calibration technology dynamically corrects dimensional errors, ensuring every plastic band maintains consistent thickness and flatness throughout continuous production.
This industrial PET strap extruding machine supports flexible and accurate thickness parameter adjustment to meet diverse plastic band specification requirements. Equipped with optimized integrated circuit control and simplified operating system, it greatly lowers operational difficulty for workers and shortens skill adaptation cycles. Strict full-process quality control standards are implemented, covering core component precision testing, dimensional calibration verification, continuous running aging tests and finished product sampling inspection. All equipment is fully debugged to maintain stable high-consistency output and long-term reliable industrial performance.
Featuring excellent core functions, the precise thickness control system eliminates dimensional deviation and defective products, significantly improving finished strap qualification rate and reducing material waste. Its high consistency molding performance ensures uniform texture, flat surface and stable tensile strength of plastic bands. The user-friendly operation design simplifies parameter setting, daily debugging and equipment maintenance, effectively improving production efficiency and lowering labor costs for batch manufacturing.
Widely applicable in packaging material processing, plastic strap production and industrial band manufacturing industries, it works perfectly with virgin and recycled PET raw materials. This accurate thickness control PET strap extruding machine integrates precise molding capability, high production consistency and easy operability, providing cost-effective, stable and high-efficiency production solutions. It helps plastic processing enterprises achieve standardized plastic band manufacturing and upgrade overall market competitiveness.

Specification Value
Appearance and Dimensions 2100mm × 2050mm × 910mm
Machine Weight Approximately 1200KG
Input Power 380V
Maximum Power 4KW
Maximum System Operating Pressure 0.8MPa
Minimum System Operating Pressure 0.6MPa
Maximum Winding Diameter 1200MM
Rewind-up Range 8MM-32MM
Length of Paper Tube 190MM-300MM
Equipment Model PETSA-350
Accurate Thickness Control PET Strapping Band Machine with High Consistency and Easy Operation for Plastic Band Manufacturing

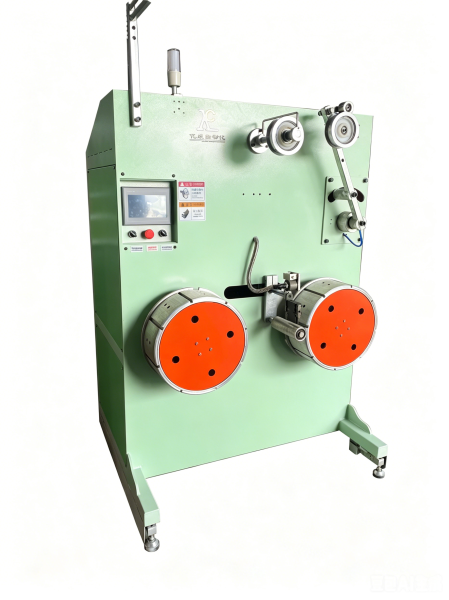

Operational view showing winding mechanism and control components
Accurate Thickness Control PET Strapping Band Machine with High Consistency and Easy Operation for Plastic Band Manufacturing
Technical diagram illustrating dimensions and component layout
