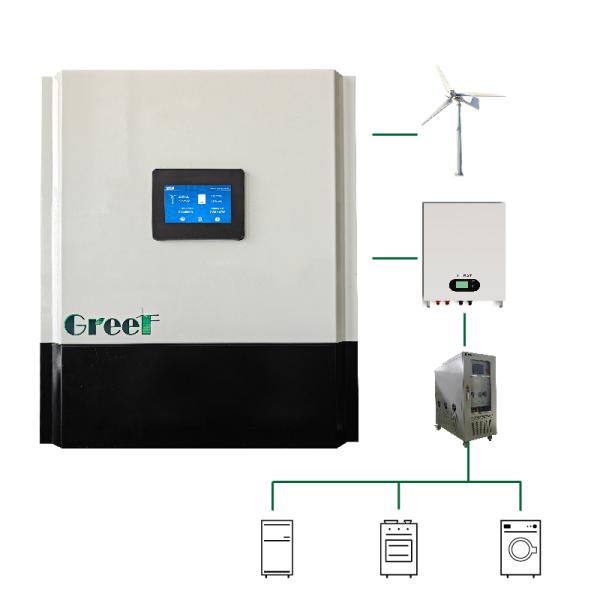

MPPT Off Grid Controller 100A-200A Output for Wind Solar Systems
MPPT Off Grid Controller 100A-200A Output for Wind Solar Systems
Specifications
Brand Name :
Greef
Model Number :
AHCC
Place Of Origin :
CHINA
Certification :
CE
MOQ :
1Set
Price :
Negotiable
Packaging Details :
Foam+plywooden Case
Delivery Time :
25 Working Days
Payment Terms :
T/T,Western Union,MoneyGram,L/C
Supply Ability :
Supply Ability
Product Type :
MPPT, High Frequency Isolated New Energy Converter
Type :
Charge Controller
Type of energy storage :
Lead-acid Batteries, Lithium Batteries, DC Bus Bars, Etc.
Mppt Voltage Range :
90~520V/220~530Vac Customized
Input protection :
Fuses; Lightning Protection Circuits
Communication :
Standard: RS485/TCP
Model :
AHCC
Rated voltage :
48Vac-380Vac
Description

Product Description:

Off-grid Controller is a crucial component in wind generator systems that play a vital role in converting Three AC current from a wind turbine into DC current to charge the battery bank. The GREEF wind off-grid controller is equipped with advanced technologies such as dedicated MPPT technology, modular design, electrical isolation, PWM unloading, and host computer control to greatly enhance electricity production.

The off-grid controller offered by GREEF is designed with a large touchscreen and IoT functionality, allowing for efficient, safe, and intelligent power generation. Additionally, it enables effective operation and maintenance management to ensure optimal performance of the system.


Product Features

Power tracking

wind energy MPPT, 98% engagement with actual wind energy output curve, power generation enhancement.

Safety protection

over-voltage, over-current, anti-reverse connection, short circuit protection.

IOT IOT function

1.Wired network, APP remote view and control.
2.Remote data export.

Touch screen

1.Display voltage, current, power, power generation, operation status, etc., with alarm query.2.Historical data, alarm information
date query.3.On-site adjustment of parameters.

Upper computer trusted control

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Customized development of wind energy-specific power absorption circuit

1.Modularized power absorption circuit, hot-swappable, easy maintenance.
2.Input and output electrical isolation, protect the back-end load.
3.High efficiency at low wind speed, wide input voltage range.
4.Saturation mode, matching load power output.

PWM unloading

1.Fan self-powered mode, fast response.
2.Limit speed and torque to ensure the safe operation of the wind turbine.
3.Soft unloading adjustment, reduce the burden of fan output.
Product Paramenters
Model
AHCC-5KW
AHCC-10KW
AHCC-20KW
AHCC-30KW
Rated power
5KW
10KW
20KW
30KW
Product Type
MPPT, high frequency isolated new energy converter
DC output side
Type of energy storage
Lead-acid batteries, lithium batteries, DC bus bars, etc.
Rated output current
100A
200A
80A
150A
Output Voltage Range
42-240Vdc (parameters adjustable depending on type of energy storage)
200-1000Vdc (parameters adjustable depending on type of energy storage)
Voltage stabilization accuracy
≤±0.5%
Stabilization accuracy
≤±1%
Wind turbine input side
Rated voltage
48Vac-380Vac
380 Vac
Maximum withstand voltage
290Vac-530Vac for 5 seconds
600Vac for 5 seconds
MPPT voltage range
90~520V customized
220~530Vac
Maximum power
10kW
20kW
40kW
60KW
Rated Input Current
40Aac
80Aac
40Aac
80Aac
Input protection
Fuses; lightning protection circuits
Unloading side
Unloading method
PWM
Rated unloading current
40Adc
100Adc
50Adc
100Adc
Maximum withstand current
60A
200A
200A
400A
Working environment conditions
Ambient temperature
-25℃～50℃
Storage temperature
-40℃～75℃
Relative humidity
0 to 95%
Height above sea level
3000m full load output
Communication interface
Standard: RS485/TCP
Size of the controller (mm)
485×267×450mm
485×267×450mm
343×605×970mm
343 x 605 x 970mm
Controller Weight
29.5kg
38.5kg
61.5Kg
71.5Kg
Size of the Dump load (mm)
695×131×194mm
700×450×750mm
820×620×900mm
900 x 700 x 1270mm
Dump load Weight
18kg
40kg
80kg
120Kg
Details Pictures
System Solution
We can tailor a system to your specific needs. If you would like to learn more about our products, please contact us.

Applications:

The AHCC Off-Grid Controller is suitable for various off-grid renewable energy systems, including wind power generation, hydroelectric power generation, and solar power generation systems. It offers a versatile solution for managing and controlling off-grid power generation processes efficiently.

Whether it is an off-grid wind power system, an off-grid hydroelectric system, or an off-grid solar system, the AHCC Off-Grid Controller is a reliable choice to ensure optimal performance and monitoring. Its capabilities extend to different types of off-grid power generation setups, making it a flexible option for various applications.

By using the AHCC Off-Grid Controller, operators can easily integrate it into their off-grid renewable energy systems, providing a seamless control interface for monitoring and regulating power generation processes effectively. This ensures smooth operation and enhanced performance of off-grid power systems.


Customization:

Product Customization Services for the Off Grid Controller:

Brand Name: Greef

Model Number: AHCC

Place Of Origin: CHINA

Certification: CE

Minimum Order Quantity: 1Set

Price: Negotiable

Packaging Details: Foam+plywooden Case

Delivery Time: 25 Working Days

Payment Terms: T/T, Western Union, MoneyGram, L/C

Supply Ability: Supply Ability

Type: Charge Controller

Maximum withstand voltage: 290Vac-530Vac/600Vac For 5 Seconds

Type of energy storage: Lead-acid Batteries, Lithium Batteries, DC Bus Bars, Etc.

Input protection: Fuses; Lightning Protection Circuits

Communication: Standard: RS485/TCP

DCS Distributed Control System, Controller Monitor, Controllers


Support and Services:

The Off Grid Controller product comes with comprehensive Product Technical Support and Services to assist customers in setting up and maintaining their off-grid systems. Our team of experts is available to provide guidance on installation, troubleshooting, and any technical queries customers may have.

Our technical support services include:

  • Installation guidance
  • Troubleshooting assistance
  • Product updates and maintenance recommendations
  • Technical consultations

We are dedicated to ensuring that customers have a seamless experience with their Off Grid Controller product and are committed to providing top-notch technical support and services.


Packing and Shipping:

Product Packaging:

The Off Grid Controller is carefully packaged in a sturdy cardboard box to ensure safe delivery. The product is wrapped in protective bubble wrap to prevent any damage during transit.

Shipping:

All orders are processed within 1-2 business days. We offer standard shipping options as well as expedited shipping for faster delivery. Once your order is shipped, you will receive a tracking number to monitor the delivery status of your Off Grid Controller.


FAQ:

Q: What is the brand name of the Off Grid Controller?

A: The brand name of the Off Grid Controller is Greef.

Q: What is the model number of the Off Grid Controller?

A: The model number of the Off Grid Controller is AHCC.

Q: Where is the Off Grid Controller manufactured?

A: The Off Grid Controller is manufactured in China.

Q: What certification does the Off Grid Controller have?

A: The Off Grid Controller is CE certified.

Q: What is the minimum order quantity for the Off Grid Controller?

A: The minimum order quantity for the Off Grid Controller is 1 set.
