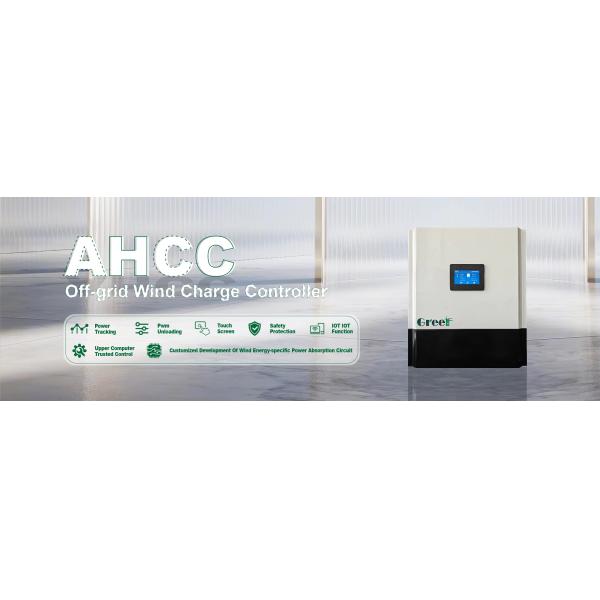

Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac
Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac
Specifications
Brand Name :
Greef
Model Number :
AHCC
Place Of Origin :
CHINA
Certification :
CE
MOQ :
1Set
Price :
Negotiable
Packaging Details :
Foam+plywooden Case
Delivery Time :
25 Working Days
Payment Terms :
T/T,Western Union,MoneyGram,L/C
Supply Ability :
Supply Ability
Rated voltage :
48Vac-380Vac
Nominal System Voltage :
42-240Vdc/200-1000Vdc (parameters Adjustable Depending On Type Of Energy Storage)
Rated Wind Power :
5KW/10kw/20kw/30kw
Input Protection :
Fuses; Lightning Protection Circuits
MPPT voltage range :
90~520V Customized/220~530Vac
Height above sea level :
3000m Full Load Output
Battery Type :
Lead-acid Batteries, Lithium Batteries, DC Bus Bars, Etc.
Maximum withstand voltage :
290Vac-530Vac/600Vac For 5 Seconds
Description

Greef Off Grid Controller 5KW-30KW MPPT 48Vac-380Vac

Product Description:

Off-grid Controller is the most crucial component in wind generator systems from a technological standpoint. It plays a key role in converting Three AC current from the wind turbine into DC current for charging the battery bank.

The GREEF wind off-grid controller is designed to enhance electricity production by utilizing dedicated MPPT technology. This controller incorporates advanced features like modular design, electrical isolation, PWM unloading, and host computer control to optimize performance. It is equipped with a large touchscreen and IoT functionality, ensuring efficient, safe, and intelligent power generation as well as operation and maintenance management.


Applications:

The AHCC Off-Grid Controller is suitable for various off-grid renewable energy systems, including wind power generation systems, hydroelectric power generation systems, and solar power generation systems.

It is designed to optimize the performance and efficiency of off-grid systems by providing reliable control and monitoring capabilities specifically tailored to the unique requirements of each type of renewable energy source.



Product Paramenters
Model
AHCC-5KW
AHCC-10KW
AHCC-20KW
AHCC-30KW
Rated power
5KW
10KW
20KW
30KW
Product Type
MPPT, high frequency isolated new energy converter
DC output side
Type of energy storage
Lead-acid batteries, lithium batteries, DC bus bars, etc.
Rated output current
100A
200A
80A
150A
Output Voltage Range
42-240Vdc (parameters adjustable depending on type of energy storage)
200-1000Vdc (parameters adjustable depending on type of energy storage)
Voltage stabilization accuracy
≤±0.5%
Stabilization accuracy
≤±1%
Wind turbine input side
Rated voltage
48Vac-380Vac
380 Vac
Maximum withstand voltage
290Vac-530Vac for 5 seconds
600Vac for 5 seconds
MPPT voltage range
90~520V customized
220~530Vac
Maximum power
10kW
20kW
40kW
60KW
Rated Input Current
40Aac
80Aac
40Aac
80Aac
Input protection
Fuses; lightning protection circuits
Unloading side
Unloading method
PWM
Rated unloading current
40Adc
100Adc
50Adc
100Adc
Maximum withstand current
60A
200A
200A
400A
Working environment conditions
Ambient temperature
-25℃～50℃
Storage temperature
-40℃～75℃
Relative humidity
0 to 95%
Height above sea level
3000m full load output
Communication interface
Standard: RS485/TCP
Size of the controller (mm)
485×267×450mm
485×267×450mm
343×605×970mm
343 x 605 x 970mm
Controller Weight
29.5kg
38.5kg
61.5Kg
71.5Kg
Size of the Dump load (mm)
695×131×194mm
700×450×750mm
820×620×900mm
900 x 700 x 1270mm
Dump load Weight
18kg
40kg
80kg
120Kg
Details Pictures
System Solution
We can tailor a system to your specific needs. If you would like to learn more about our products, please contact us.
Product packaging
