AHCC MPPT Wind Controller 40Aac 90-520V Off Grid Charge
AHCC MPPT Wind Controller 40Aac 90-520V Off Grid Charge
Specifications
Brand Name :
Greef
Model Number :
AHCC
Place Of Origin :
CHINA
Certification :
CE
MOQ :
1Set
Price :
Negotiable
Packaging Details :
Foam+plywooden Case
Delivery Time :
25 Working Days
Payment Terms :
T/T,Western Union,MoneyGram,L/C
Supply Ability :
Supply Ability
Model :
AHCC
Method :
PWM/MPPT
Rated Input Current :
40Aac/80Aac
Type :
Charge Controller
Mppt Voltage Range :
90~520V/220~530Vac Customized
Product Type :
MPPT, High Frequency Isolated New Energy Converter
Input protection :
Fuses; Lightning Protection Circuits
Rated voltage :
48Vac-380Vac
Description

AHCC MPPT Wind Controller 40Aac 90-520V Off Grid Charge

Product Description:

Off-grid Controller plays a crucial role in wind generator systems by converting Three AC current from the wind turbine into DC current for charging the battery bank. The GREEF wind off-grid controller is a technologically advanced component that greatly enhances electricity production through dedicated MPPT technology.

Utilizing cutting-edge features like modular design, electrical isolation, PWM unloading, and host computer control, the GREEF wind off-grid controller provides efficient and effective power generation capabilities. With a large touchscreen interface and IOT functionality, it enables users to safely and intelligently manage power generation and operation & maintenance tasks.


Applications:

The AHCC Off-Grid Controller is suitable for off-grid wind power generation systems, off-grid hydroelectric power generation systems, and off-grid solar power generation systems.

It is designed to be used in various off-grid power generation setups, including those that rely on wind, hydroelectric, or solar energy sources.


Product Paramenters
Model
AHCC-5KW
AHCC-10KW
AHCC-20KW
AHCC-30KW
Rated power
5KW
10KW
20KW
30KW
Product Type
MPPT, high frequency isolated new energy converter
DC output side
Type of energy storage
Lead-acid batteries, lithium batteries, DC bus bars, etc.
Rated output current
100A
200A
80A
150A
Output Voltage Range
42-240Vdc (parameters adjustable depending on type of energy storage)
200-1000Vdc (parameters adjustable depending on type of energy storage)
Voltage stabilization accuracy
≤±0.5%
Stabilization accuracy
≤±1%
Wind turbine input side
Rated voltage
48Vac-380Vac
380 Vac
Maximum withstand voltage
290Vac-530Vac for 5 seconds
600Vac for 5 seconds
MPPT voltage range
90~520V customized
220~530Vac
Maximum power
10kW
20kW
40kW
60KW
Rated Input Current
40Aac
80Aac
40Aac
80Aac
Input protection
Fuses; lightning protection circuits
Unloading side
Unloading method
PWM
Rated unloading current
40Adc
100Adc
50Adc
100Adc
Maximum withstand current
60A
200A
200A
400A
Working environment conditions
Ambient temperature
-25℃～50℃
Storage temperature
-40℃～75℃
Relative humidity
0 to 95%
Height above sea level
3000m full load output
Communication interface
Standard: RS485/TCP
Size of the controller (mm)
485×267×450mm
485×267×450mm
343×605×970mm
343 x 605 x 970mm
Controller Weight
29.5kg
38.5kg
61.5Kg
71.5Kg
Size of the Dump load (mm)
695×131×194mm
700×450×750mm
820×620×900mm
900 x 700 x 1270mm
Dump load Weight
18kg
40kg
80kg
120Kg
Details Pictures

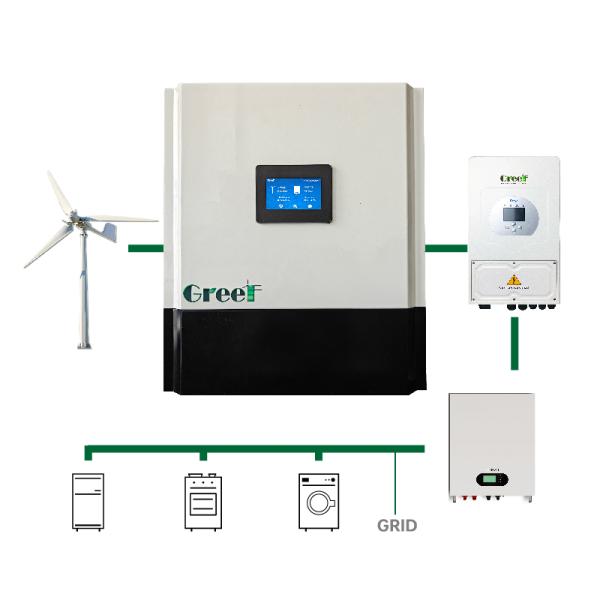

System Solution
We can tailor a system to your specific needs. If you would like to learn more about our products, please contact us.

Support and Services:

The Off Grid Controller product provides comprehensive technical support and services to ensure the optimal performance of the system. Our dedicated team of experts is available to assist with any product-related inquiries, troubleshooting, and guidance. From installation support to maintenance tips, we are committed to delivering top-notch service to our customers.


Packing and Shipping:

Product Packaging:

The Off Grid Controller is carefully packaged in a sturdy cardboard box to ensure its safe delivery. The box is labeled with product information and handling instructions for the convenience of the recipient.

Shipping:

Once the Off Grid Controller is securely packaged, it will be shipped via a reliable courier service to your designated address. You will receive a tracking number to monitor the status of your shipment and expect timely delivery.


FAQ:

Q: What is the brand name of the Off Grid Controller?

A: The brand name of the Off Grid Controller is Greef.

Q: What is the model number of the Off Grid Controller?

A: The model number of the Off Grid Controller is AHCC.

Q: Where is the Off Grid Controller manufactured?

A: The Off Grid Controller is manufactured in China.

Q: What certification does the Off Grid Controller have?

A: The Off Grid Controller is certified with CE.

Q: What are the payment terms for purchasing the Off Grid Controller?

A: The payment terms for purchasing the Off Grid Controller are T/T, Western Union, MoneyGram, and L/C.
