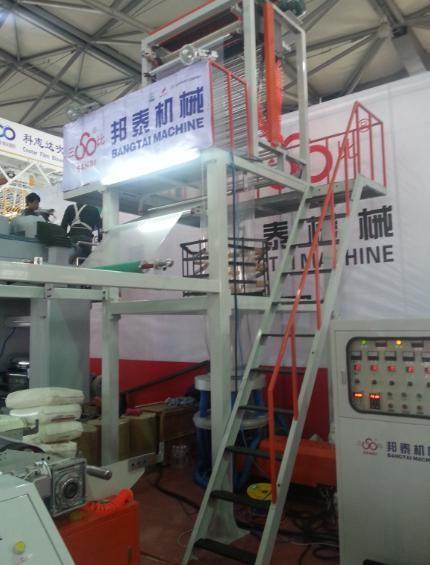

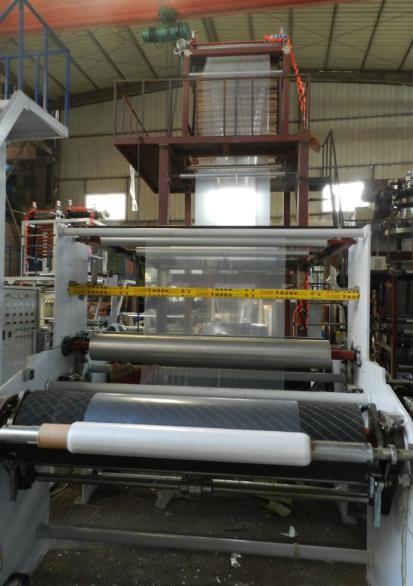

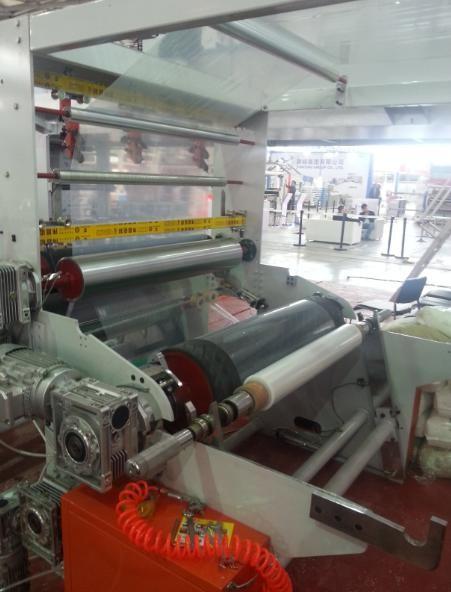

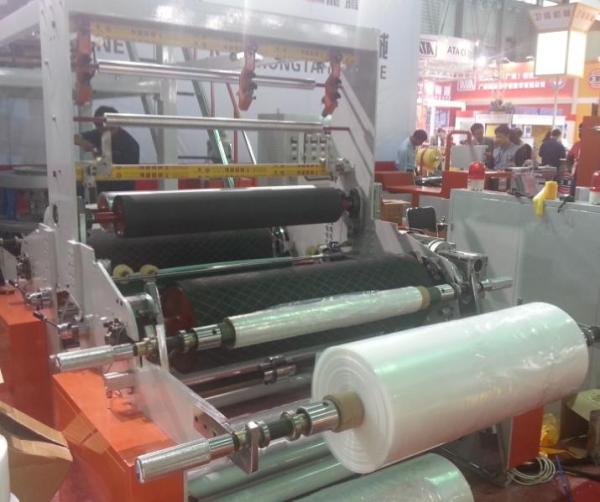

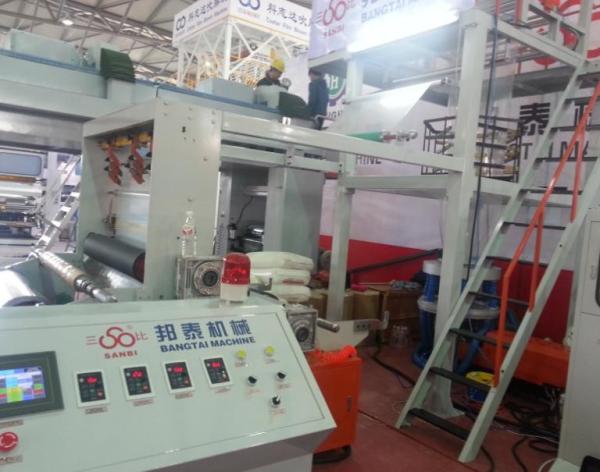

1200mm Rotary Die Head Plastic Film Blowing Machine With Auto Winder
1200mm Rotary Die Head Plastic Film Blowing Machine With Auto Winder
1200mm Rotary Die Head Plastic Film Blowing Machine With Auto Winder
1200mm Rotary Die Head Plastic Film Blowing Machine With Auto Winder
1200mm Rotary Die Head Plastic Film Blowing Machine With Auto Winder
1200mm Rotary Die Head Plastic Film Blowing Machine With Auto Winder
1200mm Rotary Die Head Plastic Film Blowing Machine With Auto Winder
1200mm Rotary Die Head Plastic Film Blowing Machine With Auto Winder
1200mm Rotary Die Head Plastic Film Blowing Machine With Auto Winder
1200mm Rotary Die Head Plastic Film Blowing Machine With Auto Winder
Specifications
Brand Name :
SANBI
Model Number :
SJ-B65-1
Certification :
CE ISO9001
Place of Origin :
ZHEJIANG OF CHINA
MOQ :
1 set
Price :
USD 20000- 25000 SET
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30 sets / month
Delivery Time :
25-30 work days
Packaging Details :
standard wooden package
Suitable Material :
HDPE/LDPE
Max.Folding Width of Film :
1200mm
Thickness of Film(mm) :
HDPE:0.01-0.07/LDPE :0.015-0.1
Max. Output :
65kg/h
Description

1200mm Rotary Die Head Plastic Film Blowing Machine With Auto Winder

Use:

  • It is used for blowing high and low pressure polyethylene, which has been widely used for producing laminating film, packing film, agricultural covering film, bag or film for textile and clothing and other packing material.
  • The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%.
  • The screw and material barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifing type.
  • No matter what size the film is, big or small, it can achieve the best effect of cooling.
Characteristics:
  1. Rotary die head : With this device will make film Uniform pressure
  2. Auto winder : Automatic cutting and change roller
Main Technical Parameter:

Model

SJ-B65-1

Screw Diameter

65MM

Screw Ratio

L/D30:1

Screw Speed

10-100r/min

Power of Main Motor

22KW

Power of traction main motor

1.5kw

Heating power(kw)

20kw

Main Output

65kg/h

Max.Folding Width of Film

400-1200mm

Single-sided Thickness of Film

0.008-0.1mm

Overall Dimensions

6000x2800x4800mm

Overseas Service is Avaliable:

1200mm Rotary Die Head Plastic Film Blowing Machine With Auto Winder 1200mm Rotary Die Head Plastic Film Blowing Machine With Auto Winder
