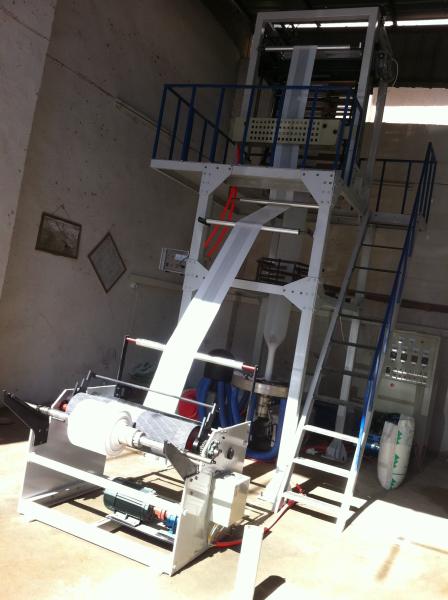

22-50KW Single Winder Polyethylene blown film extruder with gusset device
22-50KW Single Winder Polyethylene blown film extruder with gusset device
22-50KW Single Winder Polyethylene blown film extruder with gusset device
22-50KW Single Winder Polyethylene blown film extruder with gusset device
22-50KW Single Winder Polyethylene blown film extruder with gusset device
22-50KW Single Winder Polyethylene blown film extruder with gusset device
22-50KW Single Winder Polyethylene blown film extruder with gusset device
22-50KW Single Winder Polyethylene blown film extruder with gusset device
22-50KW Single Winder Polyethylene blown film extruder with gusset device
22-50KW Single Winder Polyethylene blown film extruder with gusset device
Specifications
Place of Origin :
CHINA
Brand Name :
SANBI
Certification :
CE, ISO9001
Model Number :
SJ-A50
MOQ :
1 sets
Price :
8000
Packaging Details :
wooden package
Delivery Time :
within 30 workdays
Payment Terms :
T/T, L/C
Supply Ability :
30sest/month
Description

Single Winder with gusset device LDPE/HD PE Film Blowing Machine used for packing all kinds of plastic bags

Quick Detail:


1.certificate: CE
2. high quality with the most competitive price
3.make special accoring to the client requirment

Condition

New

Application

Film

Plastic Processed

PE

Blow Moulding Type

Extrusion Blow Moulding

Automatic

Yes

Place of Origin

Zhejiang, China (Mainland)

Brand Name

SANBI

Model Number

SJ-A50/55/65/70

Voltage

380V / as request

Power(W)

22-50KW

Dimension(L*W*H)

6500*2500*5150mm

Weight

1.8/2.2/2.6/2.8T

Certification

ISO 9000 ,CE

Warranty

1 Year

After-sales Service Provided

Engineers available to service machinery overseas

Certificate

CE,ISO 9000

Material

HDPE,LDPE ,LLDPE

Product Type

Pe Film

Processing Type

Extruding Machine

quality

top quality

service

high quality service

Plastic Film Blowing Machine

Plastic Film Blowing Machine

type

Film Blowing Machine

supplier

trustworthy

The product

Popular worldwide


Description:


Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE).

Optional Equipment:


1)AUTO LOAD
2)CAST ALUM HEATER
3)AIR SHAFT
4)DIE ROTARY DEVICE
5)BOUBLE SIDES WINDER
6)UP AND DOWN

Applications:


It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
Specifications:

Model

SJ-A50

SJ-A55

SJ-A65

SJ-A65-1

Diameter of screw

φ50

φ55

φ65

φ65

Lay-flat width of film(mm)

100-600

200-800

300-1000

400-1200

Thickness of film(mm)

0.01-0.10

0.01-0.10

0.01-0.10

0.01-0.10

Max. output(kg/h)

35

50

65

80

L/D ratio of screw

28:1

28:1

28:1

28:1

Power of main motor(kw)

11

15

22

22

Power of Traction motor(kw)

1.1

1.1

1.5

1.5

Heating Power(kw)

11

13

19

21

Overall dimension(L*W*H) (m)

4.8*1.9*3.8

5.5*2.1*4.6

6.5*2.3*5.2

6.500*2.5*5.2

Weight(T)

1.5

2

2.3

2.6



PE Film Blowing Machine
