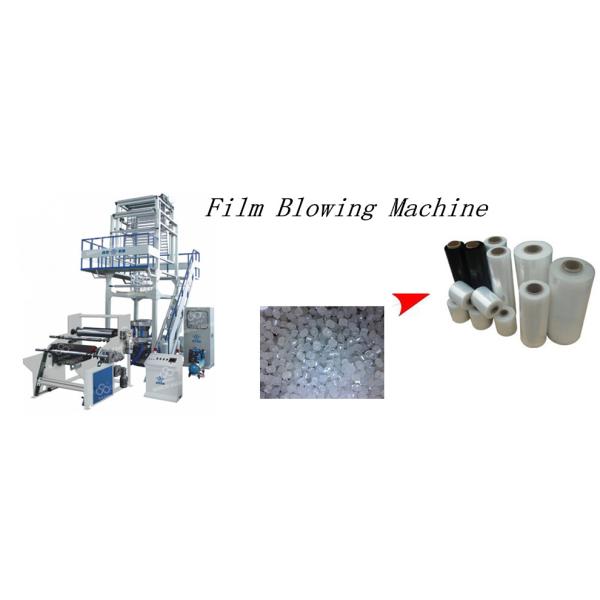

2000mm Single Layer Plastic Film Blowing Machine With Double Winder
2000mm Single Layer Plastic Film Blowing Machine With Double Winder
2000mm Single Layer Plastic Film Blowing Machine With Double Winder
2000mm Single Layer Plastic Film Blowing Machine With Double Winder
2000mm Single Layer Plastic Film Blowing Machine With Double Winder
2000mm Single Layer Plastic Film Blowing Machine With Double Winder
2000mm Single Layer Plastic Film Blowing Machine With Double Winder
2000mm Single Layer Plastic Film Blowing Machine With Double Winder
2000mm Single Layer Plastic Film Blowing Machine With Double Winder
2000mm Single Layer Plastic Film Blowing Machine With Double Winder
Specifications
Brand Name :
SANBI
Model Number :
SJ-C90
Certification :
CE ISO9001
Place of Origin :
ZHEJIANG OF CHINA
MOQ :
1 Set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
25 sets / month
Delivery Time :
around 30 work days
Packaging Details :
standard wooden package
Raw Material :
HDPE / LDPE
Screw Diameter :
90MM
Max.Folding Width of Film :
2000mm
Thickness of Film :
HDPE:0.01-0.07mm / LDPE :0.015-0.1mm
Max. Output :
120-150kg/h
Description

blown film extrusion machine , film blowing machine , film application plastic blowing machine , film type plastic machi

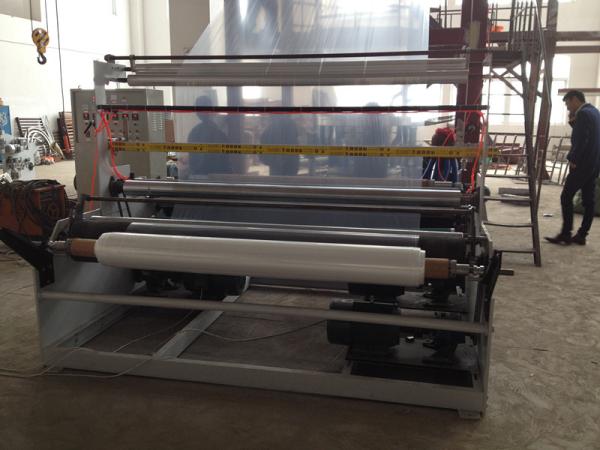

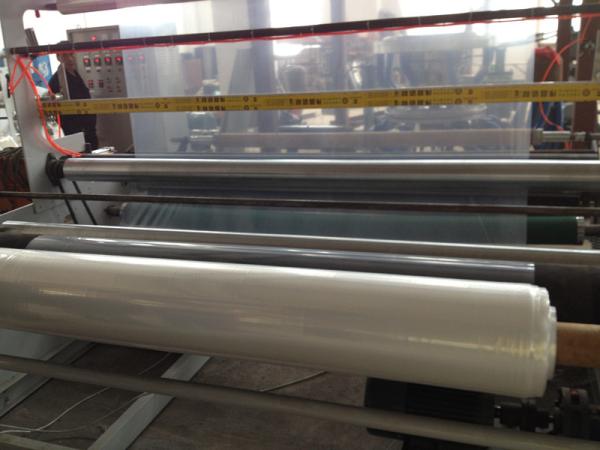

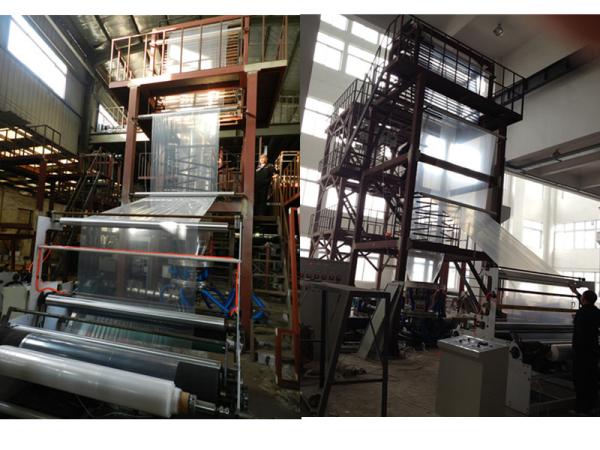

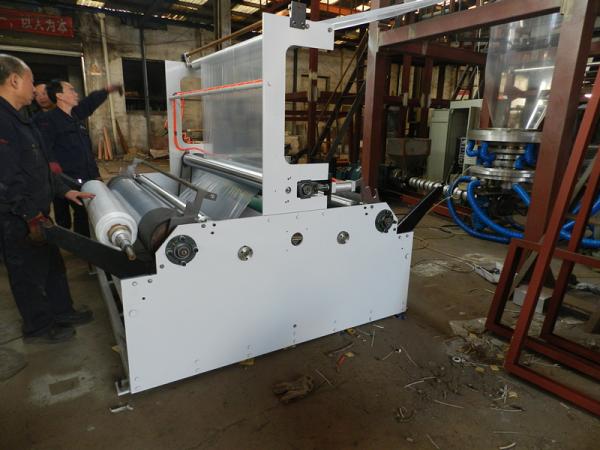

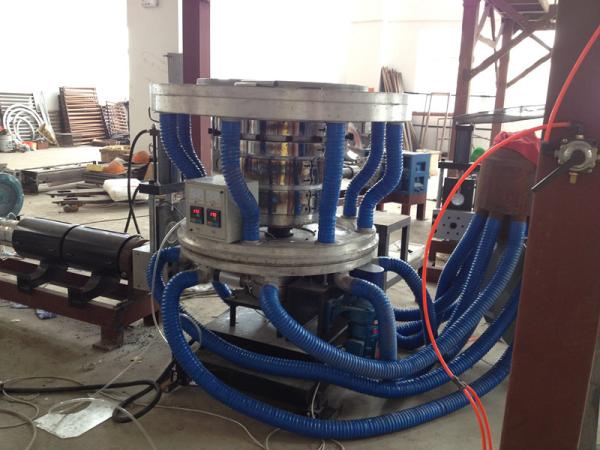

2000mm Single Layer Plastic Film Blowing Machine With Double Winder

USE:

It is used for blowing hith-low pressure polyethylene, which has been widely used for producing laminating film, agricultural covering film, bag or film for textile and clothing and other packing material. The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%. The screw and material barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is, big or small, it can achieve the best effect of cooling.

Main technical variables:

Model

SJ-C90

Screw Diameter

90MM

Screw Ratio

L/D30:1

Screw Speed

10-120r/min

Power of Main Motor

45KW

Power of traction main motor

2.2kw

Heating power(kw)

30kw

Main Output

120-150kg/h

Max.Folding Width of Film

2000mm

Single-sided Thickness of Film

0.008-0.1mm

Overall Dimensions

6200×3400×8000mm

Power supply 3 phase 220V 60HZ

2000mm Single Layer Plastic Film Blowing Machine With Double Winder

Optional equipment:

  1. Main motor: ABB Brand

  2. Inverter for main motor: DETAL brand

  3. Air shafts

  4. Auto loader

  5. Up and down

  6. 4 kw 2000mm digital corona treater
