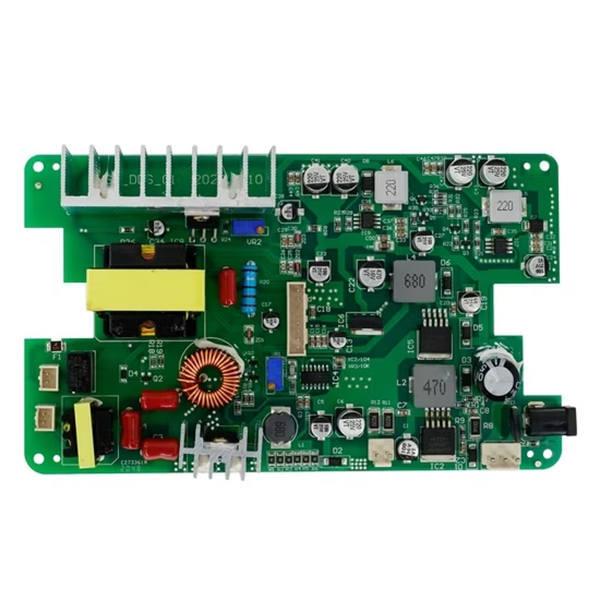

One Stop Turnkey Automotive PCBA Fab Service For Autonomous Driving Systems
One Stop Turnkey Automotive PCBA Fab Service For Autonomous Driving Systems
Specifications
MOQ :
1
Price :
Contact our PCB engineer
Payment Terms :
T/T
Layer :
6L
Min. Component Size :
01005
Board Thickness :
1.2mm
Surface Finish :
ENIG
Pin Space :
0.1mm
Test :
AOI,FCT,ICT
PCBA Service :
One Stop Turnkey PCBA Service
Application :
ECU
Description

High Speed Data Processing Automotive PCBA For Autonomous Driving Systems

♦ What's Automotive PCBA?

Automotive PCBA, is the core of automotive electronic systems.It fixes the electronic components on the PCB to form a complete circuit, which is used in various systems of the car.

♦ Features of Automotive Engine Control Unit PCBA

  • ​​Integrated Functions​​: Capable of integrating multiple functions, such as managing complex engine functions like turbocharging, variable valve timing, and hybrid power management. It can also integrate functions for body control modules, like lighting, door locks, and windows control.
  • ​​Customizable​​: The engineering team can provide customized PCBA solutions to meet specific requirements, such as integrating additional sensors, customizing control algorithms, or adapting communication interfaces.
  • ​​Compliance and Certification​​: Meets relevant automotive industry standards and certifications, ensuring product quality and reliability, and facilitating global market access.

♦ Types of Automotive PCB Assemblies:

​​Application​​ ​​PCB Requirements​​ ​​Examples​​
​​Engine Control Unit (ECU)​​ High-temperature resistance, EMI shielding Fuel injection, ignition timing
​​Infotainment System​​ High-speed signal integrity, multilayer Touchscreens, GPS, Bluetooth
​​ADAS (Radar/LiDAR)​​ RF/microwave PCBs, low-loss materials Collision avoidance, adaptive cruise control
​​EV Battery Management (BMS)​​ High-current PCBs, thermal management Cell balancing, charge monitoring
​​LED Lighting​​ Aluminum PCBs for heat dissipation Headlights, interior lightin

♦ DQS's PCB Assembly Capability

Item

Normal

Special

SMT

Assembly

PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm, W≥3mm

L＜2mm

Maximum

L≤800mm, W≤460mm

L ＞ 1200mm, W＞500mm

Thickness( T)

Thinnest

0.2mm

T＜0.1mm

Thickest

4 mm

T＞4.5mm

SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm＜T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch＜0.4mm

CSP/ BGA

Min ball space

0.5mm

0.3mm≤Pitch＜0.5mm

DIP

Assembly

PCB specification

Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L＜50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mm, W≥500mm

Thickness( T)

Thinnest

0.8mm

T＜0.8mm

Thickest

3.5mm

T＞2mm
