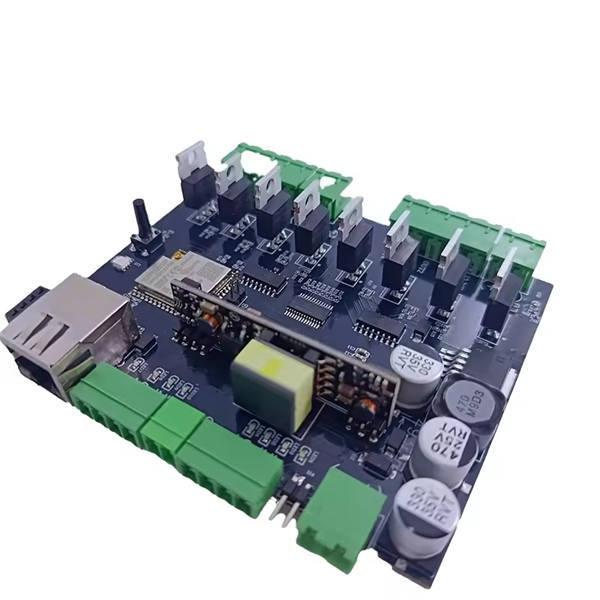

Engine Control Car PCB Board SMT PCBA 2.0mm Thickness Electronic Components
Engine Control Car PCB Board SMT PCBA 2.0mm Thickness Electronic Components
Specifications
MOQ :
1
Price :
Contact our PCB engineer
Payment Terms :
T/T
Layer :
12L
Min. Component Size :
0201
Board Thickness :
2.0 mm
Surface Finish :
ENIG
Pin Space :
0.1mm
Test :
AOI,FCT,ICT
Pcba Service :
One Stop Turnkey PCBA Service
Application :
ECU
Description

Automotive PCBA High Temperature Resistance and Vibration Resistance for Engine Control

♦ What's Automotive PCBA?

Automotive PCBA, is the core of automotive electronic systems.It fixes the electronic components on the PCB to form a complete circuit, which is used in various systems of the car.

♦ Features of Automotive Engine Control Unit PCBA

  • Precise Control​​: It can precisely control key engine parameters such as fuel injection, ignition timing, and intake air volume, ensuring the engine operates efficiently and stably under various conditions.
  • ​​High Reliability​​: Designed to withstand harsh automotive environments, including extreme temperatures, vibrations, and electromagnetic interference. Special packaging processes and anti-vibration designs are adopted to ensure the long-term reliability of components.
  • ​​Real-time Response​​: With high real-time response capabilities, it can quickly adjust engine operations according to changes in vehicle operating conditions, such as load and speed changes.

♦ Types of Automotive PCB Assemblies:

​​Application​​ ​​PCB Requirements​​ ​​Examples​​
​​Engine Control Unit (ECU)​​ High-temperature resistance, EMI shielding Fuel injection, ignition timing
​​Infotainment System​​ High-speed signal integrity, multilayer Touchscreens, GPS, Bluetooth
​​ADAS (Radar/LiDAR)​​ RF/microwave PCBs, low-loss materials Collision avoidance, adaptive cruise control
​​EV Battery Management (BMS)​​ High-current PCBs, thermal management Cell balancing, charge monitoring
​​LED Lighting​​ Aluminum PCBs for heat dissipation Headlights, interior lightin

♦ DQS's PCB Assembly Capability

Item

Normal

Special

SMT

Assembly

PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm, W≥3mm

L＜2mm

Maximum

L≤800mm, W≤460mm

L ＞ 1200mm, W＞500mm

Thickness( T)

Thinnest

0.2mm

T＜0.1mm

Thickest

4 mm

T＞4.5mm

SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm＜T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch＜0.4mm

CSP/ BGA

Min ball space

0.5mm

0.3mm≤Pitch＜0.5mm

DIP

Assembly

PCB specification

Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L＜50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mm, W≥500mm

Thickness( T)

Thinnest

0.8mm

T＜0.8mm

Thickest

3.5mm

T＞2mm
