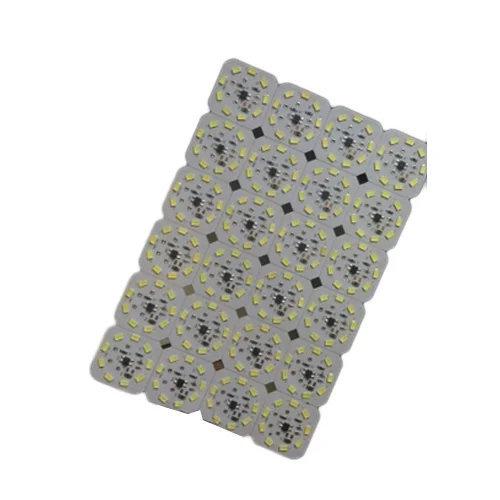

Intelligent Dimmer Modular Lighting PCB Assembly For Street Light Oem
Intelligent Dimmer Modular Lighting PCB Assembly For Street Light Oem
Specifications
MOQ :
1
Payment Terms :
T/T
Delivery Time :
5-30 word days
Layer :
6L
Base Material :
Al
Board Thickness :
1.2mm
Min. Hole Size :
0.2mm
Pin Space :
0.20mm
Testing Method :
Flying probe and AOI (Default)
PCB Assembly Method :
Mixed,BGA,SMT,Through-hole
Application :
​LED Landscape Light
Description

Intelligent Dimming Modular Design Lighting PCB Assembly LED Street Light PCBA

♦ What is Lighting PCB Assembly?

​​Lighting PCB Assembly is a specialized electronic assembly that integrates circuit boards with lighting components (e.g., LEDs, drivers) and control systems. It serves as the core functional unit in diverse lighting applications, combining electrical connectivity, thermal management, and intelligent control to enable efficient, durable, and feature-rich lighting solutions.

♦ LED Street Light PCBA Features​​

    • ​​High-efficiency drive​​: Integrated high-precision constant current drive circuit to ensure stable LED light emission, improve energy efficiency and extend the life of the light source.

    • ​​Strong heat dissipation design​​: Adopt metal substrate (such as aluminum-based PCB) and heat-conducting structure to quickly export LED heat and ensure reliable operation in high temperature environment.

    • ​​Intelligent control compatibility​​: Support light sensing, time control, wireless communication (such as Zigbee/PLC) module interface to achieve remote dimming, fault alarm and other intelligent management.

    • ​​High protection level​​: Through moisture-proof, dust-proof, salt spray-proof and UV-resistant design, it can adapt to outdoor extreme climate conditions (IP65 and above).

♦ Applications of Lighting PCBA:

    • ​​Residential & Commercial Lighting​​: Decorative fixtures, recessed lighting, panel lights, and architectural accents.
    • Automotive​​: Interior ambient lights, dashboard backlights, and signal indicators.
    • Industrial​​: Machine indicator lights, warehouse lighting, and harsh-environment fixtures.
    • Consumer Electronics​​: Backlights for screens, keyboard illumination, and appliance status lights.

♦ Technical Parameters

PCB Assembly Capability

Item

Normal

Special

SMT

Assembly

PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm, W≥3mm

L＜2mm

Maximum

L≤800mm, W≤460mm

L ＞ 1200mm, W＞500mm

Thickness( T)

Thinnest

0.2mm

T＜0.1mm

Thickest

4 mm

T＞4.5mm

SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm＜T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch＜0.4mm

CSP/ BGA

Min ball space

0.5mm

0.3mm≤Pitch＜0.5mm

DIP

Assembly

PCB specification

Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L＜50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mm, W≥500mm

Thickness( T)

Thinnest

0.8mm

T＜0.8mm

Thickest

3.5mm

T＞2mm

♦ One-Stop PCBA Solution

Intelligent Dimmer Modular Lighting PCB Assembly For Street Light Oem Intelligent Dimmer Modular Lighting PCB Assembly For Street Light Oem Intelligent Dimmer Modular Lighting PCB Assembly For Street Light Oem Intelligent Dimmer Modular Lighting PCB Assembly For Street Light Oem
PCBA Prototype Industrial Control PCBA Telecom PCBA Medical PCBA
Intelligent Dimmer Modular Lighting PCB Assembly For Street Light Oem Intelligent Dimmer Modular Lighting PCB Assembly For Street Light Oem Intelligent Dimmer Modular Lighting PCB Assembly For Street Light Oem Intelligent Dimmer Modular Lighting PCB Assembly For Street Light Oem
Automotive PCBA Consumer Electronic PCBA LED PCBA Security PCBA

♦ Advantages of DQS Team
  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines

2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%

3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
