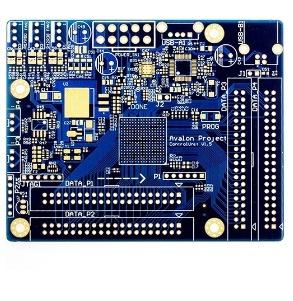

Taconic RF35 High Frequency PCB Multilayer Printed Circuit Board Custom
Taconic RF35 High Frequency PCB Multilayer Printed Circuit Board Custom
Specifications
MOQ :
1
Price :
Send us Gerber file for free quotation
Payment Terms :
T/T
Layer :
18 Layer
Material :
Taconic RF-35
Thickness :
2.5mm
Min. Line Width/Space :
0.1/0.1mm
Copper Thickness :
2.5OZ
Surface treatment :
Immersion Gold
Application :
Radar
Certificate :
UL & IPC Standard & ISO
Description

Taconic RF-35 High Frequency Board

♦ What's Taconic RF-35?

Taconic RF-35​​ is a high-performance ​​PTFE (Teflon)-based laminate​​ engineered for ​​RF/microwave and high-frequency PCB applications​​. Known for its ​​ultra-low signal loss and stable dielectric properties​​, it’s widely used in ​​5G, aerospace, radar, and satellite systems​​ where standard FR-4 or even some Rogers materials fall short.

Taconic RF35 High Frequency PCB Multilayer Printed Circuit Board Custom Taconic RF35 High Frequency PCB Multilayer Printed Circuit Board Custom Taconic RF35 High Frequency PCB Multilayer Printed Circuit Board Custom

♦ ​​Key Features of Rogers PCBs​

✅ ​​Low Dielectric Loss (Df)​​ – Minimizes signal attenuation at high frequencies.
✅ ​​Stable Dielectric Constant (Dk)​​ – Consistent performance across temperatures/frequencies.
✅ ​​Excellent Thermal Management​​ – Handles high-power RF/microwave circuits.
✅ ​​Low Moisture Absorption​​ – Maintains performance in humid environments.
✅ ​​High-Frequency Suitability​​ – Ideal for ​​5G, radar, satellites, and mmWave systems​​.

♦ ​​​​Key Properties of Taconic RF-35​​

Property Value Importance
​​Dielectric Constant (Dk)​​ 3.5 ± 0.05 @ 10 GHz Ensures consistent impedance control
​​Dissipation Factor (Df)​​ 0.0018 @ 10 GHz Minimizes signal loss at high frequencies
​​Thermal Conductivity​​ 0.6 W/mK Better heat dissipation than FR-4
​​Moisture Absorption​​ < 0.02% Stable performance in humid environments
​​Operating Temperature​​ -55°C to +260°C Reliable in extreme conditions

♦ ​​​​​​Comparison with Competing Materials​​

Material Dk @ 10 GHz Df @ 10 GHz Cost Best For
​​Taconic RF-35​​ 3.5 0.0018 $$$ High-reliability RF/microwave
​​Rogers RO4350B​​ 3.48 0.0037 $$ Cost-sensitive RF designs
​​PTFE (Generic Teflon)​​ 2.1 0.0004 $$$$ Ultra-low-loss mmWave
​​FR-4​​ 4.3–4.8 0.02 $ Low-frequency, non-RF use

♦ Technical Parameters

Item

Specification

Laers

1~64

Board thickness

0.1mm-7.0mm

Material

FR-4,CEM-1/CEM-3,PI,High Tg,Rogers

Max panel size

32"×48"(800mm×1200mm)

Min hole size

0.075mm

Min line width

3mil(0.075mm)

Surface finish

OSP,HASL,Imm Gold/Nickel/Ag, Electric gold

Copper thickness

0.5-7.0OZ

Soldermask

Green/Yellow/Black/White/Red/Blue

Silkscreen

Red/Yellow/Black/White

Min PAD

5mil(0.13mm)

Inter package

Vacuum

Outer package

Carton

Outline tolerance

±0.75mm

Hole tolerance

PTH:±0.05 NPTH:±0.025

Certificate

UL,ISO 9001,ISO14001,IATF16949

Special request

Blind hole+Gold finger + BGA

Material Suppilers

Shengyi, KB, Nanya, ITEQ,etc.

♦ One-Stop PCBs Solution

Taconic RF35 High Frequency PCB Multilayer Printed Circuit Board Custom Taconic RF35 High Frequency PCB Multilayer Printed Circuit Board Custom Taconic RF35 High Frequency PCB Multilayer Printed Circuit Board Custom Taconic RF35 High Frequency PCB Multilayer Printed Circuit Board Custom
PCB Prototype Felx PCB Rigid-Flex PCB Aluminium PCB
Taconic RF35 High Frequency PCB Multilayer Printed Circuit Board Custom Taconic RF35 High Frequency PCB Multilayer Printed Circuit Board Custom Taconic RF35 High Frequency PCB Multilayer Printed Circuit Board Custom Taconic RF35 High Frequency PCB Multilayer Printed Circuit Board Custom
Heavy Copper PCB HDI PCB High Frequency PCB High TG PCB

♦ Advantages of DQS Team
  1. On-time Delivery:
    • Owned PCBA factories 15,000㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines

2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%

3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
