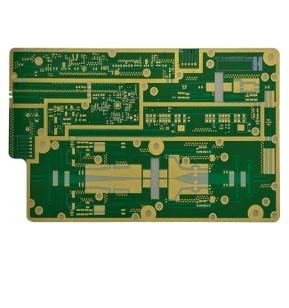

Custom High Frequency Circuit Aluminum PCB Board Soldering Rogers RO4350B
Custom High Frequency Circuit Aluminum PCB Board Soldering Rogers RO4350B
Specifications
MOQ :
1
Price :
Send us Gerber file for free quotation
Payment Terms :
T/T
Layer :
6 Layer
Material :
Rogers RO4350B
Thickness :
1.5mm
Min. Line Width/Space :
0.1/0.1mm
Copper Thickness :
1.5OZ
Surface treatment :
Immersion Gold
Application :
Radar
Certificate :
UL & IPC Standard & ISO
Description

Rogers RO4350B High Frequency Board

♦ What's Rogers PCB?

A ​​Rogers PCB​​ is a high-performance printed circuit board made using ​​Rogers Corporation's advanced laminate materials​​ instead of standard FR-4. These materials are engineered for ​​high-frequency, high-speed, and RF/microwave applications​​ where signal integrity, thermal management, and low dielectric loss are critical.

Custom High Frequency Circuit Aluminum PCB Board Soldering Rogers RO4350B Custom High Frequency Circuit Aluminum PCB Board Soldering Rogers RO4350B Custom High Frequency Circuit Aluminum PCB Board Soldering Rogers RO4350B

♦ ​​Key Features of Rogers PCBs​

✅ ​​Low Dielectric Loss (Df)​​ – Minimizes signal attenuation at high frequencies.
✅ ​​Stable Dielectric Constant (Dk)​​ – Consistent performance across temperatures/frequencies.
✅ ​​Excellent Thermal Management​​ – Handles high-power RF/microwave circuits.
✅ ​​Low Moisture Absorption​​ – Maintains performance in humid environments.
✅ ​​High-Frequency Suitability​​ – Ideal for ​​5G, radar, satellites, and mmWave systems​​.

♦ ​​Common Rogers PCB Materials​​

Material Series Key Properties Typical Applications
​​RO4000®​​ (RO4350B, RO4835) Low-cost, FR-4-like processability 5G antennas, automotive radar
​​RT/duroid®​​ (RT5880, RT6002) Ultra-low loss, PTFE-based Aerospace, military RF systems
​​TMM®​​ Thermally conductive, ceramic-filled Power amplifiers, base stations
​​RO3000®​​ (RO3003, RO3010) Low Dk, stable with temperature mmWave, satellite comms

♦ ​​​​Why Use Rogers Instead of FR-4?​​

Parameter Rogers PCB FR-4 PCB
​​Frequency Range​​ Up to 100+ GHz < 2 GHz
​​Dielectric Loss (Df)​​ 0.001–0.004 0.02+
​​Thermal Conductivity​​ 0.5–1.5 W/mK 0.3 W/mK
​​Cost​​ 3–10x higher Low

♦ Technical Parameters

Item

Specification

Laers

1~64

Board thickness

0.1mm-7.0mm

Material

FR-4,CEM-1/CEM-3,PI,High Tg,Rogers

Max panel size

32"×48"(800mm×1200mm)

Min hole size

0.075mm

Min line width

3mil(0.075mm)

Surface finish

OSP,HASL,Imm Gold/Nickel/Ag, Electric gold

Copper thickness

0.5-7.0OZ

Soldermask

Green/Yellow/Black/White/Red/Blue

Silkscreen

Red/Yellow/Black/White

Min PAD

5mil(0.13mm)

Inter package

Vacuum

Outer package

Carton

Outline tolerance

±0.75mm

Hole tolerance

PTH:±0.05 NPTH:±0.025

Certificate

UL,ISO 9001,ISO14001,IATF16949

Special request

Blind hole+Gold finger + BGA

Material Suppilers

Shengyi, KB, Nanya, ITEQ,etc.

♦ One-Stop PCBs Solution

Custom High Frequency Circuit Aluminum PCB Board Soldering Rogers RO4350B Custom High Frequency Circuit Aluminum PCB Board Soldering Rogers RO4350B Custom High Frequency Circuit Aluminum PCB Board Soldering Rogers RO4350B Custom High Frequency Circuit Aluminum PCB Board Soldering Rogers RO4350B
PCB Prototype Felx PCB Rigid-Flex PCB Aluminium PCB
Custom High Frequency Circuit Aluminum PCB Board Soldering Rogers RO4350B Custom High Frequency Circuit Aluminum PCB Board Soldering Rogers RO4350B Custom High Frequency Circuit Aluminum PCB Board Soldering Rogers RO4350B Custom High Frequency Circuit Aluminum PCB Board Soldering Rogers RO4350B
Heavy Copper PCB HDI PCB High Frequency PCB High TG PCB

♦ Advantages of DQS Team
  1. On-time Delivery:
    • Owned PCBA factories 15,000㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines

2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%

3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
