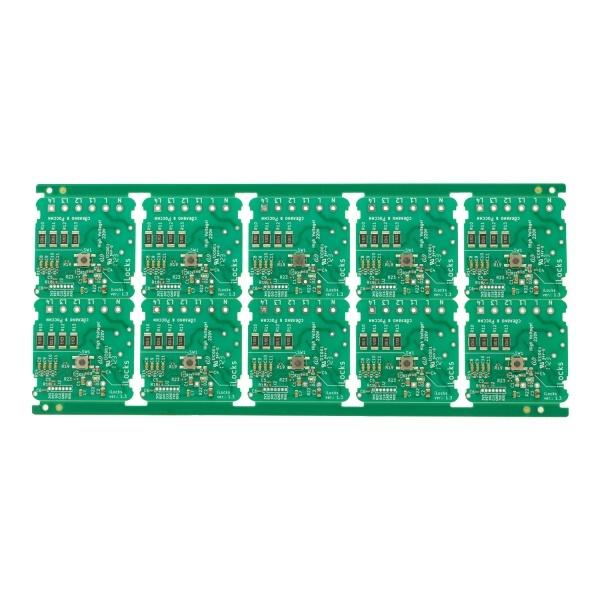

High Quality Mobile Phone PCB Production
♦ What's Mobile Phone PCB Production?
Mobile Phone PCB Production is the process of designing and fabricating the printed circuit boards (PCBs) that serve as the backbone of smartphones. It involves several key stages:
1. Design & Layout: Engineers use specialized software to create a multi-layer schematic that positions components like the processor, memory, and antennas for optimal performance and minimal space usage.
2. Material Selection: High-performance substrates (e.g., FR-4, polyimide, or advanced low-loss laminates) are chosen based on electrical, thermal, and mechanical requirements, especially for 5G and high-speed signals.
3. Fabrication:
4. Assembly: Surface-Mount Technology (SMT) places and solders tiny components; through-hole parts are added if needed. Automated optical and X-ray inspections ensure joint quality.
5. Testing & Integration: Electrical tests, signal-integrity checks, and thermal cycling verify reliability before the PCB is integrated into the phone chassis.
♦ Technical Parameters
Item | Specification |
Laers | 1~64 |
Board thickness | 0.1mm-10.0mm |
Material | FR-4,CEM-1/CEM-3,PI,High Tg,Rogers |
Max panel size | 32"×48"(800mm×1200mm) |
Min hole size | 0.075mm |
Min line width | 3mil(0.075mm) |
Surface finish | OSP,HASL,Imm Gold/Nickel/Ag, Electric gold |
Copper thickness | 0.5-15 OZ |
Soldermask | Green/Yellow/Black/White/Red/Blue |
Silkscreen | Red/Yellow/Black/White |
Min PAD | 5mil(0.13mm) |
Inter package | Vacuum |
Outer package | Carton |
Outline tolerance | ±0.75mm |
Hole tolerance | PTH:±0.05 NPTH:±0.025 |
Certificate | UL,ISO 9001,ISO14001,IATF16949 |
Special request | Blind hole+Gold finger + BGA |
Material Suppilers | Shengyi, KB, Nanya, ITEQ,etc. |
