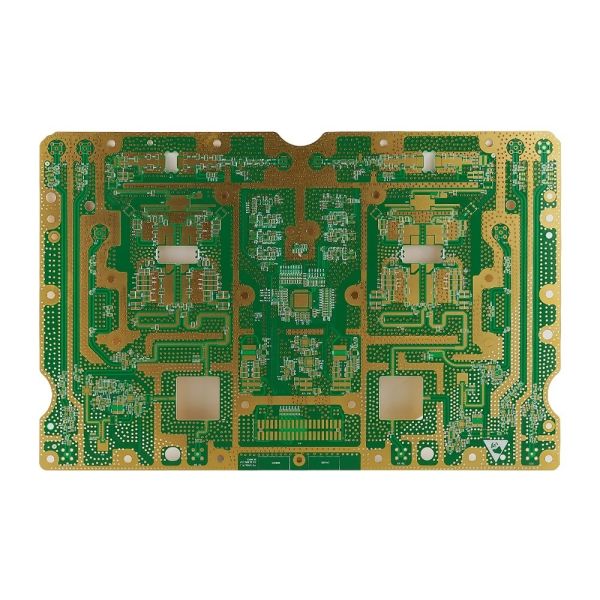

12 Layer Rogers PCB Security Device with HASL Green Soldermask
12 Layer Rogers PCB Security Device with HASL Green Soldermask
Specifications
MOQ :
1
Price :
Contact us
Payment Terms :
T/T
Layer :
12 Layer
Base Material :
Rogers
Thickness :
1.0 mm
Copper Thickness :
2.0 OZ
Board Size :
Customized
Min. Line Width/Space :
0.10/0.10mm
Surface Treatment :
ENIG/Immersion Gold
Certificate :
UL,IATF16949,ISO&Reach
Description
12 Layer Rogers PCB Security Device with HASL Green Soldermask
What's Rogers PCB?

Rogers PCB is a high-performance printed circuit board built with dielectric materials manufactured by Rogers Corporation. Instead of the standard epoxy-glass FR-4, Rogers laminates use ceramic-filled hydrocarbon or PTFE composites that deliver far superior electrical properties at RF/microwave frequencies.

Key Points of Rogers PCB
    • Low and tightly controlled dielectric constant (Dk 2.2 – 3.5 typical), so impedance stays stable across frequency
    • Very low loss tangent (Df 0.001 – 0.003), minimizing signal attenuation at GHz frequencies
    • Excellent thermal conductivity (0.5-0.95 W/m·K) and low CTE, giving good heat spreading and dimensional stability
    • Water absorption <0.08 %, so electrical performance is little affected by humidity
12 Layer Rogers PCB Security Device with HASL Green Soldermask
Technical Parameters
Item Specification
Layers 1~64
Board thickness 0.1mm-10.0mm
Material FR-4,CEM-1/CEM-3,PI,High Tg,Rogers
Max panel size 32"×48"(800mm×1200mm)
Min hole size 0.075mm
Min line width 3mil(0.075mm)
Surface finish OSP,HASL,Imm Gold/Nickel/Ag, Electric gold
Copper thickness 0.5-15 OZ
Soldermask Green/Yellow/Black/White/Red/Blue
Silkscreen Red/Yellow/Black/White
Min PAD 5mil(0.13mm)
Inter package Vacuum
Outer package Carton
Outline tolerance ±0.75mm
Hole tolerance PTH:±0.05 NPTH:±0.025
Certificate UL,ISO 9001,ISO14001,IATF16949
Special request Blind hole+Gold finger + BGA
Material Suppliers Shengyi, KB, Nanya, ITEQ,etc.


Advantages of DQS Team
On-time Delivery:
  • Owned PCBA factories 15,000 ㎡
  • 13 fully automatic SMT lines
  • 4 DIP assembly lines
Quality Guaranteed:
  • IATF, ISO, IPC, UL standards
  • Online SPI, AOI, X-Ray Inspection
  • The qualified rate of products reach 99.9%
Premium Service:
  • 24H reply your inquiry
  • Perfect after-sales service system
  • From prototype to mass production
