Industrial-Grade SMT & Assembly Excellence
At PCBGATE, our SMT and Assembly facility is the heart of our high-precision manufacturing. We don't just assemble components; we ensure the long-term reliability of your electronic products through advanced automation and rigorous quality control.

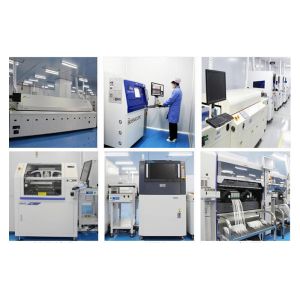

Advanced SMT Production Lines
Our factory is equipped with state-of-the-art, high-speed automated SMT lines capable of handling the most complex designs.Whether it’s high-density multilayer boards or flexible circuits (FPC), our SMT process is optimized for zero-defect production.

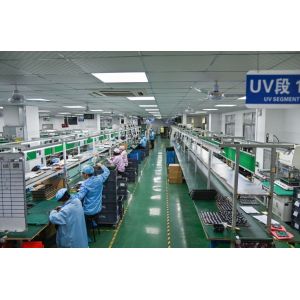

Full-Spectrum Assembly & Soldering
We offer a complete range of assembly solutions, including Surface Mount (SMT), Through-Hole (THT), and Manual Assembly for specialized components. Our reflow soldering and wave soldering processes are strictly monitored for thermal profiles, ensuring robust solder joints that withstand harsh industrial environments. We strictly adhere to RoHS (Lead-free) standards to meet global environmental requirements.
Turnkey Reliability
By integrating PCB fabrication with professional assembly, we eliminate the risks of multi-vendor coordination. From BOM sourcing to final box-build, our SMT & Assembly services provide a seamless, high-speed path from your design files to a market-ready product.

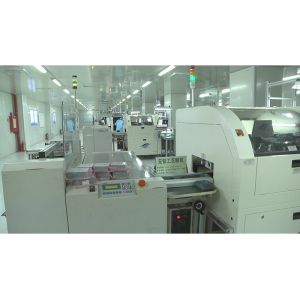

High-Capacity Manufacturing Infrastructure
Our facility features a robust production architecture designed for seamless scalability. Equipped with 8 high-speed SMT (Surface Mount Technology) lines and 6 dedicated DIP (Dual In-line Package) stations, we provide the extensive throughput required for rapid-turn prototyping and high-volume global distribution.
This multi-line configuration allows for simultaneous project execution, ensuring consistent lead times and operational flexibility for complex electronic assemblies.
By synchronizing these high-precision technologies, we ensure superior solder integrity and mechanical stability across all PCBA projects, meeting the most demanding industrial and medical standards.
This diverse production capability enables us to navigate complex manufacturing requirements, providing the stability and transparency your supply chain demands.
Uncompromising Quality Control (QC) Standards
At PCBGATE, quality is the foundation of our manufacturing process. We implement a multi-layer Quality Management System (QMS) that monitors every stage of production—from raw material inspection to final product verification—ensuring that every board meets the most rigorous international standards.
1. IQC: Incoming Quality Control
The journey of a high-quality PCB starts with premium materials. Our IQC team conducts strict inspections on all incoming raw materials, including copper-clad laminates (CCL), chemical solutions, and electronic components. We only partner with industry-leading suppliers to ensure consistency and reliability from the very beginning.
2. IPQC: In-Process Quality Control
Quality is built into the process, not just inspected at the end. During fabrication and SMT assembly, our IPQC team performs real-time monitoring:
-
First Article Inspection (FAI): Every new production run begins with a strictly verified first-off sample.
-
Automated Optical Inspection (AOI): High-speed 3D AOI systems detect solder paste deposition, component placement, and soldering integrity.
-
X-Ray Inspection: Essential for BGA, QFN, and hidden solder joints to ensure internal connectivity and structural soundness.
3. FQC & OQC: Final & Outgoing Quality Control
Before any product leaves our facility, it undergoes a battery of final tests to ensure 100% functionality:
-
Electrical Testing (E-Test): 100% netlist testing using flying probe or fixture-based testers to ensure zero open or short circuits.
-
Visual Inspection: High-magnification microscopy to verify surface finish, solder mask registration, and silk-screen clarity.
-
Reliability Testing: Includes thermal shock tests, solderability tests, and ionic contamination testing to ensure long-term performance in harsh environments.
4. Traceability & Certification
We operate under strict ISO 9001:2015 and UL certifications. Every batch is assigned a unique tracking code, providing full traceability of materials, operators, and machine parameters. This transparency gives our global partners, from aerospace to medical industries, complete peace of mind.
The Experts Behind Your Precision
At PCBGATE, our team is a synergy of seasoned engineers, meticulous quality auditors, and dedicated project managers. We operate as a unified force, combining decades of technical expertise with a shared commitment to manufacturing excellence.
From initial DFM analysis to final logistics, our collaborative approach ensures that every project is executed with maximum efficiency and technical integrity.
Dedicated Support, Global Perspective
Efficiency is our standard; your success is our mission. Our team is built on a culture of proactive communication and rapid response. We don't just process orders; we listen to your specific requirements and anticipate potential challenges before they arise.
By blending professional rigor with a client-first mindset, we ensure a seamless and supportive experience through every stage of the production lifecycle.
Driven by Excellence, United by Integrity
Our strength lies in our people. PCBGATE brings together a diverse group of specialists dedicated to the art of precision electronics. United by a culture of accountability and high-performance standards, we work as one to deliver the stability and transparency your innovations deserve.
Our Journey: Precision in Motion
Established with a vision to redefine PCB manufacturing standards, PCBGATE began as a specialized prototyping facility. Over the years, we have evolved into a strategic global partner, bridging the gap between complex engineering and large-scale deployment.
Through consistent investment in high-precision technology and a robust quality framework, we have built a legacy of reliability, supporting innovators in the medical, automotive, and industrial sectors worldwide.
A Legacy of Global Connectivity
What started as a local technical mission has grown into a cross-border success story. PCBGATE was founded on the principles of integrity and operational excellence.
By integrating advanced fabrication with strategic component sourcing, we have successfully navigated the complexities of the global supply chain. Today, we stand as a trusted link for partners across Europe, the Middle East, and beyond, delivering consistent quality that transcends borders.
Built on Integrity, Driven by Excellence
At PCBGATE, our history is measured by the challenges we’ve solved and the trust we’ve earned. From our earliest technical milestones to our current standing as a precision electronics partner, our focus has remained unchanged: to provide the stability and transparency that modern innovation demands.
We don’t just manufacture boards; we build the foundations for tomorrow’s technology.
Technical Mastery: Beyond Standard Manufacturing
At PCBgate, we thrive on the "unsolvable." We specialize in the high-difficulty, high-reliability boards that standard manufacturers avoid:
1. High-Layer Precision: Advanced fabrication from 1 to 38 layers, ensuring flawless signal integrity and thermal performance for dense electronic architectures.
2. Specialized Materials: Expert processing of high-performance substrates including Rogers, Arlon, and Teflon for high-frequency and high-speed applications.
3. Complex Processes: Mastery in HDI (Any-layer), Rigid-Flex, Thick Copper, and custom surface treatments tailored for extreme environments.
Global Reach & Industry Expertise
Our products power critical systems in over 50 countries across Europe, the Americas, the Middle East, and West Asia. We have built a reputation for excellence in mission-critical sectors:
1. Smart Infrastructure: Global leader in Utility Metering (Smart Water, Gas, Electricity, and Heat meters).
2. Life Sciences & Medical: Precision manufacturing for Hearing Aids and advanced Medical Devices.
3. Security & Automotive: High-reliability solutions for Alarm/Security systems, Auto Parts, and EV Chargers.
4. Emerging Technology: Powering the next generation of AI Glasses, Electronic Shelf Labels (ESL), RFID, and POS/Printers.
5. Critical Applications: Supporting high-stakes projects in Military-grade electronics,high-performance Antenna and industrial control systems.
Seamless End-to-End Solutions
From initial design analysis to large-scale deployment, we provide integrated PCB and component solutions. We bridge the gap between complex engineering and efficient manufacturing, ensuring your innovations are delivered with precision, integrity, and operational excellence.
Empowering Your Supply Chain
We specialize in high-precision PCB fabrication and strategic component sourcing. By combining technical expertise with a robust quality framework, we help industry leaders optimize their product performance and maintain a competitive edge in the global market.
