SMT High Precision Vertical Dual-Station Laser Soldering Machine for PCB & FPC
SMT High Precision Vertical Dual-Station Laser Soldering Machine for PCB & FPC
Specifications
Certification :
CE
Supply Ability :
1000
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
20work days
Brand Name :
YUSH
Price :
USD 29000
Packaging Details :
wooden case
Place of Origin :
China,Guangdong
MOQ :
1
Description
SMT High Precision Vertical Dual-Station Laser Soldering Machine for PCB & FPC
Advanced Laser Soldering Technology
This high-precision vertical dual-station laser soldering machine delivers exceptional performance for PCB and FPC applications with advanced temperature monitoring and non-contact soldering capabilities.
Key Advantages

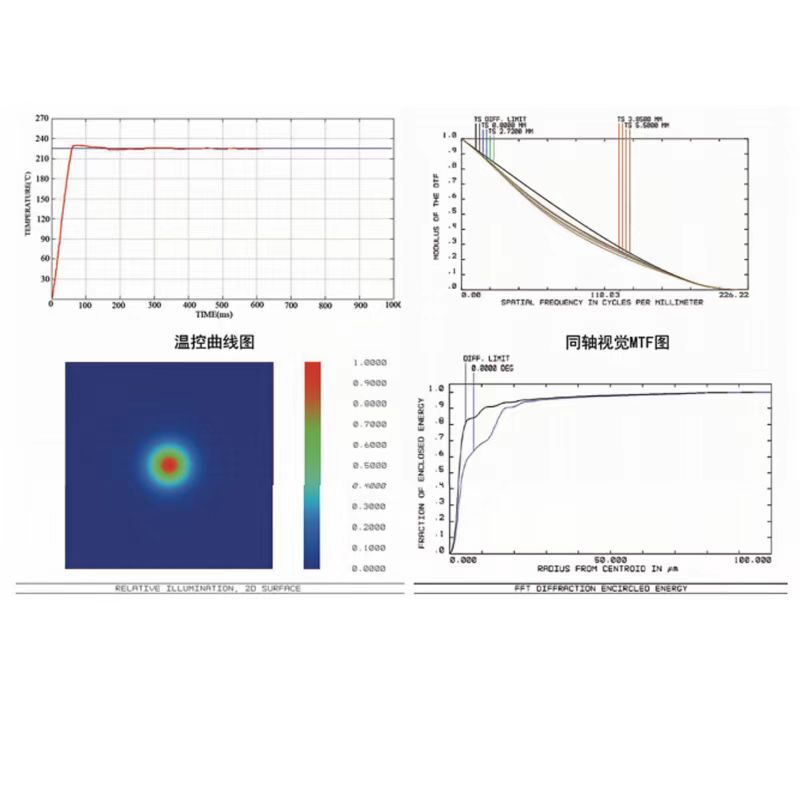

  • Infrared temperature sensor monitors solder joint temperature in real-time, preventing component damage from excessive heat
  • Non-contact operation eliminates stress on workpieces
  • Quantified soldering data for easy analysis and process optimization
  • Fast laser heating rate enables high soldering speed
  • CCD vision positioning ensures exceptional accuracy
  • Five-light coaxial achromatic optical system expands soldering process capabilities
  • Unique PC-based software control system with user-friendly interface and comprehensive functionality
SMT High Precision Vertical Dual-Station Laser Soldering Machine for PCB & FPC
Technical Specifications
Power Supply AC 220V ±10V
Equipment Power Consumption 1200W
Solder Material Specifications Compatible with solder wire and solder paste
Operating Environment 25°C ±5°C
Positioning Method CCD Vision Automatic Positioning
Laser Power 70W / 100W / 150W
Working Distance 100mm - 130mm (Optical Continuous Adjustable Technology)
Product Dimensions 1100 × 110 × 1850mm
Effective Travel Distance 300 × 300 × 150mm (Customizable)
Spot Type Circular Spot / Special-shaped Spot (Optional)
Repeatability Accuracy ≤ 0.02mm
CCD Positioning Accuracy ≤ 0.03mm
Programming Method Visual Programming, PC Operation
Temperature Control Method Real-time Temperature Control
Precision Engineering
Designed for high-volume PCB and FPC production, this laser soldering machine combines precision positioning with advanced temperature control to deliver consistent, high-quality results.
