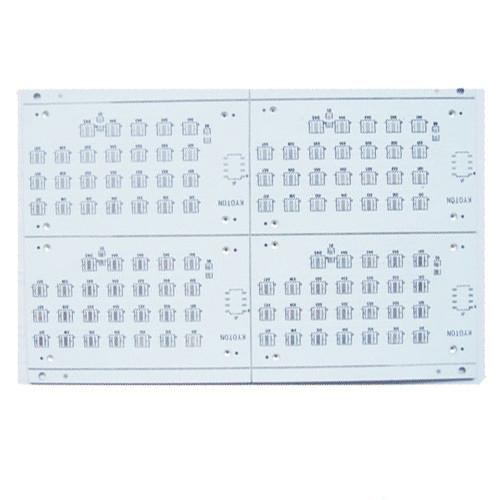

Aluminum Core LED MC Single Sided PCB Board Prototype

Specification:

Layer:1

Material: Aluminum (metal core)

Thermal conductivity: 0.8, 1.5, 2.0, 3.0 W/m.K.

Thickness:0.5-3mm

Copper thickness:0.5-10OZ

Outline: Routing, punching, V-Cut

Solde rmask: White/Black/Blue/Green/Red Oil

Legend/Silkscreen Color: Black/White

Surface finishing: Immersion Gold, HASL, OSP

Max Panel size: 600*500mm

Packing: Vacuum/Plastic bag

Application: LED fields

LED aluminum PCBcharacteristics, structure and function

Aluminum is one of the best materials for making heat sink

LED heat dissipation problem is LED manufacturers the most difficult problem, but can be used aluminum plates, because of the high thermal conductivity of aluminum PCB, heat, and can effectively export the internal heat. Aluminum plate is a unique metal-based CCL, with good thermal conductivity, electrical insulation properties and machinability. We should try to be close to the aluminum base PCB design, reducing the thermal resistance potting segment generated.

The main material is aluminum, and shapes vary depends on actual production.

Aluminum PCB:

Aluminum PCB Board
Al PCB
Aluminum Base PCB
Led PCB
Circle Aluminum PCB
Led Strip Aluminum PCB
Lighting Aluminum PCB
China Aluminum PCB Board
Aluminum PCB Supplier
Led PCB manufacturer

Advantages of aluminum pcb:

High thermal conductivity for applications that require a thick dielectric.
Thermal conductivity is 2.0~3.0 W/ mk.
Dielectric thickness is 102mm~305mm.
It’s widely used in street lights using LEDs, large format LCD TVs, General lighting and so on.

The structure of the metal core PCB(Aluminum PCB):

Aluminum base CCL(copper clad laminate) is a kind of raw material of metal PCB, which is consist of copper foil, thermal insulation layer and metal substrate, its structure in three layers:
Circuit Layer: equivalent to ordinary PCB copper clad laminate, thickness of copper foil from loz to 10 oz.
Dielectric Layer: dielectric Layer is a kind of material with thermal insulation and low thermal resistance. thickness from 0.003 "to 0.006" which is the core technology of the aluminum base copper clad laminate. It has achieved the UL certification.
Base Layer: Base layer is metal core, normally it is aluminum base or copper base.

The metal core of the thermal PCB can be aluminum (aluminum core PCB), copper (copper core PCB or a heavy copper PCB) or a mixture of special alloys. The most common is an aluminum core PCB.
The thickness of metal cores in PCB base plates is typically 30 mil - 125 mil, but thicker and thinner plates are possible.
