KCO-ODB-72A 72 Port Fiber Optic Terminal Box 96 Fiber Wall Pole Mount Metallic Type
KCO-ODB-72A 72 Port Fiber Optic Terminal Box 96 Fiber Wall Pole Mount Metallic Type
KCO-ODB-72A 72 Port Fiber Optic Terminal Box 96 Fiber Wall Pole Mount Metallic Type
KCO-ODB-72A 72 Port Fiber Optic Terminal Box 96 Fiber Wall Pole Mount Metallic Type
KCO-ODB-72A 72 Port Fiber Optic Terminal Box 96 Fiber Wall Pole Mount Metallic Type
KCO-ODB-72A 72 Port Fiber Optic Terminal Box 96 Fiber Wall Pole Mount Metallic Type
Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-ODB-72A
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union,T/T,L/C
Supply Ability :
5,000 pcs/ month
Delivery Time :
7~14 days after get payment
Packaging Details :
carton box, wooden pallet
Material :
Steel tape
Cable Port :
4 cable ports
Splitter :
1x2, 1x4, 1x8, 1x12, 1x16, 1x24
Adapter :
SC, FC, LC, ST, E2000
Application :
Indoor, Wall mount, Pole mount
Capacity :
24/48/72/96 cores
Description
KCO-ODB-72A 72 Port Fiber Optic Terminal Box
96 Fiber Wall Pole Mount Metallic Type
Quick Information
Name: 48 Fibers Outdoor Fiber Optic Distribution Box (FDB type)
Part Number: KCO-ODB-72A
Capacity: 4 cores SC/FC/ST, 96 cores LC
Tray Number: 2 trays
Material: Steel tape
Thickness: 1.0mm/1.2mm
Size: 400*4000*100mm
Color: Grey, Black (optional)
FTTH mode of fiber optic distribution box is newly developed for FTTH applications. The box is light and compact, especially suitable for protective connection of fiber cables and pigtails in FTTH networks.
Product Features
  • Shell material made from high-quality cold-rolled steel sheet with plastic-sprayed surface treatment
  • Double structure design: upper layer for optical device wiring, lower layer for fiber splicing
  • Internal fiber routing is clear and easy to operate
  • Standard installation with SC adapter; other adapter types available upon order
  • Optical light module uses modular design with strong interchangeability
  • Clear marking system for each core of optical fiber input and distribution
  • Opening angle not less than 180 degrees for wall or pole mounting
  • Reliable cable fixation, stripping, and protection grounding system
  • Ensures fiber bend radius greater than 30mm in any position
  • Outdoor type with bottom cable entry; indoor type with top/bottom cable entry
  • Includes temporary tail fiber storage area
Applications
  • FTTX access networks
  • Telecommunication networks
  • CATV networks
  • Data communications networks
  • Local area networks
Technical Specifications
Environmental Requirement Specification
Working Temperature -40℃ to +85℃
Relative Humidity ≤85% (+30℃)
Atmospheric Pressure 70KPa to 106Kpa
Isolation Resistance ≥2×10⁴ MΩ/500V (DC)
Withstand Voltage ≥3000V (DC)/min, no puncture, no flashover
Product Images

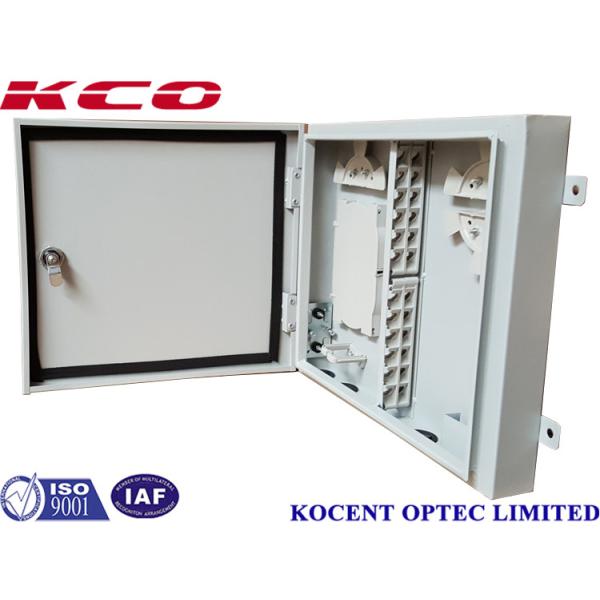

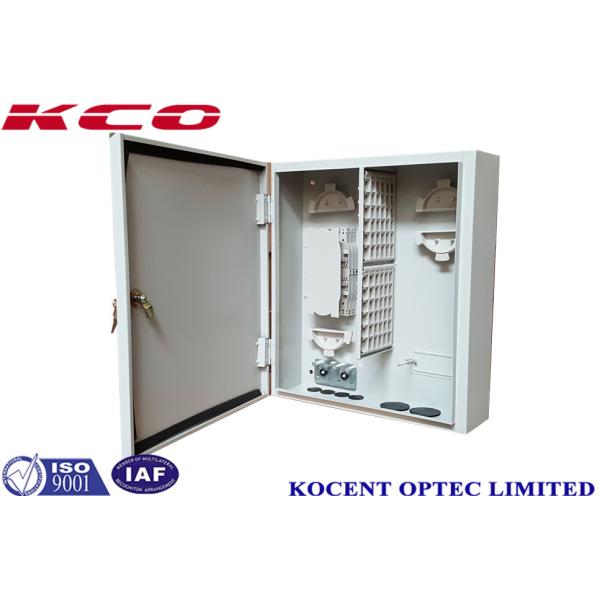

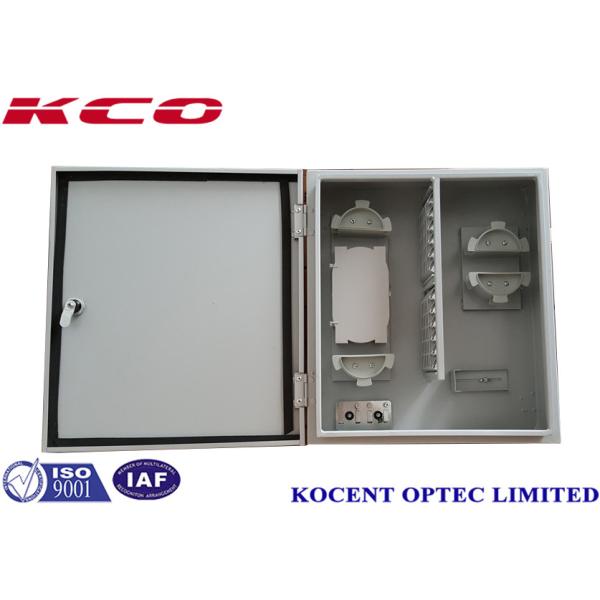

KCO-ODB-72A 72 Port Fiber Optic Terminal Box 96 Fiber Wall Pole Mount Metallic Type KCO-ODB-72A 72 Port Fiber Optic Terminal Box 96 Fiber Wall Pole Mount Metallic Type
Ordering Information
P/N Cores Tray Number Adapter Pigtail Pigtail Diameter Pigtail Length Splitter
KCO-ODB-48A 48 cores 2 SC/UPC SC/UPC 0.9mm 0.5m 1x2
KCO-ODB-72A 72 cores 3 FC/UPC FC/UPC 2.0mm 1.0m 1x4
… … … ST/UPC ST/UPC 3.0mm 1.5m 1x6
LC/UPC LC/UPC Fan-out 0.9mm 2.0m 1x8
E2000/UPC E2000/UPC Break out 2.0mm … 1x12
SC/APC SC/APC … 1x16
FC/APC FC/APC 1x24
LC/APC LC/APC 1x32
E2000/APC E2000/APC …
… …
Available Capacities: Kocent Optec Limited supplies all capacity terminal boxes including 4 ports, 8 ports, 12 ports, 36 ports, 48 ports, and more. All units are loaded with telecom-grade pigtails and adapters.
OEM/ODM Services
We offer complete OEM and ODM services. You can display your own brand logo on cables, packaging bags, labels, or any other location as required.
KCO-ODB-72A 72 Port Fiber Optic Terminal Box 96 Fiber Wall Pole Mount Metallic Type
Packing & Shipping
Packing: Standard export packing with carton boxes, wooden boxes, or wooden pallets.
Shipping Methods:
  • International express: UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • Sea freight
KCO-ODB-72A 72 Port Fiber Optic Terminal Box 96 Fiber Wall Pole Mount Metallic Type
