Description:

The KCO-OPK-16 wall-mounted fiber optic distribution box provides efficient cable connections between outside plant cables and equipment inside the buildings and communications facilities.

The KCO-OPK-16 wall-mounted fiber optic distribution box integrates fiber splicing, storage and cable connections together in a unit.

They can manage both bundle type and ribbon type fiber cables.

The KCO-OPK-16 is with large working space to integrate the pigtail, cables and adapters for fiber management.

This fiber optic distribution frame is designed for indoor wall mounted using, cold-roll steel, with adapter plate & splice trays at one side for fiber splicing, distribution and management.

Designed for use in fiber-optic networks with deep penetration of optics (FTTH, PON, etc.).

It can be used as a crossover unit in the implementation of input and distribution devices, telecommunication crosses.

This cross allows you to boil up to 16 optical fibers.

Wall-mounted optical box KCO-OPK-16 is designed for use in networks of residential buildings, offices and business centers and cottage towns.

Dimensions (WxHxD): 200x250x88 (mm).

Application:

• Mainly used for cable inlet and fixing; fiber splicing and protecting; pigtail storage; patch cord storage, connection and use management between wiring closets and equipments.
• Applicable to Telecommunications, Fiber to the home (FTTH), LAN / WAN, CATV ect system projects.

Features:

• Dust-weet protected box.
• There are rubber seals on the front door and in the cable entrances and exits to prevent moisture and dust.
• Maximum number of welded joints: 24 cores.
• Maximum number of SC type adapters: 16+2 pcs.
• Possibility of quick installation without special tools.
• Maximum number of incoming cables: up to 12.
• Maximum number of outgoing cables: up to 16 (Drop-cable type).
• Beautiful and comfortable design.
• Possibility of quick access to the cable.
• Front panel with lock to prevent unauthorized access.
• Possibility of transit cable laying.
• The box can be installed indoors and outdoors.
• It is made in anti-vandal design from 1.0~1.2mm steel tape.
• Protection grade: IP43.
• Ability to install up to two PLC splitters: 1x16, 1x8, 1x4.
• OEM service: available.

Parameters:

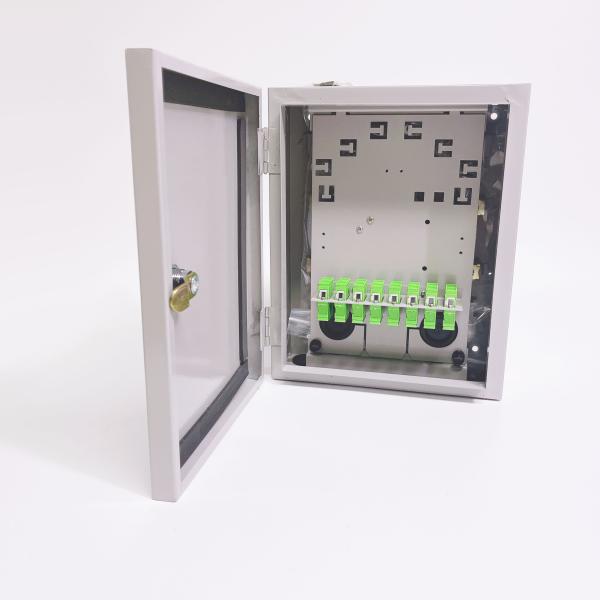

Product photo:

Kocent Optec Limited Product Catalog:

• Fiber Optic Cable: outdoor cable, indoor cable, ftth drop cable.
• Fiber Optic Fast Connnector: SC, FC, LC, ST
• Fiber Optic Patch Cord: indoor patch cord, ftth drop patch cord, Field Fiber Optic Patch Cord, Outdoor Patch Cord.
• Fiber Optic Splitter: PLC Splitter, FTB Coupler, Multimode splitter.
• Fiber Optic Splice Closure: Inline type, Dome type, Aerial type, Wall mount type, Splitter Splice closure...
• Fiber Optic Terminal Box: Distribution Frame, Cross Cabinet, ODF Unit, 19'' Patch panel, Indoor terminal box, Outdoor terminal box, FDB, FAT, CTO, Splitter Box, ...
• MPO MTP Solution product: MPO Patch Cord (8fo, 12fo, 16fo, 24fo, 32fo), MTP Patch cable, MPO MTP attenuator, MPO MTP loop back, MPO MTP Adapter, MPO MTP patch panel.

OEM/ODM Service:

If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Packing:

• According to Stardard Export Packing.
• Carton box, wooden box, wooden pallet.

Shipping:

• International express such as UPS, TNT, DHL, etc
• Internatioal air: CA, AA, EA, etc
• By sea: Huyndai, COSCO, etc
• Standard export sea port: Shenzhen, Hongkong, Ningbo
• Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
