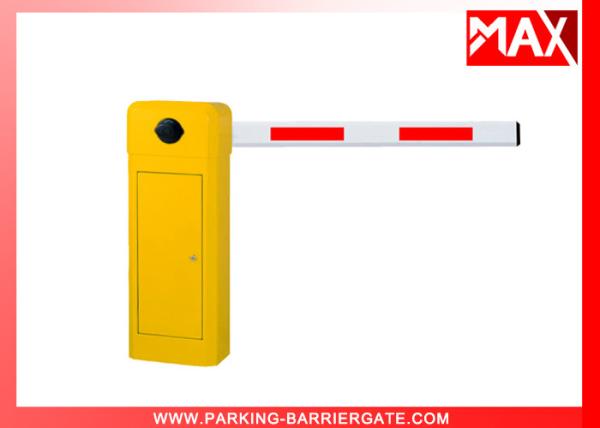

OEM Photocell Parking Lot Barriers For Car Parking Barrier Management System
OEM Photocell Parking Lot Barriers For Car Parking Barrier Management System
Specifications
Brand Name :
MAX
Model Number :
MX-50
Certification :
CE, ISO, SGS
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C/Paypal
Supply Ability :
2000 set/month
Delivery Time :
3-10 working days after received your payment
Packaging Details :
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
name :
OEM Photocell Parking Lot Barriers For Car Parking Barrier Management System
Power :
80W
Running Time :
1s, 1.8s, 3s, 6s
Operating Temperature :
-45°C to 75°C
Motor speed :
30r/min
Boom length :
Max 6 meters
Description

OEM Photocell Parking Lot Barriers For Car Parking Management System

Car Parking Barriers Kit

1 * motor
1 * boom (from 1m to 6m can customized)
1 * control panel
2 * remote controllers

Specifications:

Model

MX-50 (MAX 1st generation machine core)
Power

80w
Material

Cold roll plate, Galvanized plate or stainless steel

varnish baking, 3 years without fading
Running Time

1s, 1.8s, 3s, 6s
Operating Temperature

-45°C to 75°C
Voltage:

220V ± 10%, 110V ± 10%
Relative Humidity

<90% coagulation free
Motor speed

30r/min
Boom length

Max 6 meters
Net weight:

50Kg
MCBF

≥5, 000, 000 times
Housing Size

320*280*935mm
Traffic light

Optional
Rail material

Aluminum Alloy
Boom Type

Straight arm: Mar 1- 6 meters optional, size 45×100mm aluminum alloy.

Folding arm: 90°folding arm / 180°folding arm, aluminum alloy

Fence arm: Two or three fence arm, Mar1- 6 meters, aluminum alloy
Related accessories

infrared sensors, loop detectors,traffic light, UHF readers
Application Parking Lots, Toll Gates, Goods Yards, Railway Crossings,
Commercial Premises, Aparment Block
Advantages

1. quick delivery time, 3-5 days for 50 sets after received advance deposite

2. 7 years OEM/ODM experience

3. quick response for handling problems
Our other products

MAX has other products: tripod turnstiles, sliding gate motor,

flap barrier,swing gate motor,

pedestrian access control turnstiles and barriers,
and other related accessories.

Functions & Features:


1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3. Die-casting aluminum alloy motor, precision and good at thermal radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the INFRARER PHTOCELL for anti-bumping function (optional)
9. Support the external and internal VEHICLE LOOP DETECTOR (optional)
10. Traffic light interface
11. Wire control (switch signal)/ Remote control (418MHZ)
12. RS485 communication module (optional)

Parking & Shipping:

Packing list
Name Specifications Quantity Remarks
Machine core Good in working 1 Main part
Barrier arm Straight, folding or fence arm 1 Optional
Boom press board 1 Fixing the boom
Self-tapoing screw ST4*16 Fixing the boom
Self-tapoing screw st3*10 4 Fixing the boom
Supporting pole 1 Fupporting the boom
Expanion bolt M16*150 4 Fixing the case
Hexagonal Inner Screw M8*35 4 fixing the case
Clutch key 1 clutch device
Case Key 2 for case and cover locking
Balance spring According to length of barrier arm 1 for sapre usage
Remote emitter less than 30m is available 1 For remote control
Remote conrol handles less than 30m is available 2 For remote control
Instruction in English 1 For reference
RS485 interface 1 Optional
Disc 1 Optional
Communication Mould 1 Optional
Cover head 1 3 years without fading
Expanion nut M8 4 Fixing the supporting pole

Why choose us?

1.One year's free servicing is supplied( not including the arm)
2. Lifetime charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltage.
3. The surfaces of the system destroyed by wrong installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if there is any.
The explaining authority of this product instruction and service article belong to the production factory.
