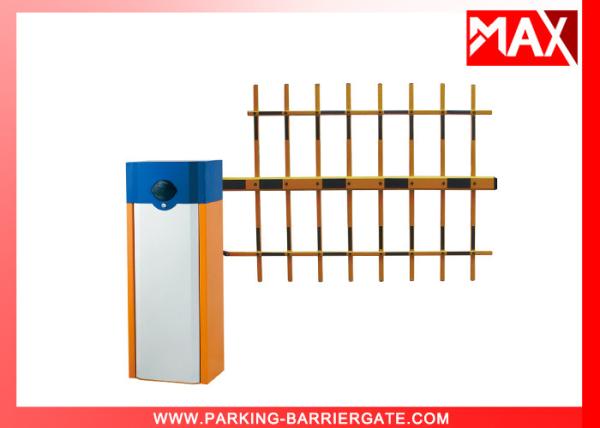

Smart Manual Release Car Park Barriers Parking Lot Barrier Gates
Smart Manual Release Car Park Barriers Parking Lot Barrier Gates
Specifications
Brand Name :
MAX
Model Number :
MX-60
Certification :
CE, ISO, SGS
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C/Paypal
Supply Ability :
2000 set/month
Delivery Time :
3-10 working days after received your payment
Packaging Details :
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
name :
Smart Manual Release Car Park Barriers Parking Lot Barrier Gates
Boom length :
Max 6 meters
Running Time :
1s, 1.8s, 3s, 6s
Operating Temperature :
-45°C to 75°C
Housing Size :
320*280*935mm
Protection System :
IP54
Description

Smart Manual Release Car Park Barriers Parking Lot Barrier Gates


Specifications:

Model

MX-60 (MAX 1st generation machine core)
Power

80w
Material

Cold roll plate, Galvanized plate or stainless steel

varnish baking, 3 years without fading
Running Time

1s, 1.8s, 3s, 6s
Operating Temperature

-45°C to 75°C
Voltage:

220V ± 10%, 110V ± 10%
Relative Humidity

<90% coagulation free
Motor speed

30r/min
Boom length

Max 6 meters
Net weight:

55Kg
MCBF

≥5, 000, 000 times
Housing Size

320*280*935mm
Traffic light

Optional
Rail material

Aluminum Alloy
Boom Type

Straight arm: Mar 1- 6 meters optional, size 45×100mm aluminum alloy.

Folding arm: 90°folding arm / 180°folding arm, aluminum alloy

Fence arm: Two or three fence arm, Mar1- 6 meters, aluminum alloy
Related accessories

infrared sensors, loop detectors,traffic light, UHF readers
Application Parking Lots, Toll Gates, Goods Yards, Railway Crossings,
Commercial Premises, Aparment Block
Advantages

1. quick delivery time, 3-5 days for 50 sets after received advance deposite

2. 7 years OEM/ODM experience

3. quick response for handling problems
Our other products

MAX has other products: tripod turnstiles, sliding gate motor,

flap barrier,swing gate motor,

pedestrian access control turnstiles and barriers,
and other related accessories.

Intelligent Boom Barrier Functions & Features

1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3. Die-casting aluminum alloy motor, precision and good at thermal radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the INFRARER PHTOCELL for anti-bumping function (optional)
9. Support the external and internal VEHICLE LOOP DETECTOR (optional)
10. Traffic light interface
11. Wire control (switch signal)/ Remote control (418MHZ)
12. RS485 communication module (optional)

Packaging & Shipping:

1. Strong carton case with cushion for safety, air bubble film inside for protecting the apperance from damaging.

2. As for wooden crate packing, it is USD$ 10/ps; for wooden case packing, it is USD$ 32/ps.

3. As for shipping, we can send you the goods by air, sea and express, which according to your detail requirements.

Packing list
Name Specifications Quantity Remarks
Machine core Good in working 1 Main part
Barrier arm Straight, folding or fence arm 1 Optional
Boom press board 1 Fixing the boom
Self-tapoing screw ST4*16 Fixing the boom
Self-tapoing screw st3*10 4 Fixing the boom
Supporting pole 1 Fupporting the boom
Expanion bolt M16*150 4 Fixing the case
Hexagonal Inner Screw M8*35 4 fixing the case
Clutch key 1 clutch device
Case Key 2 for case and cover locking
Balance spring According to length of barrier arm 1 for sapre usage
Remote emitter less than 30m is available 1 For remote control
Remote conrol handles less than 30m is available 2 For remote control
Instruction in English 1 For reference
RS485 interface 1 Optional
Disc 1 Optional
Communication Mould 1 Optional
Cover head 1 3 years without fading
Expanion nut M8 4 Fixing the supporting pole

Service for free:


1. One year free service is supplied(not including the arm)

2. Lifetime charged service is supplied

3. Technical service is supplied

4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.

5. Technical support and aftersales service, it is a long term relatioship between us.

6. Price can be negotiable when you have big order quantity.

Service for charging:

1. Broken by wrong installation

2. Broken by improper voltage

3. The surfaces of the barrier destroyed by wrong installation and usage

4. Overdue service items are out of our promise.

FAQ

Communication with customers

1. Motor works but there is no reaction on the arm.
a. Please check whether the clutch device is locked or not.
2. There is too much vibrant when the boom is rising or falling.
a. Please check whether the shock absorption rubber is broken or not, if yes, change a new one.
b. Please check whether the balance spring is overused and distorted. If yes, change a new one.
b. Please check whether the balance spring is overused and distorted.If yes, change a new one, or spin

bottom adjust nut.
3. The boom could not rise up or fall down to the end.
a. When change a long boom to a short one, please readjust it.
b. The sensor does not plug well, please check it.
c. The " Speed adjust switch" is wrong adjust, please readjust it.
4. The distance of the remote control decreases.
a. Check whether the charge capacity of the remote controller is enough or not.
5. There is no reaction when pressing the remote controller buttons.
a, Please check whether the power is supplied to the barrier gate or not.
b. Please check whether the fuse is burnt out or not.
c. Please check whether the code both in the remote controller and the control board are accordant or not.
6 There is no reaction on the motor when the user changes a control board.
a. Please check the capacitance is correctly fixed or not.
b. Please check the sensor is right inserted or not.
