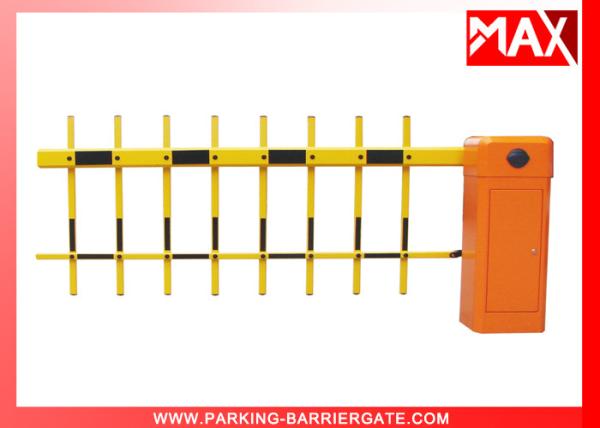

Automatic Boom Arm 2 Fences Parking Barrier Gate for Parking System
Automatic Boom Arm 2 Fences Parking Barrier Gate for Parking System
Specifications
Brand Name :
MAX
Model Number :
MX-50
Certification :
CE, ISO, SGS
Place of Origin :
China
MOQ :
1 SETS
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C/Paypal
Supply Ability :
2000 set/month
Delivery Time :
3-10 working days after received your payment
Packaging Details :
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Name :
Automatic Boom Arm 2 Fences Parking Barrier Gate for Parking System
Arm Type :
Straight Articulated, Fence
Arm Material :
Aluminum Alloy
Color :
Red, Orange, Blue, Black optional
Motor Power :
120W
Max Arm Length :
6m
Description
Automatic Boom Arm 2 Fences Parking Barrier Gate for Parking System
Applications:
Barrier gates are typically used at level crossing, drawbridges, parking facilities, checking points and entrances, they could also be used for controlling passage through toll booths.
In some places, barrier gates are installed across suburban streets as a traffic calming measure, preventing through traffic,while allow authorized vehicles such as emergency services and buses to take advantage of the shorter and more direct route.

Features:
1. Remote control within 30 meters, easy operation.
2. Low speed electro-mechanical device, runing with little heat, ensure the barrier gate work stably in an intensive duty cycle.
3.Shock mitigation, work without noise and shake .
4.Boom length and style could be customized.
5.External structure made of durable steel and coated with automobile paint, the boom gate could resist extreme high/low temperature and severe climate .
6. The color of coating is optional.
Technical information :
ModeI Item MX-50 Barrier Gate
Boom type 2 level fencing boom
Boom length 1~6 meters
Working cycle 100%
Voltage 220V± 10%, 110V± 10% 50/60 Hz
Remote controller 2 Pcs
Power 80W
Working temperature -40~+75 ºC
Protection grade IP44
Net weight 65kg

Running time and boom length
Model MX-50
Running time 1 sec 3 sec 6 sec 3 sec 6 sec 3 sec 6 sec 3 sec 6 sec
Boom type Straight 90 ° folding 180 ° folding 2 fence 3 fence
Max boom length 3m 4.5m 6m 3m 5m 3m 5m 4.5m 4m
Boom dimension (W×H) 45x80mm 45x100mm
Boom weight 3kg 4.5kg 5kg 6.5kg 8kg 9kg 11kg 7kg 7.5kg
Voltage 220V±10%, 110V±10%
Frequency 50/60HZ
Motor voltage 220V
Power 120W
Working temperature - 35 °C ~+60 °C
Protection grade IP54


Package:
Packaging Details: carton case
Delivery Detail: 5-7 working days
Package details
Automatic Boom Arm 2 Fences Parking Barrier Gate for Parking System
