Automatic Blank Label Rotary Die Cutting & Slitting Rewinding Machine
Automatic Blank Label Rotary Die Cutting & Slitting Rewinding Machine
Specifications
Brand Name :
FOCUS
Model Number :
FM-320&FM-420
Certification :
SGS, FSC，ISO
Place of Origin :
China
MOQ :
1
Price :
8500
Payment Terms :
L/C, T/T
Delivery Time :
30-50 days
Packaging Details :
Sea-Worthy Wooden Case
Die cutting speed :
70m/min
Working width :
0-420mm
Maximum unwinding diameter :
500mm
Maximum winding diameter :
480mm
Die Cut Length :
178-470mm(7" - 18,5")
Machine size :
1.57mx1.02mx1.61m
Machine weight :
1800kgs
Voltage :
220V 50HZ
Description
Automatic Blank Label Rotary Die Cutting & Slitting Rewinding Machine
Product Specifications
Attribute Value
Die cutting speed 70m/min
Working width 0-420mm
Maximum unwinding diameter 500mm
Maximum winding diameter 480mm
Die Cut Length 178-470mm(7" - 18,5")
Machine size 1.57mx1.02mx1.61m
Machine weight 1800kgs
Voltage 220V 50HZ
Product Overview

The machine is used for labels die cutting. With its advanced servo-controlled registration system, the circumferential die cutter achieves complex shape cutting and textured embossing. The all-in-one solution combines flexo printing, precision die-cutting, matrix removal and web rewinding in a single pass.

Key Features
  1. High-precision circular die-cutting system
  2. Suitable for blank self-adhesive labels
  3. Die cutting and slitting can be done at same time
  4. Automatic meter counting, automatic shutdown, photoelectric eye correction
  5. Compact structure, fast speed, high efficiency, simple operation and stable operation
Technical Parameters
Model FM-320 FM-420
Die cutting speed 70m/min 70m/min
Working width 0-320mm 0-420mm
Maximum unwinding diameter 500mm 500mm
Maximum winding diameter 480mm 480mm
Die Cut Length 178-470mm(7" - 18,5") 178-470mm(7" - 18,5")
Machine size 1.57mx1.02mx1.61m 1.57mx1.12mx1.61m
Machine weight 1200kgs 1800kgs
Voltage 220V 50HZ 220V 50HZ
Standard Configuration
  • Slitting device
  • One 3-inch unwinding air shaft Two 3-inch rewinding air shafts
  • Counting/meter counter
  • Two photoelectric eyes for deviation correction
  • 8 round knives
  • One magnetic powder brake, two clutches
Applications

Suitable for die-cutting and slitting of self-adhesive, labels, paper, film (PET, PC, PE), non-woven fabric, foam, double-sided tape, copper foil/aluminum foil and various roll materials. Widely used in printing, packaging, 3C electronics, leather, clothing, plastic and other industries.

Product Images

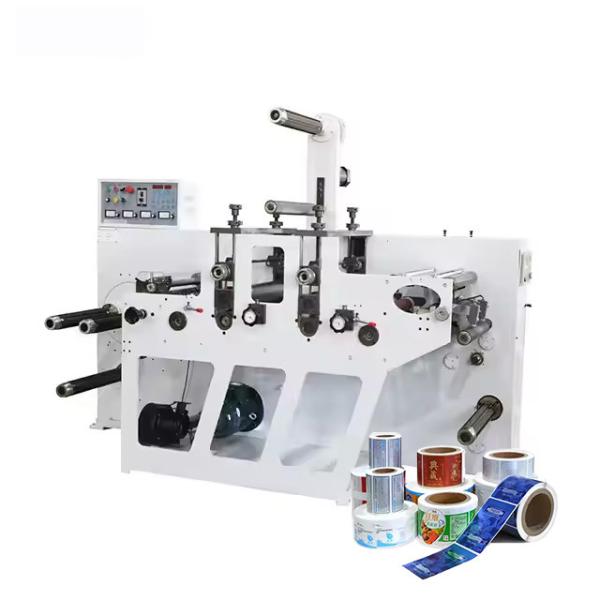

Automatic Blank Label Rotary Die Cutting & Slitting Rewinding Machine Automatic Blank Label Rotary Die Cutting & Slitting Rewinding Machine Automatic Blank Label Rotary Die Cutting & Slitting Rewinding Machine Automatic Blank Label Rotary Die Cutting & Slitting Rewinding Machine Automatic Blank Label Rotary Die Cutting & Slitting Rewinding Machine

Note: Die-cutting platform shown (die-cutting knives are not included in the price)
