Automatic Rotary Label Die Cutting Machine for Self-Adhesive Labels, 70m/min
Automatic Rotary Label Die Cutting Machine for Self-Adhesive Labels, 70m/min
Specifications
Brand Name :
FOCUS
Model Number :
FM-320&FM-420
Certification :
SGS, FSC，ISO
Place of Origin :
China
MOQ :
1
Price :
8500
Payment Terms :
L/C, T/T
Delivery Time :
30-50 days
Packaging Details :
Sea-Worthy Wooden Case
Die cutting speed :
70m/min
Working width :
0-420mm
Maximum unwinding diameter :
500mm
Maximum winding diameter :
480mm
Die Cut Length :
178-470mm(7" - 18,5")
Machine size :
1.57mx1.02mx1.61m
Machine weight :
1800kgs
Voltage :
220V 50HZ
Description
Automatic Rotary Label Die Cutting Machine for Self-Adhesive Labels, 70m/min
Key Specifications
Attribute Value
Die cutting speed 70m/min
Working width 0-420mm
Maximum unwinding diameter 500mm
Maximum winding diameter 480mm
Die Cut Length 178-470mm (7" - 18.5")
Machine size 1.57m x 1.02m x 1.61m
Machine weight 1800kgs
Voltage 220V 50HZ
Product Overview

As a specialized equipment for processing roll labels, this die-cutting machine achieves precise cutting and slitting of large rolls of blank paper. Through process integration technology, the various links from printing to forming are integrated into a continuous production process. The intelligent operation interface ensures that the equipment is both simple and easy to use with excellent production capacity.

Machine Features
  • High-precision circular die-cutting system
  • Suitable for blank self-adhesive labels
  • Die cutting and slitting can be done at same time
  • Automatic meter counting, automatic shutdown, photoelectric eye correction
  • Compact structure, fast speed, high efficiency, simple operation and stable operation
Technical Parameters
Model FM-320 FM-420
Die cutting speed 70m/min 70m/min
Working width 0-320mm 0-420mm
Maximum unwinding diameter 500mm 500mm
Maximum winding diameter 480mm 480mm
Die Cut Length 178-470mm (7" - 18.5") 178-470mm (7" - 18.5")
Machine size 1.57m x 1.02m x 1.61m 1.57m x 1.12m x 1.61m
Machine weight 1200kgs 1800kgs
Voltage 220V 50HZ 220V 50HZ
Standard Configuration
  • Slitting device
  • One 3-inch unwinding air shaft
  • Two 3-inch rewinding air shafts
  • Counting/meter counter
  • Two photoelectric eyes for deviation correction
  • 8 round knives
  • One magnetic powder brake, two clutches

Note: Die-cutting knives are not included in the price.

Scope of Application

Suitable for die-cutting and slitting of self-adhesive, labels, paper, film (PET, PC, PE), non-woven fabric, foam, double-sided tape, copper foil/aluminum foil and various roll materials. Widely used in printing, packaging, 3C electronics, leather, clothing, plastic and other industries.

Product Images

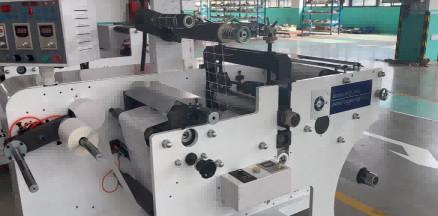

Automatic Rotary Label Die Cutting Machine for Self-Adhesive Labels, 70m/min
Automatic Rotary Label Die Cutting Machine for Self-Adhesive Labels, 70m/min
Automatic Rotary Label Die Cutting Machine for Self-Adhesive Labels, 70m/min
Automatic Rotary Label Die Cutting Machine for Self-Adhesive Labels, 70m/min
Automatic Rotary Label Die Cutting Machine for Self-Adhesive Labels, 70m/min
