High Precision Blank Adhesive Labels Slitting and Die Cutting Machine 70m/min
High Precision Blank Adhesive Labels Slitting and Die Cutting Machine 70m/min
Specifications
Brand Name :
FOCUS
Model Number :
FM-320&FM-420
Certification :
SGS, FSC，ISO
Place of Origin :
China
MOQ :
1
Price :
8500
Payment Terms :
L/C, T/T
Delivery Time :
30-50 days
Packaging Details :
Sea-Worthy Wooden Case
Die cutting speed :
70m/min
Working width :
0-420mm
Maximum unwinding diameter :
500mm
Maximum winding diameter :
480mm
Die Cut Length :
178-470mm(7" - 18,5")
Machine size :
1.57mx1.02mx1.61m
Machine weight :
1800kgs
Voltage :
220V 50HZ
Description
High Precision Blank Adhesive Labels Slitting and Die Cutting Machine 70m/min
Product Specifications
Attribute Value
Die cutting speed 70m/min
Working width 0-420mm
Maximum unwinding diameter 500mm
Maximum winding diameter 480mm
Die Cut Length 178-470mm(7" - 18,5")
Machine size 1.57mx1.02mx1.61m
Machine weight 1800kgs
Voltage 220V 50HZ
Product Overview

The die-cutting system developed specifically for the label manufacturing industry mainly handles the cutting and packaging of large-sized roll paper. It innovatively integrates printing, forming, waste cleaning, winding and other processes, and is equipped with an automatic control system that combines ease of use and high production capacity.

Key Features
  • High-precision circular die-cutting system
  • Suitable for blank self-adhesive labels
  • Die cutting and slitting can be done at same time
  • Automatic meter counting, automatic shutdown, photoelectric eye correction
  • Compact structure, fast speed, high efficiency, simple operation and stable operation
Technical Parameters
Model FM-320 FM-420
Die cutting speed 70m/min 70m/min
Working width 0-320mm 0-420mm
Maximum unwinding diameter 500mm 500mm
Maximum winding diameter 480mm 480mm
Die Cut Length 178-470mm(7" - 18,5") 178-470mm(7" - 18,5")
Machine size 1.57mx1.02mx1.61m 1.57mx1.12mx1.61m
Machine weight 1200kgs 1800kgs
Voltage 220V 50HZ 220V 50HZ
Standard Configuration
  • Slitting device
  • One 3-inch unwinding air shaft
  • Two 3-inch rewinding air shafts
  • Counting/meter counter
  • Two photoelectric eyes for deviation correction
  • 8 round knives
  • One magnetic powder brake, two clutches
Applications

Suitable for die-cutting and slitting of self-adhesive, labels, paper, film (PET, PC, PE), non-woven fabric, foam, double-sided tape, copper foil/aluminum foil and various roll materials. Widely used in printing, packaging, 3C electronics, leather, clothing, plastic and other industries.

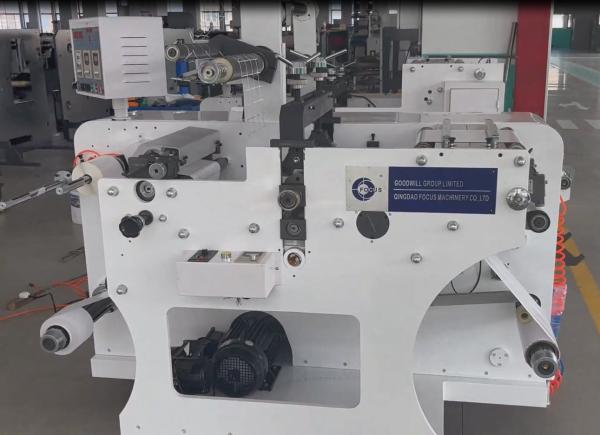

Product Images

Die-cutting platform (die-cutting knives are not included in the price):

High Precision Blank Adhesive Labels Slitting and Die Cutting Machine 70m/min High Precision Blank Adhesive Labels Slitting and Die Cutting Machine 70m/min High Precision Blank Adhesive Labels Slitting and Die Cutting Machine 70m/min High Precision Blank Adhesive Labels Slitting and Die Cutting Machine 70m/min High Precision Blank Adhesive Labels Slitting and Die Cutting Machine 70m/min
