Automatic Roll Label Die Cutting Slitting Machine for Self-Adhesive Labels
Automatic Roll Label Die Cutting Slitting Machine for Self-Adhesive Labels
Specifications
Brand Name :
FOCUS
Model Number :
FM-320&FM-420
Certification :
SGS, FSC，ISO
Place of Origin :
China
MOQ :
1
Price :
8500
Payment Terms :
L/C, T/T
Delivery Time :
30-50 days
Packaging Details :
Sea-Worthy Wooden Case
Die cutting speed :
70m/min
Working width :
0-420mm
Maximum unwinding diameter :
500mm
Maximum winding diameter :
480mm
Die Cut Length :
178-470mm(7" - 18,5")
Machine size :
1.57mx1.02mx1.61m
Machine weight :
1800kgs
Voltage :
220V 50HZ
Description

1. Brief Introduction

In the deep processing of label paper, this die-cutting machine can accurately cut and mold large rolls of raw materials. The entire system can continuously complete printing processing, shape die-cutting, waste removal, and finished product rewinding, and with automation control, achieve a simple and efficient operating experience.

2. Machine Feature

1,High-precision circular die-cutting system

2,Suitable for blank self-adhesive labels

3,Die cutting and slitting can be done at same time

4,Automatic meter counting, automatic shutdown, photoelectric eye correction

5,Compact structure, fast speed, high efficiency, simple operation and stable operation

3. Technical Parameter

Model FM-320 FM-420
Die cutting speed 70m/min 70m/min
Working width 0-320mm 0-420mm
Maximum unwinding diameter 500mm 500mm
Maximum winding diameter 480mm 480mm
Die Cut Length 178-470mm(7" - 18,5") 178-470mm(7" - 18,5")
Machine size 1.57mx1.02mx1.61m 1.57mx1.12mx1.61m
Machine weight 1200kgs 1800kgs
Voltage 220V 50HZ 220V 50HZ

4. Standard Configuration

Slitting device

One 3-inch unwinding air shaft Two 3-inch rewinding air shafts

Counting/meter counter

Two photoelectric eyes for deviation correction

8 round knives

One magnetic powder brake, two clutches

5. Scope of application

Suitable for die-cutting and slitting of self-adhesive, labels, paper, film (PET, PC, PE), non-woven fabric, foam, double-sided tape, copper foil/aluminum foil and various roll materials. Widely used in printing, packaging, 3C electronics, leather, clothing, plastic and other industries.

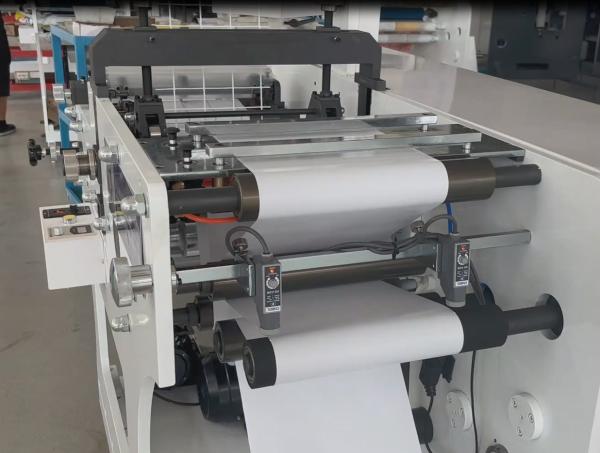

Detailed drawing:

Die-cutting platform (die-cutting knives are not included in the price):

Automatic Roll Label Die Cutting Slitting Machine for Self-Adhesive LabelsAutomatic Roll Label Die Cutting Slitting Machine for Self-Adhesive LabelsAutomatic Roll Label Die Cutting Slitting Machine for Self-Adhesive Labels

Automatic Roll Label Die Cutting Slitting Machine for Self-Adhesive Labels

Automatic Roll Label Die Cutting Slitting Machine for Self-Adhesive Labels
