Rotary Die Cutting Machine for Self-Adhesive Labels - 70m/min Speed
Rotary Die Cutting Machine for Self-Adhesive Labels - 70m/min Speed
Specifications
Brand Name :
FOCUS
Model Number :
FM-320&FM-420
Certification :
SGS, FSC，ISO
Place of Origin :
China
MOQ :
1
Price :
8500
Payment Terms :
L/C, T/T
Delivery Time :
30-50 days
Packaging Details :
Sea-Worthy Wooden Case
Die cutting speed :
70m/min
Working width :
0-420mm
Maximum unwinding diameter :
500mm
Maximum winding diameter :
480mm
Die Cut Length :
178-470mm(7" - 18,5")
Machine size :
1.57mx1.02mx1.61m
Machine weight :
1800kgs
Voltage :
220V 50HZ
Description
Rotary Die Cutting Machine for Self-Adhesive Labels - 70m/min Speed
Key Specifications
Attribute Value
Die cutting speed 70m/min
Working width 0-420mm
Maximum unwinding diameter 500mm
Maximum winding diameter 480mm
Die Cut Length 178-470mm (7" - 18.5")
Machine size 1.57m x 1.02m x 1.61m
Machine weight 1800kgs
Voltage 220V 50HZ
Product Overview

This rotary die-cutting machine features high-precision register and die-cutting phase adjustment technology, achieving breakthroughs in die-cutting indentation and concave-convex imprinting. It enables one-time completion of web printing, die-cutting, waste discharge, and rewinding, making it ideal for various printing and packaging applications.

Key Features
  • High-precision circular die-cutting system
  • Designed for blank self-adhesive labels
  • Simultaneous die-cutting and slitting capability
  • Automatic meter counting, shutdown, and photoelectric eye correction
  • Compact structure with fast operation, high efficiency, and stable performance
Technical Specifications
Model FM-320 FM-420
Die cutting speed 70m/min 70m/min
Working width 0-320mm 0-420mm
Maximum unwinding diameter 500mm 500mm
Maximum winding diameter 480mm 480mm
Die Cut Length 178-470mm (7" - 18.5") 178-470mm (7" - 18.5")
Machine size 1.57m x 1.02m x 1.61m 1.57m x 1.12m x 1.61m
Machine weight 1200kgs 1800kgs
Voltage 220V 50HZ 220V 50HZ
Standard Configuration
  • Slitting device
  • One 3-inch unwinding air shaft
  • Two 3-inch rewinding air shafts
  • Counting/meter counter
  • Two photoelectric eyes for deviation correction
  • 8 round knives
  • One magnetic powder brake and two clutches
Applications

This machine is suitable for die-cutting and slitting of various materials including self-adhesive labels, paper, films (PET, PC, PE), non-woven fabric, foam, double-sided tape, and copper/aluminum foil. It finds wide application in printing, packaging, 3C electronics, leather, clothing, and plastic industries.

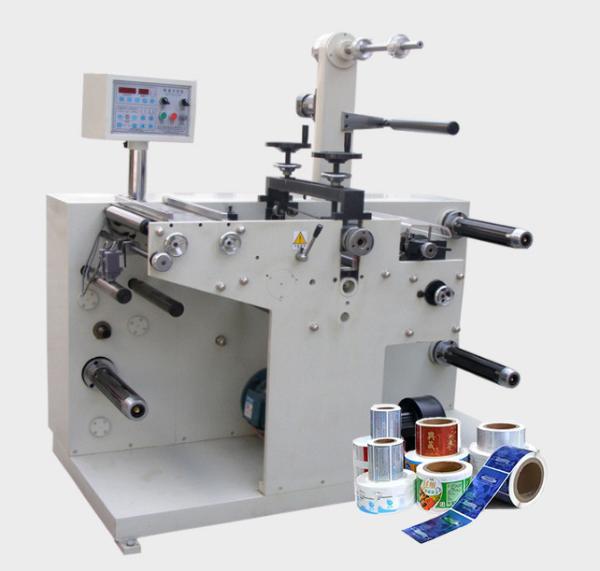

Product Images
Rotary Die Cutting Machine for Self-Adhesive Labels - 70m/min Speed Rotary Die Cutting Machine for Self-Adhesive Labels - 70m/min Speed Rotary Die Cutting Machine for Self-Adhesive Labels - 70m/min Speed Rotary Die Cutting Machine for Self-Adhesive Labels - 70m/min Speed Rotary Die Cutting Machine for Self-Adhesive Labels - 70m/min Speed
