Rotary Automatic Adhesive Label Die Cutting Slitting Machine with High-Precision Die Cut Unit
Rotary Automatic Adhesive Label Die Cutting Slitting Machine with High-Precision Die Cut Unit
Specifications
Brand Name :
FOCUS
Model Number :
FM-320&FM-420
Certification :
SGS, FSC，ISO
Place of Origin :
China
MOQ :
1
Price :
8500
Payment Terms :
L/C, T/T
Delivery Time :
30-50 days
Packaging Details :
Sea-Worthy Wooden Case
Die cutting speed :
70m/min
Working width :
0-420mm
Maximum unwinding diameter :
500mm
Maximum winding diameter :
480mm
Die Cut Length :
178-470mm(7" - 18,5")
Machine size :
1.57mx1.02mx1.61m
Machine weight :
1800kgs
Voltage :
220V 50HZ
Description

1. Brief Introduction

This paper precision processing equipment focuses on the fixed length cutting and rewinding of roll label materials. Through integrated production line design, it seamlessly connects printing, molding, waste separation, and finished product winding processes, and works with an intelligent control interface to achieve efficient and convenient production operations.

2. Machine Feature

1,High-precision circular die-cutting system

2,Suitable for blank self-adhesive labels

3,Die cutting and slitting can be done at same time

4,Automatic meter counting, automatic shutdown, photoelectric eye correction

5,Compact structure, fast speed, high efficiency, simple operation and stable operation

3. Technical Parameter

Model FM-320 FM-420
Die cutting speed 70m/min 70m/min
Working width 0-320mm 0-420mm
Maximum unwinding diameter 500mm 500mm
Maximum winding diameter 480mm 480mm
Die Cut Length 178-470mm(7" - 18,5") 178-470mm(7" - 18,5")
Machine size 1.57mx1.02mx1.61m 1.57mx1.12mx1.61m
Machine weight 1200kgs 1800kgs
Voltage 220V 50HZ 220V 50HZ

4. Standard Configuration

Slitting device

One 3-inch unwinding air shaft Two 3-inch rewinding air shafts

Counting/meter counter

Two photoelectric eyes for deviation correction

8 round knives

One magnetic powder brake, two clutches

5. Scope of application

Suitable for die-cutting and slitting of self-adhesive, labels, paper, film (PET, PC, PE), non-woven fabric, foam, double-sided tape, copper foil/aluminum foil and various roll materials. Widely used in printing, packaging, 3C electronics, leather, clothing, plastic and other industries.

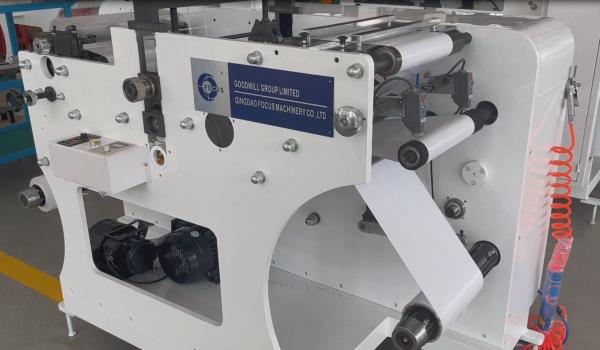

Detailed drawing:

Die-cutting platform (die-cutting knives are not included in the price):

Rotary Automatic Adhesive Label Die Cutting Slitting Machine with High-Precision Die Cut UnitRotary Automatic Adhesive Label Die Cutting Slitting Machine with High-Precision Die Cut UnitRotary Automatic Adhesive Label Die Cutting Slitting Machine with High-Precision Die Cut Unit

Rotary Automatic Adhesive Label Die Cutting Slitting Machine with High-Precision Die Cut Unit

Rotary Automatic Adhesive Label Die Cutting Slitting Machine with High-Precision Die Cut Unit
