Automatic Rotary Die Cutting Machine for Blank Adhesive Labels, 70m/min Speed
Automatic Rotary Die Cutting Machine for Blank Adhesive Labels, 70m/min Speed
Specifications
Brand Name :
FOCUS
Model Number :
FM-320&FM-420
Certification :
SGS, FSC，ISO
Place of Origin :
China
MOQ :
1
Price :
8500
Payment Terms :
L/C, T/T
Delivery Time :
30-50 days
Packaging Details :
Sea-Worthy Wooden Case
Die cutting speed :
70m/min
Working width :
0-420mm
Maximum unwinding diameter :
500mm
Maximum winding diameter :
480mm
Die Cut Length :
178-470mm(7" - 18,5")
Machine size :
1.57mx1.02mx1.61m
Machine weight :
1800kgs
Voltage :
220V 50HZ
Description
Automatic Rotary Die Cutting Machine for Blank Adhesive Labels, 70m/min Speed
Key Specifications
Attribute Value
Die cutting speed 70m/min
Working width 0-420mm
Maximum unwinding diameter 500mm
Maximum winding diameter 480mm
Die Cut Length 178-470mm (7" - 18.5")
Machine size 1.57m x 1.02m x 1.61m
Machine weight 1800kgs
Voltage 220V 50HZ
Product Overview

The die-cutting and slitting machine features a new design with rotary die-cutting function, equipped with a high-precision rotary die-cutting system. This machine is specifically designed for blank adhesive label materials, capable of completing die cutting, waste disposal, and rewinding in one continuous process.

Key Features
  • High-precision circular die-cutting system
  • Optimized for blank self-adhesive labels
  • Simultaneous die cutting and slitting capability
  • Automatic meter counting with automatic shutdown
  • Photoelectric eye correction system
  • Compact structure with fast operation speed
  • High efficiency with simple operation
  • Stable and reliable performance
Technical Parameters
Model FM-320 FM-420
Die cutting speed 70m/min 70m/min
Working width 0-320mm 0-420mm
Maximum unwinding diameter 500mm 500mm
Maximum winding diameter 480mm 480mm
Die Cut Length 178-470mm (7" - 18.5") 178-470mm (7" - 18.5")
Machine size 1.57m x 1.02m x 1.61m 1.57m x 1.12m x 1.61m
Machine weight 1200kgs 1800kgs
Voltage 220V 50HZ 220V 50HZ
Standard Configuration
  • Slitting device
  • One 3-inch unwinding air shaft
  • Two 3-inch rewinding air shafts
  • Counting/meter counter
  • Two photoelectric eyes for deviation correction
  • 8 round knives
  • One magnetic powder brake
  • Two clutches

Note: Die-cutting knives are not included in the price.

Applications

Suitable for die-cutting and slitting of various materials including self-adhesive labels, paper, film (PET, PC, PE), non-woven fabric, foam, double-sided tape, and copper foil/aluminum foil. Widely used in printing, packaging, 3C electronics, leather, clothing, plastic and other industrial applications.

Product Images

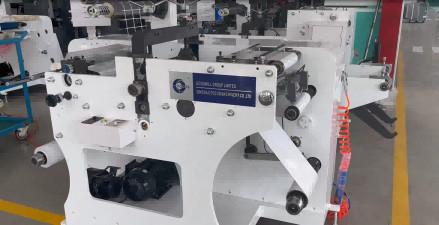

Automatic Rotary Die Cutting Machine for Blank Adhesive Labels, 70m/min Speed
Automatic Rotary Die Cutting Machine for Blank Adhesive Labels, 70m/min Speed
Automatic Rotary Die Cutting Machine for Blank Adhesive Labels, 70m/min Speed
Automatic Rotary Die Cutting Machine for Blank Adhesive Labels, 70m/min Speed
Automatic Rotary Die Cutting Machine for Blank Adhesive Labels, 70m/min Speed
