Modern Double Round Knife Die Cutting Machine for Adhesive Labels
Modern Double Round Knife Die Cutting Machine for Adhesive Labels
Specifications
Brand Name :
FOCUS
Model Number :
FM-320&FM-420
Certification :
SGS, FSC，ISO
Place of Origin :
China
MOQ :
1
Price :
8500
Payment Terms :
L/C, T/T
Delivery Time :
30-50 days
Packaging Details :
Sea-Worthy Wooden Case
Die cutting speed :
70m/min
Working width :
0-420mm
Maximum unwinding diameter :
500mm
Maximum winding diameter :
480mm
Die Cut Length :
178-470mm(7" - 18,5")
Machine size :
1.57mx1.02mx1.61m
Machine weight :
1800kgs
Voltage :
220V 50HZ
Description
Modern Double Round Knife Die Cutting Machine for Adhesive Labels
Key Specifications
Attribute Value
Die cutting speed 70m/min
Working width 0-420mm
Maximum unwinding diameter 500mm
Maximum winding diameter 480mm
Die Cut Length 178-470mm (7" - 18.5")
Machine size 1.57m x 1.02m x 1.61m
Machine weight 1800kgs
Voltage 220V 50HZ
Product Overview

This rotary die-cutting and slitting machine is specially customized for adhesive label materials, combining precision rotary die-cutting technology with synchronous processing of die-cutting, lamination (optional), and longitudinal cutting. The machine features automatic counting, photoelectric correction, and intelligent shutdown functions in a compact structure that delivers fast cutting speed, high accuracy, and strong stability.

Key Features
  • High-precision circular die-cutting system
  • Designed for blank self-adhesive labels
  • Simultaneous die cutting and slitting capability
  • Automatic meter counting, shutdown, and photoelectric eye correction
  • Compact structure with fast operation, high efficiency, and stable performance
Technical Specifications
Model FM-320 FM-420
Die cutting speed 70m/min 70m/min
Working width 0-320mm 0-420mm
Maximum unwinding diameter 500mm 500mm
Maximum winding diameter 480mm 480mm
Die Cut Length 178-470mm (7" - 18.5") 178-470mm (7" - 18.5")
Machine size 1.57m x 1.02m x 1.61m 1.57m x 1.12m x 1.61m
Machine weight 1200kgs 1800kgs
Voltage 220V 50HZ 220V 50HZ
Standard Configuration
  • Slitting device
  • One 3-inch unwinding air shaft and two 3-inch rewinding air shafts
  • Counting/meter counter
  • Two photoelectric eyes for deviation correction
  • 8 round knives
  • One magnetic powder brake and two clutches
Applications

Ideal for die-cutting and slitting of self-adhesive labels, paper, film (PET, PC, PE), non-woven fabric, foam, double-sided tape, copper foil/aluminum foil and various roll materials. Widely used in printing, packaging, 3C electronics, leather, clothing, plastic and other industries.

Product Images

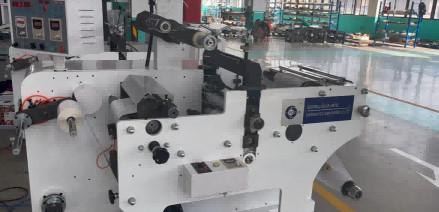

Modern Double Round Knife Die Cutting Machine for Adhesive Labels
Modern Double Round Knife Die Cutting Machine for Adhesive Labels
Modern Double Round Knife Die Cutting Machine for Adhesive Labels
Modern Double Round Knife Die Cutting Machine for Adhesive Labels
Modern Double Round Knife Die Cutting Machine for Adhesive Labels
