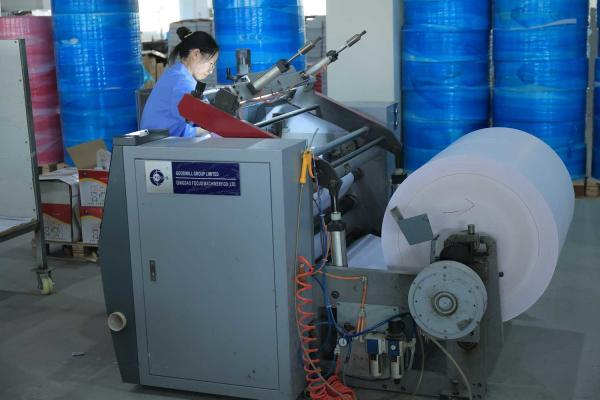

Automatic Thermal Paper Slitting Machine for ATM & Cash Register Rolls
Automatic Thermal Paper Slitting Machine for ATM & Cash Register Rolls
Specifications
Brand Name :
FOCUS
Model Number :
FM25PSM0412001
Certification :
SGS, FSC，ISO
Place of Origin :
China
MOQ :
1
Max. Parent Web Width :
900mm
Max. Parent Web Diameter :
1000mm
Max. Rewinding Diameter :
2.2Kw
Thickness Range :
40-400gsm
Max. Machine Speed :
200m/min
Overall dimension :
1600*1700*1600mm (1 Ply)
Weight :
1900kg
Voltage :
3 Phase 220V 60HZ or 380V 50HZ
Machine Type :
Flexo Letterpress Printing Machine
Overall Dimension :
4000*1700*1600mm
Power Supply :
220V/50Hz
Max. Unwinding Diameter :
1000mm
Cutting Accuracy :
±0.1mm
Rewind Diameter :
160mm
Slitting Accuracy :
±0.1mm
Description

1. Brief Introduction

The FOCUS Thermal Paper Slitting Machine is a cutting-edge device designed to slit a variety of paper materials such as thermal paper, NCR paper, fax paper, ATM paper, cash register paper, and self-adhesive labels. Capable of handling paper up to 250gsm in thickness, this machine excels in producing small rolls of one, two, or three-layer thermal and NCR paper. Its advanced automation ensures effortless operation, where operators only need to set the speed and tension parameters, with the machine managing all other tasks autonomously. Thanks to its high efficiency and reliability, it is a preferred choice in international markets.

Automatic Thermal Paper Slitting Machine for ATM & Cash Register Rolls

2. Technical Parameters

Items Parameters
Max. Parent Web Width 900mm
Max. Parent Web Diameter 1000mm
Max. Rewinding Diameter 200mm
Frequency Inverter Motor 2.2Kw
Thickness Range 40-400gsm
Max. Machine Speed 200m/min
Overall dimension 1600*1700*1600mm (1 Ply)
Weight 1900kg
Voltage 3 Phase 220V 60HZ or 380V 50HZ


Automatic Thermal Paper Slitting Machine for ATM & Cash Register Rolls

Automatic Thermal Paper Slitting Machine for ATM & Cash Register Rolls

Automatic Thermal Paper Slitting Machine for ATM & Cash Register Rolls

Automatic Thermal Paper Slitting Machine for ATM & Cash Register RollsAutomatic Thermal Paper Slitting Machine for ATM & Cash Register Rolls

Qingdao FOCUS MACHINERY Co., Ltd.

Qingdao FOCUS MACHINERY Co., Ltd, founded in 1990s, was dedicated to manufacture paper machines and provide production line for paper industry.
Based on leading technologies, experiences and knowhow, we could meet a variety of requirements and offer turn key projects.
We are also one of the subsidiary companies of Goodwill Group Limited who was founded in U.K.Since we built more than 30 successful production lines and exporting lots of machines in South America, Asia, Africa, Europe, etc., more customers desired to visit us personally, not only check capacity but also to see our machines how to work and paper quality made by them, so 15 years ago we built paper factory by machines and production lines we produced and designed.
