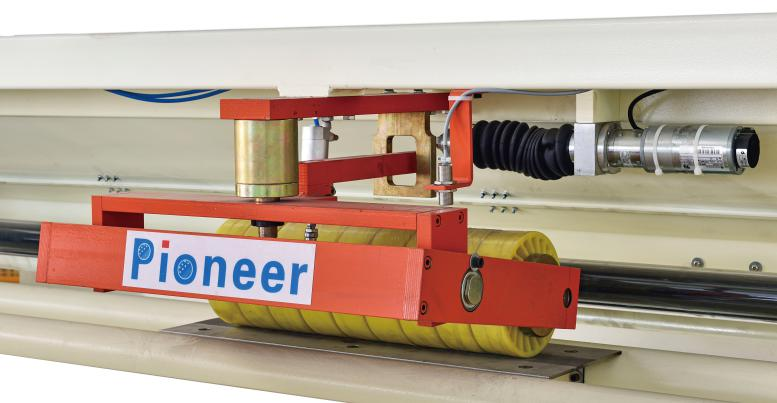

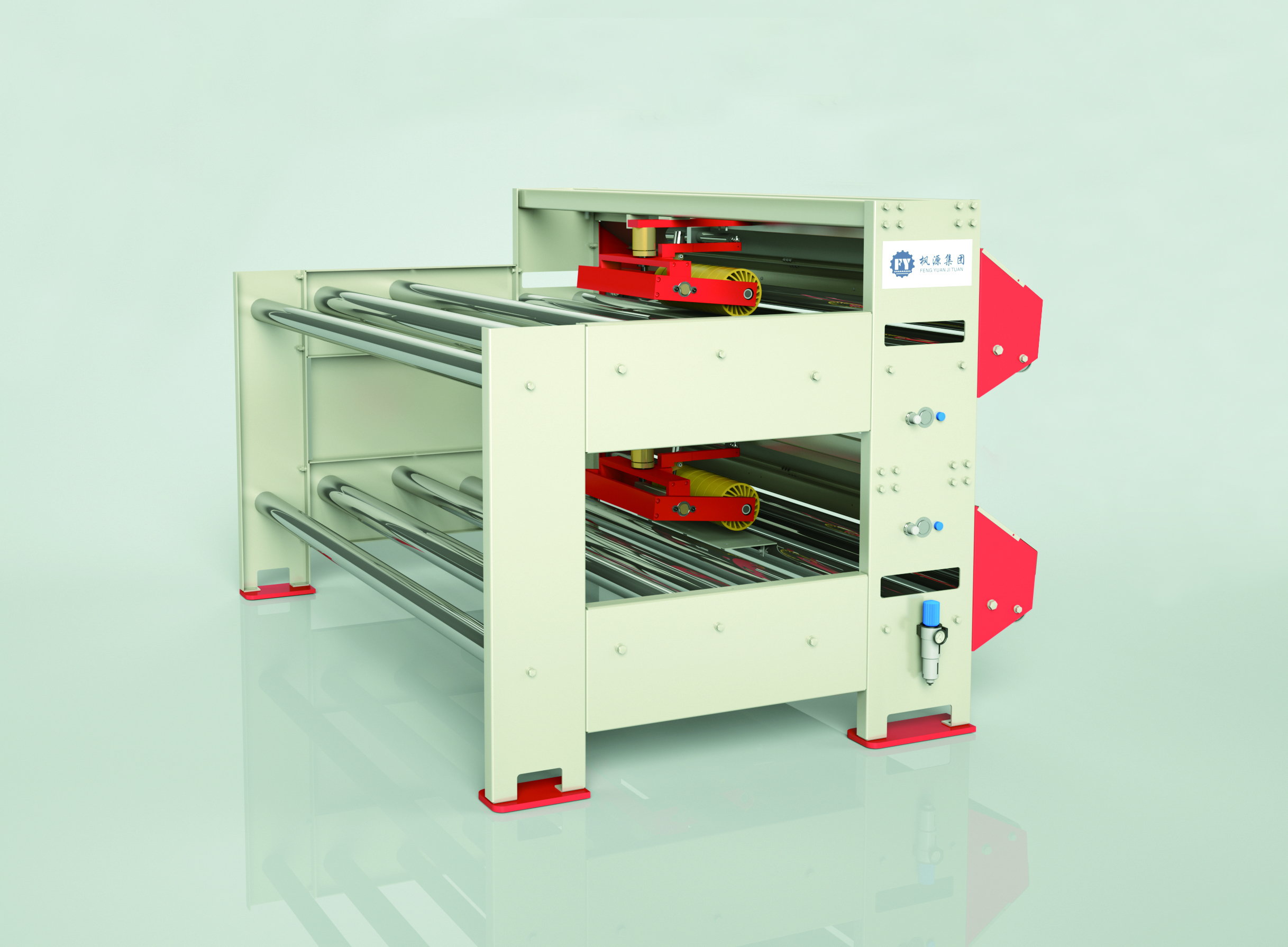

Intelligent Overpass Automatic Alignment System Of Web Edge Guide System
Intelligent Overpass Automatic Alignment System Of Web Edge Guide System
Intelligent Overpass Automatic Alignment System Of Web Edge Guide System
Intelligent Overpass Automatic Alignment System Of Web Edge Guide System
Specifications
Payment Terms :
L/C,D/A,D/P,T/T
Functions :
Intelligent and Visualized Control
Model Number :
Overpass Automatic Alignment System
Resolution of Light Curtain :
1 mm
MOQ :
1 Set
Delivery Time :
30-45 Working Days
Corrugated Cardboard Layers :
3/5/7 Layers
Packaging Details :
Standard Export Wooden Case with Protective Wrapping
Brand Name :
FENGYUAN GROUP
Product Name :
Overpass Automatic Alignment System
Place of Origin :
CHINA
Alignment Range :
+/-50 mm
Price :
Negotiable
Advantage :
Suitable for High-Speed Production
Supply Ability :
Strong production capacity
Warranty :
12 Months
Certification :
CE, ISO9001
Alignment Accuracy :
+/-2 mm
Description
Overpass Automatic Alignment System

Key Features :

Detect the lateral deviation of the corrugated board in real time and automatically adjust its position through an actuator or servo mechanism. Compared with traditional mechanical guides, it provides more continuous and precise alignment.

Main Features:

  • Automatic Detection: Photoelectric or infrared sensors continuously detect the edge or center position of the corrugated board.

  • Automatic Correction: When lateral deviation is detected, the control system automatically activates the correction mechanism to bring the board back to the desired position, reducing the need for manual adjustment.

  • High Alignment Accuracy: Some automatic alignment systems can achieve a guiding accuracy of approximately ±1 mm.

  • Reduced Board Waste: Helps prevent board deviation, collisions with guide plates, edge damage, and inaccurate positioning during downstream processes.

  • Improved Alignment Quality: Keeps the single facer web and liner properly aligned, reducing misalignment during the laminating or bonding process.

  • Stable Web Tension: Some systems integrate web alignment with constant-tension control to help reduce wrinkles, crushed flutes, bursting, and board warping.
