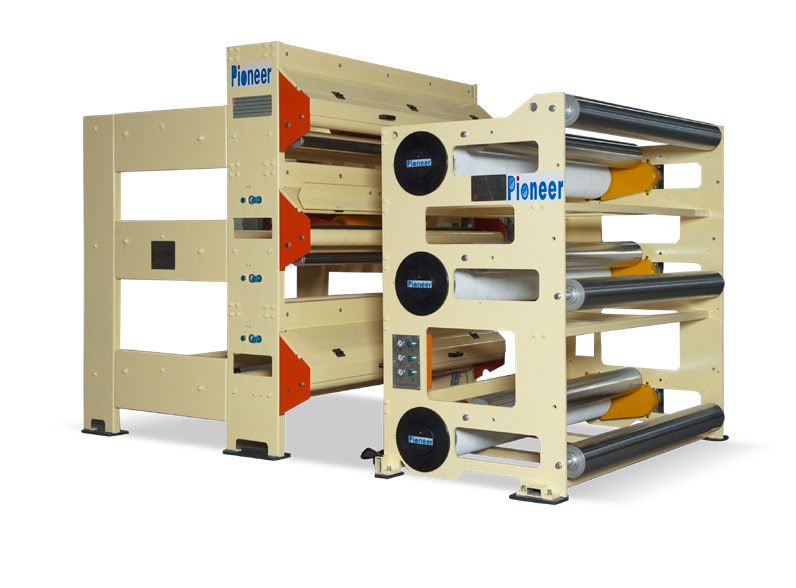

High Precision Whole Line Alignment Overpass Web Guiding System
High Precision Whole Line Alignment Overpass Web Guiding System
Specifications
Material Center :
±1mm
Payment Terms :
L/C,D/A,D/P,T/T
Model :
Non-contact full-width infrared grating electric eye
Place of Origin :
CHINA
Control Type :
Closed-loop tension control
Quality :
High-quality
MOQ :
1 Set
Width Measure :
±2mm
Model Number :
Whole Line Alignment
Delivery Time :
30-45 Working Days
Supply Ability :
Strong production capacity
Control System :
High-precision pneumatic brake
Price :
Negotiable
Brand Name :
FENGYUAN GROUP
Packaging Details :
Standard Export Wooden Case with Protective Wrapping
Certification :
CE, ISO9001
Product Name :
Overpass automatic alignment system+ overpass tension system
Material Type :
Dedicated sun gear and sun gear bottom plate
Description
Whole Line Alignment, Overpass Automatic Alignment System and Over Tension Control System
Performance Benefits
  • Increase the speed, without damage to the edge of the cardboard, reduce paper breakage and dust
  • Install a paper pulling motor to reduce labor intensity and assist the joints of low-weight paper to over-brake
  • Save energy consumption and low noise
  • Improve the quality of cardboard
  • Precise control of material tension: <2% of F max
  • The measurement accuracy of material edge and material center is ±1mm; width measurement is ±2mm
Optional Configuration Options
Configuration Type Components
Open Loop Tension Pneumatic proportional valve + brake
Closed Loop Tension Automatic tension sensor + pneumatic proportional valve + brake
Servo Closed Loop Constant Tension Automatic tension sensor + servo torque
Acceptance Criteria
According to the actual equipment, correct the deviation within the above-mentioned performance range.
