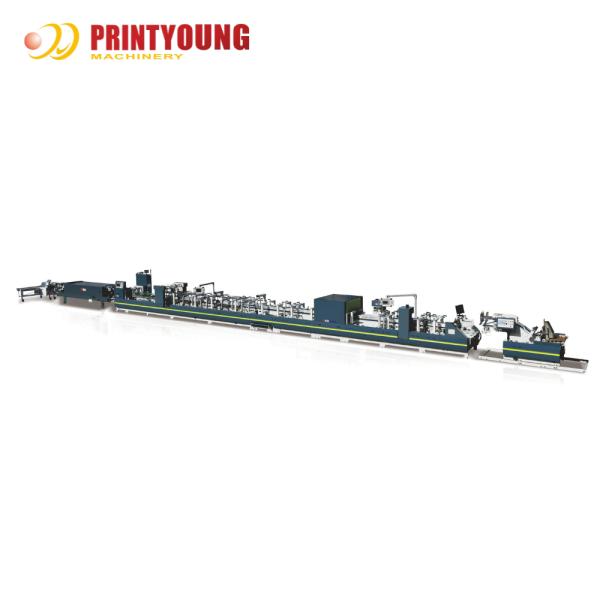

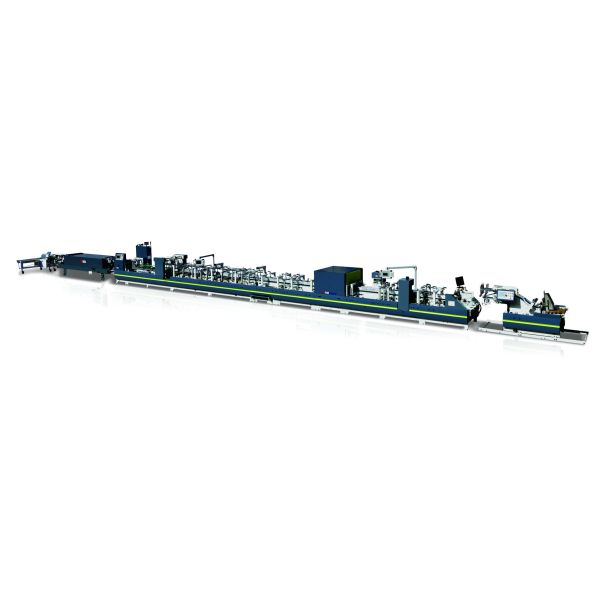

PRY-650I Automatic Paper Box Folder Gluer Machine
PRY-650I Automatic Paper Box Folder Gluer Machine
Specifications
Brand Name :
PRINTYOUNG
Model Number :
PRY-650I
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 26000 Set
Payment Terms :
L/C, T/T
Supply Ability :
10 Sets per Month
Delivery Time :
30 days
Packaging Details :
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Materials :
Cardboard 200 ~ 900 gsm
Max. Speed :
350 m/min
Inching Speed :
20 m/min
Max. Thickness of Folded Box :
12 mm
Blank Width :
800 mm
Electrical Connected Load :
32 kw
Compressed Air :
6 bar
Air Compressor Capacity :
10 m³/h
Air Tank Capacity :
60 L
Machine Dimensions :
13.5 * 2.3 * 1.7 m
Machine Weight :
11000 kg
Machine Steel Body Thickness :
16 mm
Description
PRY-650I Automatic Paper Box Folder Gluer Machine
PRY-650I Automatic Folder Gluer Machine
PRY-650I Automatic Paper Box Folder Gluer Machine
Technical Parameters
Model
PRY-650I
Materials
Cardboard 200 ~ 900 gsm
Max. Speed
350 m/min (Folder Gluer) ; 200 m/min (Braille)
Inching Speed
20 m/min
Max. Thickness of Folded Box
12 mm Blank width 1100 mm
Blank Width
800 mm
Electrical Connected Load
32 kw
Compressed Air
6 bar
Air Compressor Capacity
10 m³/h
Air Tank Capacity
60 L
Machine Dimensions
13.5 * 2.3 * 1.7 m
Machine Weight
11000 kg
Machine Steel Body Thickness
16 mm
PRY-650I Automatic Paper Box Folder Gluer Machine
Max
Min
A
8
12
B+C+D+E
80
650
C+D+E
60
650
F
70
600
G
60
600
D+E
40
300

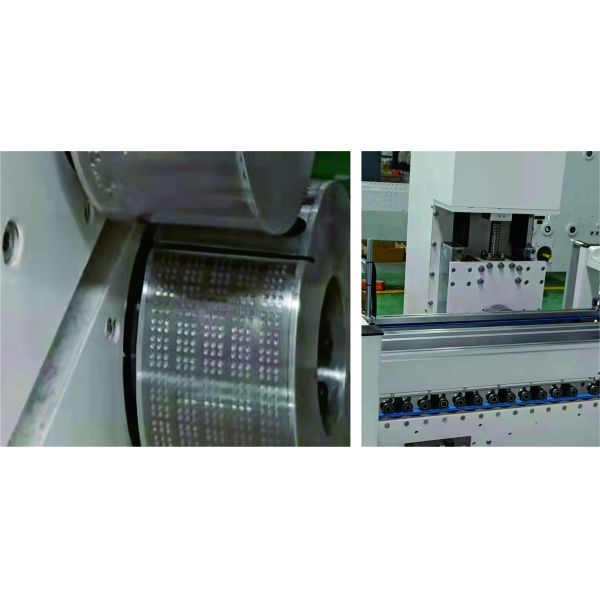

Braille Station(Option)
PRY-650I Automatic Paper Box Folder Gluer Machine PRY-650I Automatic Paper Box Folder Gluer Machine
The BRAILLE is the solution for the rotary embossing of the boxes in folder gluer.To this operation is dedicated a module with can be fir on all the folder gluers,of new and old production.The embossing realized in the folder gluer allows great benefits,including:
* The uniform pressure on every score (“dot”) punched without any delay,sometimes necessary,on die-cutters in order to obtain quality embossing.
* The possibility to emboss without problems also close to the creasing.
* The possibility to vary the embossing pressure depending on gram mage and on cardboard fiber or on the needs of the final consumer.
* The ability to monitor the presence of the embossing of every single box discarding automatically the defective samples without machine stop.
* Braille is the most versatile Braille rotary solution patented on the market to realize the embossing of pharmaceutical boxes in 4 and 5 lines of Braille on single or double layer in folder gluer. * 1 to 5 lines every passing blank box.
PRY-650I Automatic Paper Box Folder Gluer Machine
PRY-650I Automatic Paper Box Folder Gluer Machine
PRY-650I Automatic Paper Box Folder Gluer Machine
PRY-650I Automatic Paper Box Folder Gluer Machine
PRY-650I Automatic Paper Box Folder Gluer Machine
PRY-650I Automatic Paper Box Folder Gluer Machine
PRY-650I Automatic Paper Box Folder Gluer Machine
