Paperboard Crash Lock Bottom Folder Gluer Machine Multifunctional 220m/Min
Paperboard Crash Lock Bottom Folder Gluer Machine Multifunctional 220m/Min
Paperboard Crash Lock Bottom Folder Gluer Machine Multifunctional 220m/Min
Paperboard Crash Lock Bottom Folder Gluer Machine Multifunctional 220m/Min
Paperboard Crash Lock Bottom Folder Gluer Machine Multifunctional 220m/Min
Paperboard Crash Lock Bottom Folder Gluer Machine Multifunctional 220m/Min
Paperboard Crash Lock Bottom Folder Gluer Machine Multifunctional 220m/Min
Paperboard Crash Lock Bottom Folder Gluer Machine Multifunctional 220m/Min
Paperboard Crash Lock Bottom Folder Gluer Machine Multifunctional 220m/Min
Paperboard Crash Lock Bottom Folder Gluer Machine Multifunctional 220m/Min
Specifications
Brand Name :
PRINTYOUNG
Model Number :
ZH800G
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
US 20000 Set
Payment Terms :
L/C, T/T
Supply Ability :
10 Set/Sets per Month
Delivery Time :
30 days
Packaging Details :
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
220V
Dimension :
8000*900*1300(mm)
Weight :
1110KG
Warranty :
1 Year
Line speed :
220m/min adjustable
Paperboard :
210-600gsm paperboard
Gluing :
Cold glue
Power :
2.2Kw AC220V
Auto Counting Range :
0-999999 No. with batching facility
Description

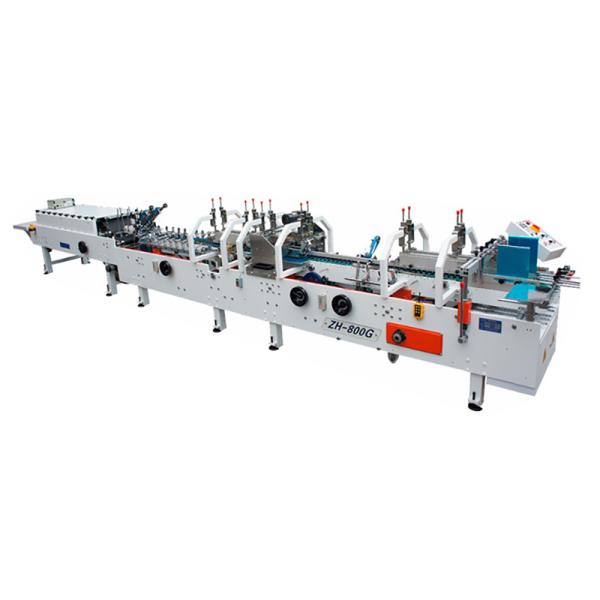

PRY-ZH-800G Fold Gluer Machine
Paperboard Crash Lock Bottom Folder Gluer Machine Multifunctional 220m/Min
Features
PRY-ZH-800G/880G/1000G is the most competitive folder gluer with crash lock bottom through our company independent research. It has two National Patents. Its easy operation, reasonable price and wide application make it a new leap forward in the history of folder gluer. It combines a variety of folder gluer functions: straight line box, pre-fold box, crash lock bottom box. Our machine is featured by multi-function, wide application, easy operation and lower price. Compared to older generation folder gluer, our machines simplify the complicated construction, reduce the difficulty of test run and decrease the machine's cost. Especially for the current packaging and printing industry, it brings new hope to the weak point of folder gluer industry: shorter delivery time, constricted function, more competitive price. It is ideal equipment in printing industry.
Technical Parameters
PRY-ZH-800G fold gluer machine
Model No.
PRY-ZH-800G
Line speed
0220m/min adjustable
Paperboard
210-600gsm paperboard
Gluing
Cold glue
Box forming Fold from either side Gluing
our stations, 2 upper stations, 2 lower stations. Each lower station has a grinding wheel for cleaning UV varnish and ink off the flap before gluing.
Power
2.2Kw AC220V
Weight
1110KG/1300KG
Dimension
8000*900*1300(mm)
Auto Counting Range
0-999999 No. with batching facility
Configuration

1. Electric cabinet

2.Paper feeding unit

3.Up and down adjusting for paper going through from one unit to another unit

4.Prepare to fold

Applications
It is widely used in processing medicine box, Wine box, Cosmetics box and Electric appliances packing box(Fried chips box need optional spare parts.

Q1: Are you a manufacturer or a trading company?

A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 10-20 days.

Q4. What is the delivery time?

A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.

Q9. How can you assure the machines’ quality?

A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?

A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material

Q11. What’s the payment term?

A: T/T 50% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?

A: Warmly welcome for your visiting.

Q13. How many years are you in printing field?

A: Shanghai company is 12 years old, the factory is more than 20years.

Q14. How many clients do you have?

A: We have sold our machines to about 60 countries. We have agents in South Africa, Morocco and Italy.
