Specifications
Brand Name :
PRINTYOUNG
Model Number :
ZH-600G 700G 800G
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD 11500 ~ 14000 Set
Payment Terms :
L/C, T/T
Supply Ability :
30 Sets per Month
Delivery Time :
15 work days
Model :
ZH-600G 700G 800G
Paper Material :
210 ~ 600 g/m² paperboard
Max. Liner Speed :
300 m/min continuous adjustment
Feeding Way :
automatic feeding
Way of Folding :
side gluing , pre-folding , crash lock bottom
Glue Material :
cold glue
Electric Power :
9kw AC 3PH 380V
Weight :
1600kg 1700kg 1900 kg
Over Dimension :
8*1*1.3m , 8*1.1*1.3m , 9.5*1.2*1.3m
Description
ZH-600G 700G 800G Automatic Feeding Folder Gluer Box Forming Machine with Crash Lock Bottom
ZH-600G Folder Gluer with Crash Lock Bottom
ZH-600G 700G 800G Automatic Feeding Folder Gluer Box Forming Machine with Crash Lock Bottom
ZH-600G 700G 800G Automatic Feeding Folder Gluer Box Forming Machine with Crash Lock Bottom
Features
ZH-600G is our most competitive folder gluer with crash lock bottom which developed by ourselves.It has two National Patents.Its easy operation,reasonable price and wide application make it a new leap forward in the history of folder gluer.It combines a variety of folder gluer functions:straight line box,pre-fold box,crash lock bottom box.Our machine is featured by multi-function,wide application,easy operation and competitive price.Compared to older generation folder gluer,our machines simplify the complicated construction,reduce the difficulty of test run and reduce the cost.Especially for the current packaging and printing industry with tough competition,it can help to shorter delivery time and recover your invest easily.It is ideal equipment in printing industry.
Technical Parameters
Model
ZH-600G
 ZH-700G ZH-800G
Paper Material
210 ~ 600 g/m² paperboard
Max. Liner Speed
0 ~ 300 m/min continuous adjustment
Feeding Way
automatic feeding
Way of Folding
side gluing , pre-folding , crash lock bottom
Glue Material
cold glue
Electric Power
9kw AC 3PH 380V
Weight
1600 kg
 1700 kg 1900 kg
Over Dimension
8 * 1 * 1.3 m
 8 * 1.1 * 1.3 m 9.5 * 1.2 * 1.3 m
ZH-600G 700G 800G Automatic Feeding Folder Gluer Box Forming Machine with Crash Lock BottomZH-600G 700G 800G Automatic Feeding Folder Gluer Box Forming Machine with Crash Lock Bottom
Model Box type A B C(min) D (min)
ZH-600G Straight-line box 110 ~ 600 mm 60 ~ 500 mm 50 mm 10 mm
Pre-fold box 170 ~ 500 mm 60 ~ 500 mm 80 mm 10 mm
Crash lockbottom box 180 ~ 500 mm 100 ~ 500 mm 80 mm 40 mm
ZH-700G Straight-line box 110 ~ 700 mm 60 ~ 500 mm 50 mm 10 mm
Pre-fold box 170 ~ 600 mm 60 ~ 500 mm 80 mm 10 mm
Crash lockbottom box 180 ~ 600 mm 100 ~ 500 mm 80 mm 40 mm
ZH-800G Straight-line box 130 ~ 800 mm 60 ~ 700 mm 60 mm 10 mm
Pre-fold box 170 ~ 700 mm 60 ~ 700 mm 80 mm 10 mm
Crash lockbottom box 180 ~ 700 mm 100 ~ 700 mm 90 mm 50 mm
ZH-600G 700G 800G Automatic Feeding Folder Gluer Box Forming Machine with Crash Lock Bottom
ZH-600G 700G 800G Automatic Feeding Folder Gluer Box Forming Machine with Crash Lock Bottom
Configuration
ZH-600G 700G 800G Automatic Feeding Folder Gluer Box Forming Machine with Crash Lock Bottom

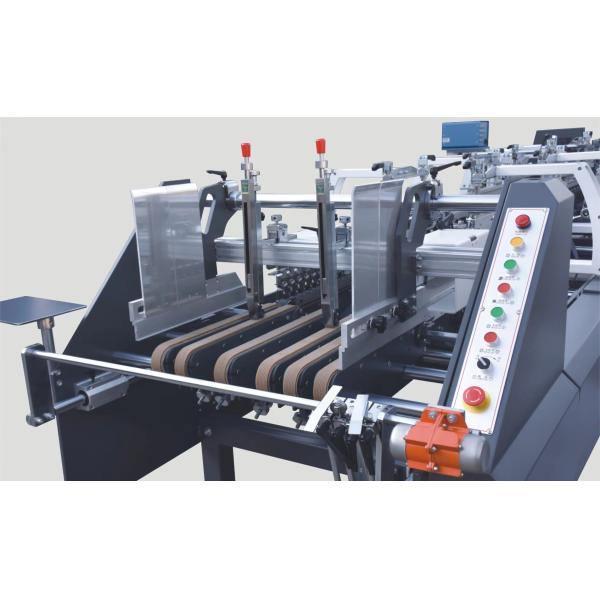

Paper Feeding Section

Equipped with 2 output knives,adjust the asymmetric length according to the actual sample.The embossing power guide wheel guides the paper output belt,and there are baffles on the left and right sides,which can be moved left and right according to the product style.The vibrating device cooperates with the motor to feed paper quickly,easily and continuously automatically.

Lower Gluing Tank

Lower gluing tank is large volume.Easy to remove and clean.
ZH-600G 700G 800G Automatic Feeding Folder Gluer Box Forming Machine with Crash Lock Bottom

Paste Cylinder

The upper paste cylinder is used to glue the crash lockbottom bottom box.

Folding and Closing

The Second and fourth folding line 180°.Folding and closing section transmit from right and left side,the belt speed can be adjusted separately and correct the way of box running to ensure straightly delivery.
ZH-600G 700G 800G Automatic Feeding Folder Gluer Box Forming Machine with Crash Lock Bottom

Transmission

Equipped with special additional sponge belt for the press of boxes valley part.Upper section moves back and forward,allowing for different box length.

Synchronous Belt & Synchronous Wheel

The most efficient mechanical power transmission method currently on the market.Reduce noise,reduce wear,and efficient power transmission system.
ZH-600G 700G 800G Automatic Feeding Folder Gluer Box Forming Machine with Crash Lock Bottom

Aviation Connector

Easy to install and transport.

Independent Electrical Box

The independent structure reduces the interference of the mechanical structure to the electrical system,and it is beautiful and atmospheric.
ZH-600G 700G 800G Automatic Feeding Folder Gluer Box Forming Machine with Crash Lock Bottom
Main Box Samples
ZH-600G 700G 800G Automatic Feeding Folder Gluer Box Forming Machine with Crash Lock Bottom
Ordinary Box Pre-fold Box Crash Lock Bottom Box Special Box
